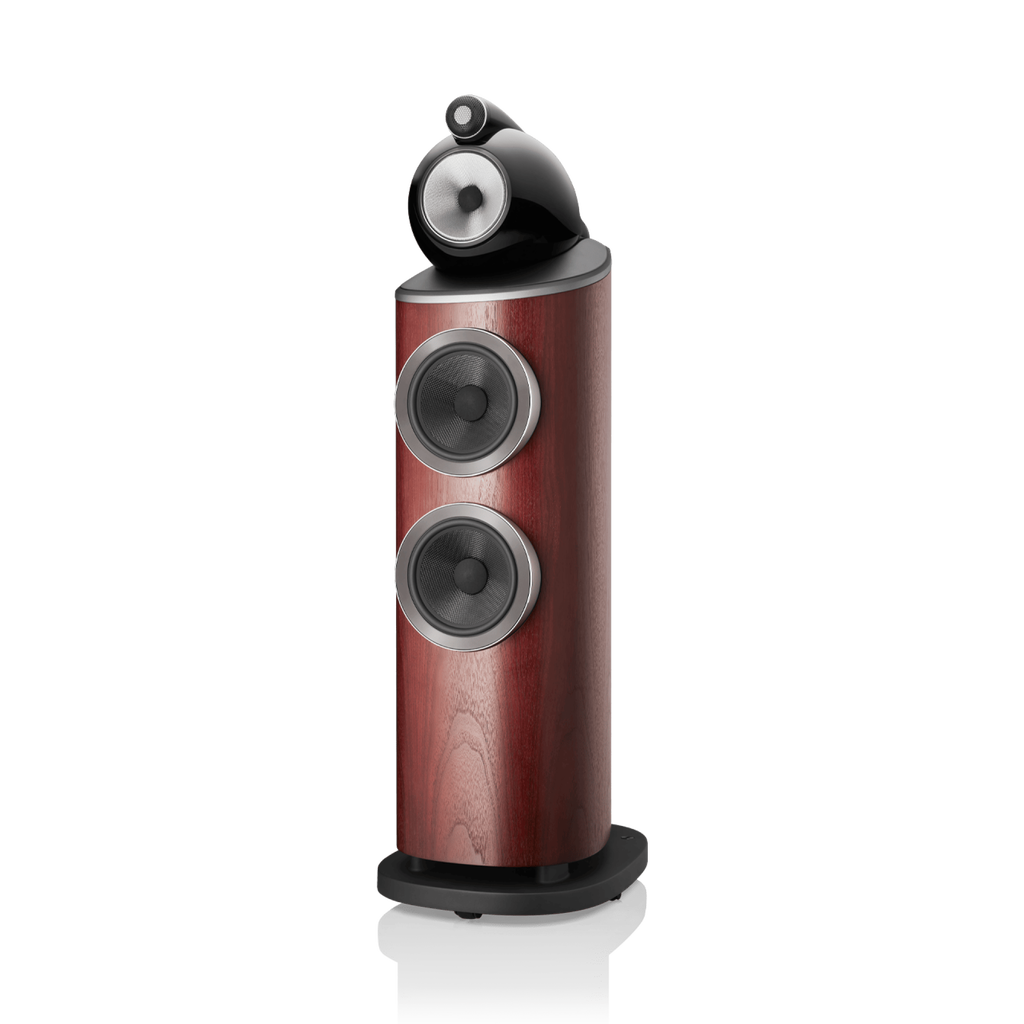

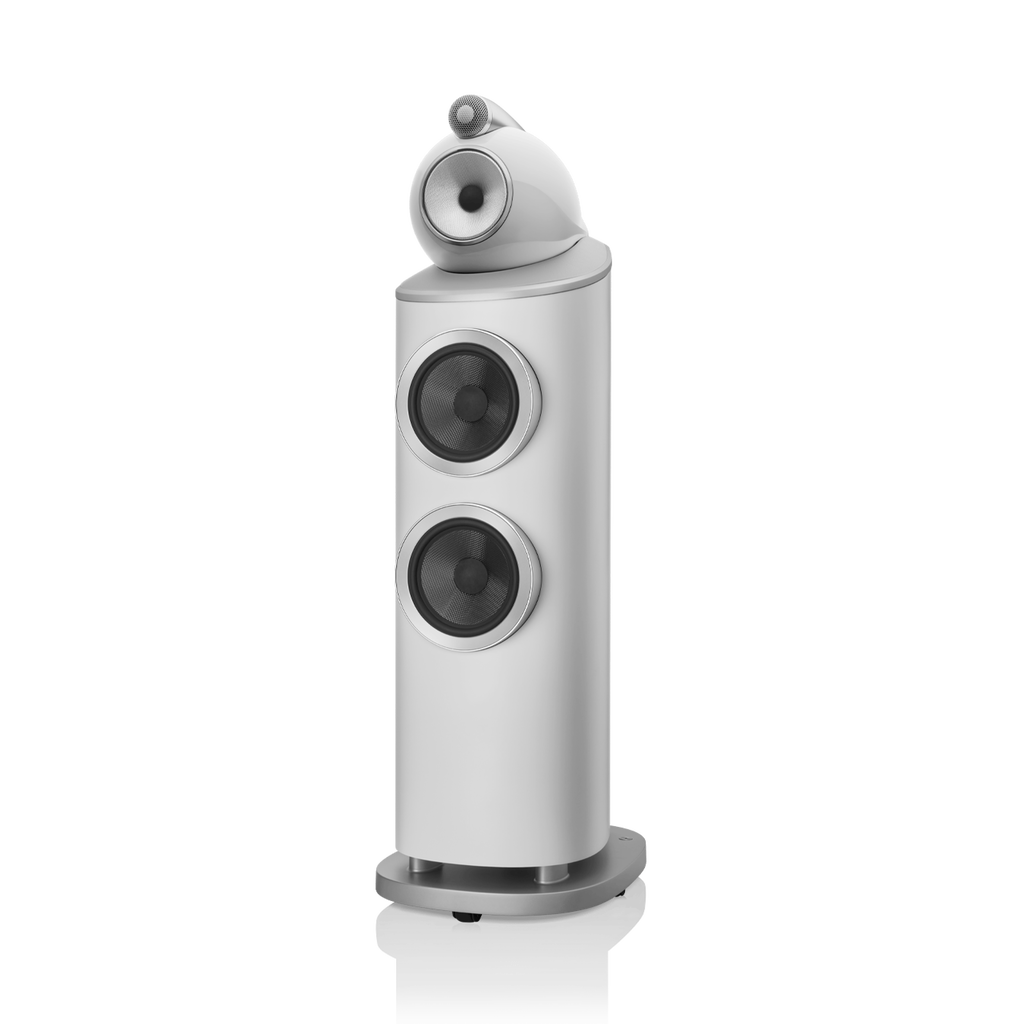

803 D4
Their most compact headed model brings all the technical advantages of a dedicated midrange enclosure – the Turbine™ Head, with its decoupled midrange cone – to a smaller footprint that’s easily accommodated in any home.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£4,300.00 initial 20% deposit then £573.33 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
Available pre-owned. One ex-display example is in stock at £14,995.
Save £6,505
See the pre-owned oneSmall wonder
803 D4 may be notably more compact than the 801 D4 or 802 D4, but it still bristles with technical innovation, most obviously in its use of a three-box construction. Its 130mm (5-in) midrange cone is carefully isolated from the impact of its bass cones thanks to its Turbine Head enclosure.
Reverse Wrap cabinet
Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.
Enhanced Matrix™
Matrix bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. The Matrix assembly in 803 D4 is our best yet, ensuring optimum scale, power and intelligibility.
Aluminium bass pods
803 D4 mounts two Aerofoil™ bass cones in twin solid aluminium bass pods, each of which is clamped into an aluminium plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.
The science of sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.
| Technical features | Diamond tweeter Solid body Tweeter-on-Top Continuum™ cone FST Matrix™ Anti-Resonance plug Biomimetic Suspension Turbine™ Head Aerofoil™ cone bass units Flowport |
|---|---|
| Drive units | 1x ø25mm (1in) Diamond dome high-frequency 1x ø130mm (5in) Continuum cone FST midrange 2x ø180mm (7in) Aerofoil cone bass units |
| Frequency range | 16Hz to 35kHz |
| Frequency response | 19Hz to 28kHz (+/-3dB from reference axis) |
| Sensitivity | 90dB (on axis at 2.83Vrms at 1m) |
| Dimensions | Height: 1165mm (45.9 in) Width: 357mm (14.1 in) Depth: 511mm (20.1 in) |
| Weight | 62.15kg (137 lb) |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
