Pre5
The Bel Canto Pre5 uses a fully balanced internal architecture with discrete, high-current output buffers, forming an analogue preamplifier for a precise, dynamic signal connection to the power amplifier. Its 125dB dynamic range preserves recorded information, while distortion below 0.001% and independently buffered XLR and RCA outputs support low-noise operation.
The Pre5 preamplifier features a fully balanced internal architecture with discrete, high-current output buffers. This design provides low distortion and noise, while retaining dynamic resolution, impact and musical presence.
125dB dynamic range preserves recorded information
Distortion below 0.001%
Discrete, high-current custom output buffers
Fully balanced internal architecture for low noise and distortion

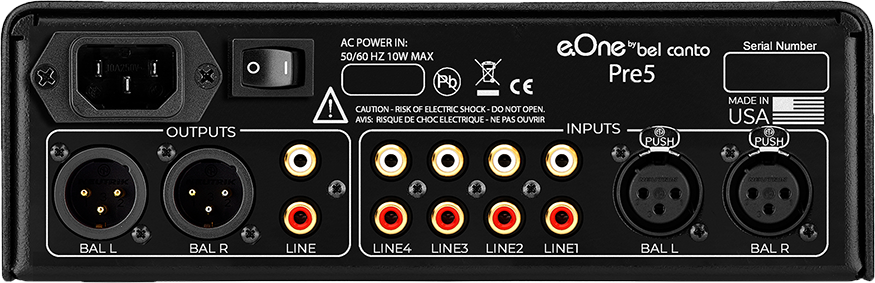

XLR and 4 high-quality RCA inputs
Independently buffered XLR and RCA outputs
Remote control
Available with a silver or black faceplate
| Balanced Input Impedance: | 10k Ohms |
|---|---|
| Single-ended Line Input Impedance: | 50k Ohms |
| Maximum Input Level Balanced: | 5Vrms |
| Maximum Input Level Single Ended: | 2.5Vrms |
| Maximum Output Level, RCA and XLR | 5Vrms |
| Distortion at 1Vrms Output: | |
| Dynamic Range: | 125dB A-Weighted re: 5Vrms |
| Single-ended Line Out Impedance: | 50 Ohms |
| Balanced Output Impedance: | 100 Ohms |
| General: | |
| Output Connections: | XLR and RCA Outputs |
| Power Usage On: | 4W |
| Power Usage Off: | 0.0W |
| Power Input: | 100-120VAC, 220-240VAC 50/60 Hz |
| Fuse | Littlefuse 214 Series, 3 ampere, time-lag, 250VAC, 5x20mm ceramic body fuse |
| Dimensions: | 8.5" W x 12" D x 3.5" H (216 mm x 305 mm x 88 mm) |
| Weight: | 13lbs. (6.5 kg) |
| Delivery | Free UK delivery, fully insured |
|---|---|
| Returns | 14-day returns on unopened accessories |
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
| Payment | Apple Pay, Google Pay and all major cards |
