MI347
The McIntosh MI347 centres on 7-channel digital amplification, delivering 250 watts at 8 Ohms or 300 watts at 4 Ohms to the front and centre channels, with 125 watts or 200 watts for surround and ceiling speakers. This allocation gives listeners dedicated power for dialogue, effects and surround playback.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£1,698.00 initial 20% deposit then £226.40 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.

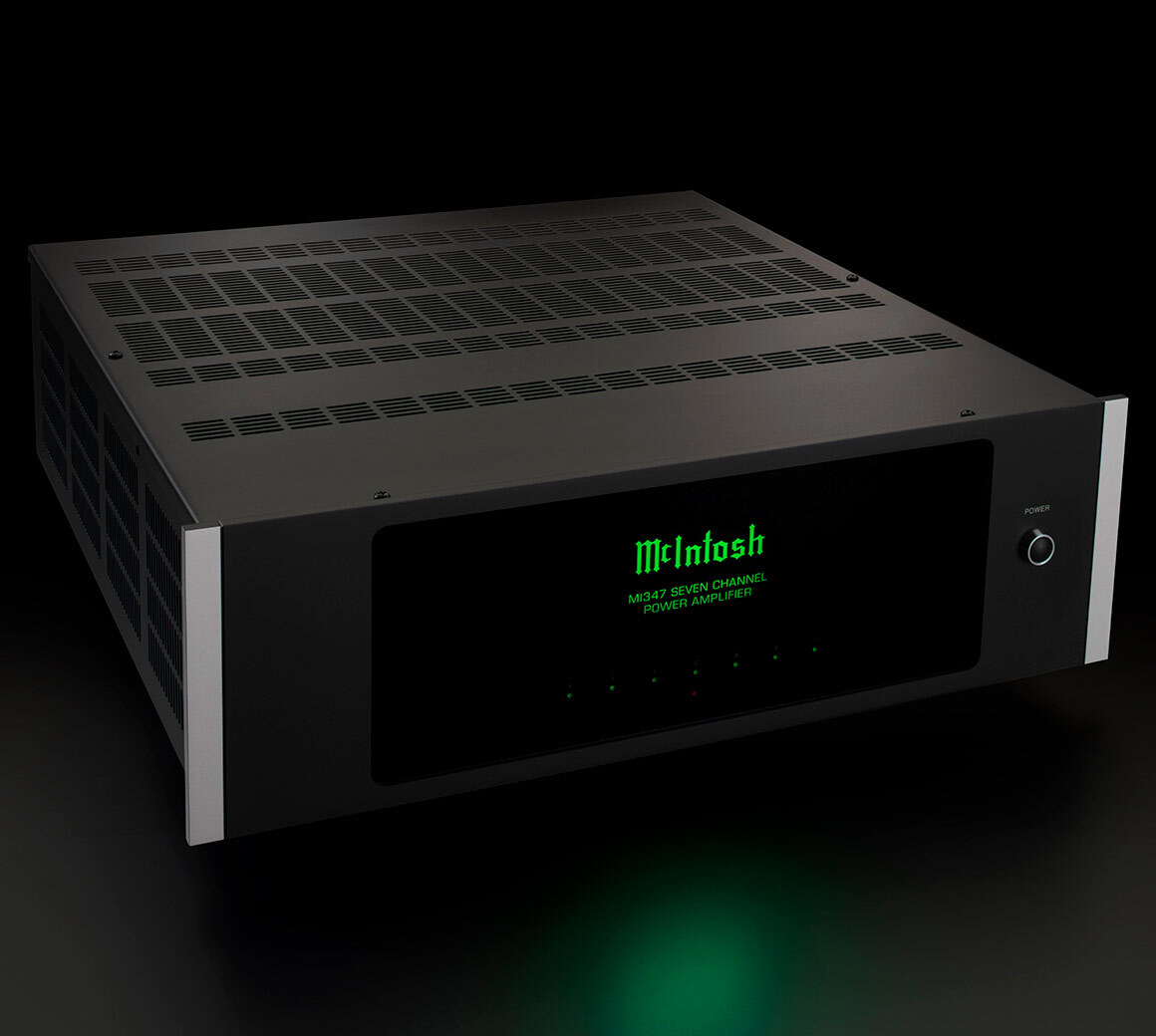

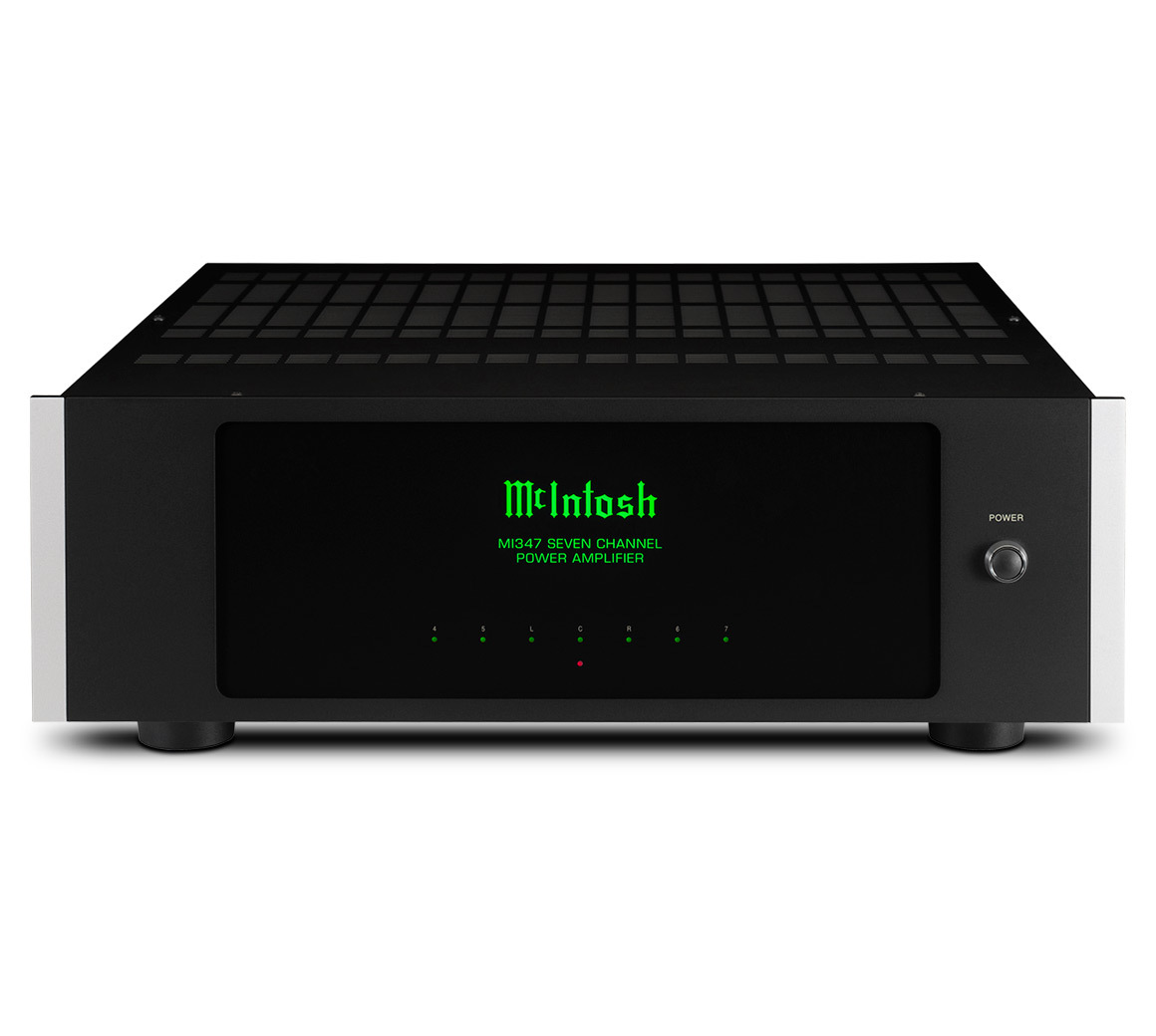

The McIntosh MI347 is a 7-channel digital amplifier for home theatre systems. It uses closed-loop digital switching amplifier circuits with robust power supplies, and is designed to work with McIntosh home theatre AV processors including the MX123, MX170 and rack-mountable MX100.
The 3 front channels, for the front left, front right and centre speakers, deliver 250 Watts at 8 Ohms or 300 Watts at 4 Ohms per channel. These channels handle much of the dialogue and the loudest, most prominent special effects. The 4 remaining channels provide 125 Watts at 8 Ohms or 200 Watts at 4 Ohms per channel for surround sound or ceiling speakers.

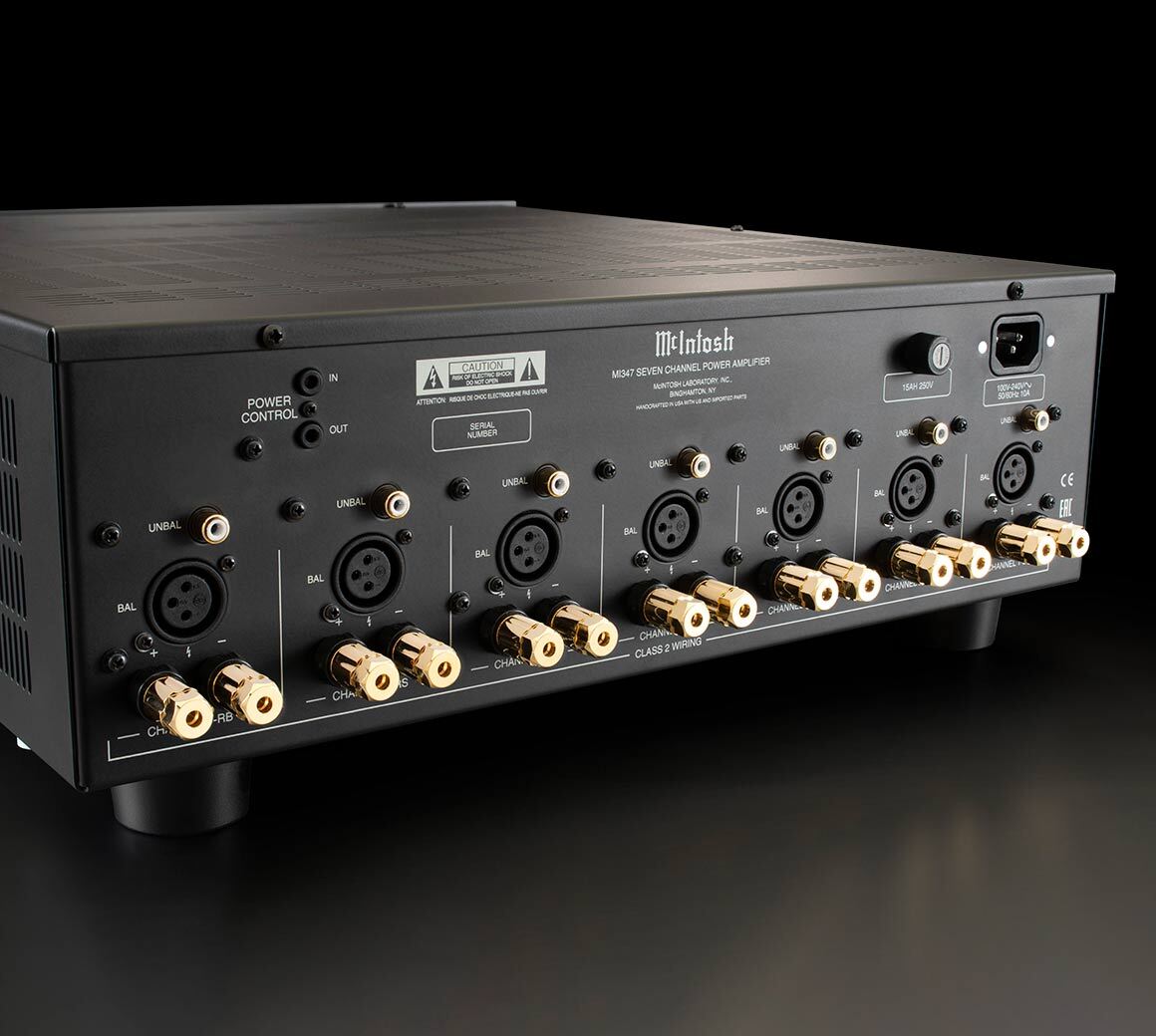

As a Class D amplifier, the MI347 does not require cooling fans to maintain its nominal operating temperature. Cooling vents on the top and sides assist with heat dissipation, while multi-colour LED indicators on the front panel show the status of each channel. Each channel has balanced and unbalanced inputs on the rear panel, along with standard 5-way speaker binding posts.
The understated exterior is intended for installation in an out-of-sight AV equipment rack, although the amplifier can also be placed in an open installation. Its rack-friendly 3U height allows straightforward fitting with the included rack mounting brackets. These brackets can be removed for non-rack installations.
For home theatre systems with more than 7 audio channels, including Dolby Atmos or DTS:X configurations, the MI347 can be combined with the rack-mountable McIntosh MI254 4-channel digital amplifier or MI128 8-channel digital amplifier to power the additional speakers.
- Power Guard signal overload technology prevents overdriving and damaging speakers
- Sentry Monitor short-circuit protection disengages the output stage if current approaches unsafe operating levels, then resets automatically when conditions return to normal
- Power Control automatically turns other connected McIntosh components on and off
- Eco-friendly on/off signal sensing switches the unit off after no input signal has been detected for a set amount of time and turns the MI347 on when it detects a signal from the home theatre processor
| Power Output per Channel | 3 Front Channels: 250 Watts into 8 Ohms or 300 Watts into 4 Ohms Surround Channels: 125 Watts into 8 Ohms or 200 Watts into 4 Ohms |
|---|---|
| Total Harmonic Distortion | 0.025% |
| Frequency Response | +0, -0.9dB from 20Hz to 20,000Hz |
| Dimensions (W x H x D) | 17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 6-1/16" (15.4cm) (including feet) x 21" (53.3cm) (including front panel and cables) |
| Weight | 32.5 lbs (14.8 kg) |
| Shipping Weight | 47 lbs (24.4 kg) |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 3 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
