SP3
The Bryston SP3 brings fully discrete, low-noise analogue audio stages to a surround sound processor, with digital processing and HDMI connectivity for current audio and video equipment. It supports 7.1, 6.1 and 5.1 formats, Dolby TrueHD and DTS-HD Master Audio, while balanced XLR and single-ended RCA outputs include a separate Zone 2 feed.
Choose the version to see its price.
Or speak to a specialist, 01202 911886

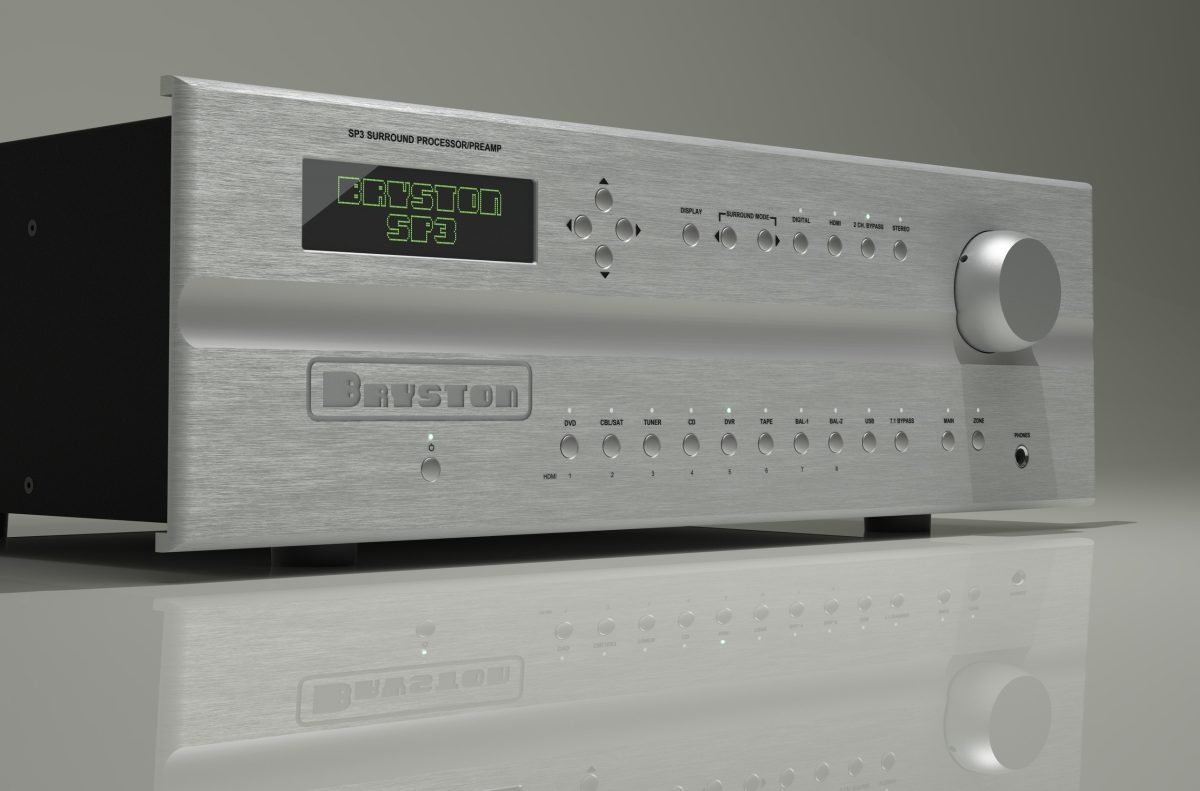

The Bryston SP3 is a surround sound processor combining digital processing with high-precision, low-noise, fully discrete analogue audio amplifier stages. HDMI inputs support integration with current digital audio and video equipment.
Analogue Inputs: 2x XLR balanced pairs, 4x RCA single-ended pairs, RCA single-ended 7.1 surround, 4x RCA single-ended pairs for tape loop and digital video recorder
Digital Inputs: 8x HDMI, 2x AES/EBU XLR, 3x optical TOSLINK, 4x SPDIF RCA, USB 2.0
Analogue Outputs: XLR balanced 7.1 surround, RCA single-ended 7.1 surround and Zone 2, ¼” headphone jack
Digital Outputs: 2x HDMI, optical TOSLINK
Control Inputs: RS-232 DB9, Ethernet RJ-45, AUX IR
Features:
- 7.1, 6.1 and 5.1 surround sound
- Dolby True HD, Digital Plus, Digital EX and Pro Logic IIx
- DTS-HD Master Audio and Dolby Volume
- Class A discrete audio circuits
- Separate digital and analogue power supplies
- Second-zone output via a single-ended pair, allowing audio from a separate source
- RS-232 serial data port for remote control through Crestron, AMX or similar control systems
- Remote control included
Options:
- Silver or black faceplate
- 17” or 19” faceplate, non-rack mountable
- Rack-mountable option
| A/D Conversion: | 24-Bit, 192 kHz Delta-Sigma |
|---|---|
| D/A Conversion: | 24-Bit, up to 192 kHz Delta-Sigma |
| DSP Engine: | TI DA710 |
| Power Supply: | Separate off-line standby PSU plus & main linear power supply with toroidal power transformer utilising multiple regulation stages. |
| Frequency Response: | 20 Hz to 20 kHz +/- 0.25 dB |
| Low Frequency Cutoff: | 0.3 Hz (all speakers channels in Bypass mode) 1.8 Hz (LARGE Speakers and SubWoofer in Analog, Digital or HDMI) 40-200 Hz (variable cutoff point; default 80 Hz) SMALL speakers, except SubWoofer, in Analog, Digital or HDMI) |
| High Frequency Cutoff: | 40-200 Hz (variable cutoff point; default 80 Hz) (SubWoofer in Analog, Digital or HDMI) 22 kHz (all speakers, except SubWoofer, in Analog, Digital or HDMI) 180 kHz(all speaker channels in BYPASS) |
| THD+Noise: | < 0 .006% in DSP modes; < 0.0025% in Bypass mode 20Hz to 20kHz at maximum output level. |
| Signal-to-Noise Ratio: | 105dB in DSP Modes; 110dB in 2ch Bypass Mode; 22 kHz bandwidth, Ref. 1 kHz at max. output |
| Input Level: | 2 Vrms in DSP modes; 4 Vrms in Bypass Mode |
| Input Impedance: | 50 kOhms for single-ended analog audio, 1K Ohms for balanced analog inputs |
| Output Level: | 8 Vrms (16 Vrms Balanced) in DSP Modes; 10 Vrms (20 Vrms Balanced) in Bypass Mode. |
| Output Impedance: | 110 Ohms |
| Bass Management: | 2nd Order HP filter(x5), 4th Order LP filter 40 – 200 Hz Crossover Freq. |
| DATA & CONTROL PORTS: | 1x Infra-Red sensor; remote control receiver 1x Ethernet (RJ45 connector): bilateral data, software download, etc. 1x mini (3mm) phone jack (2 conductor) for auxilliary infra-red control data input |
| Dimensions: | 17”W x 14.25”D (not including knobs & connectors) x 5.75”H (not including rubber feet) 17”W x 15.38”D (including knobs & connectors) x 6.25”H (including rubber feet) |
| Weight: | approx 22 lbs (10 kg) |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 20 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
