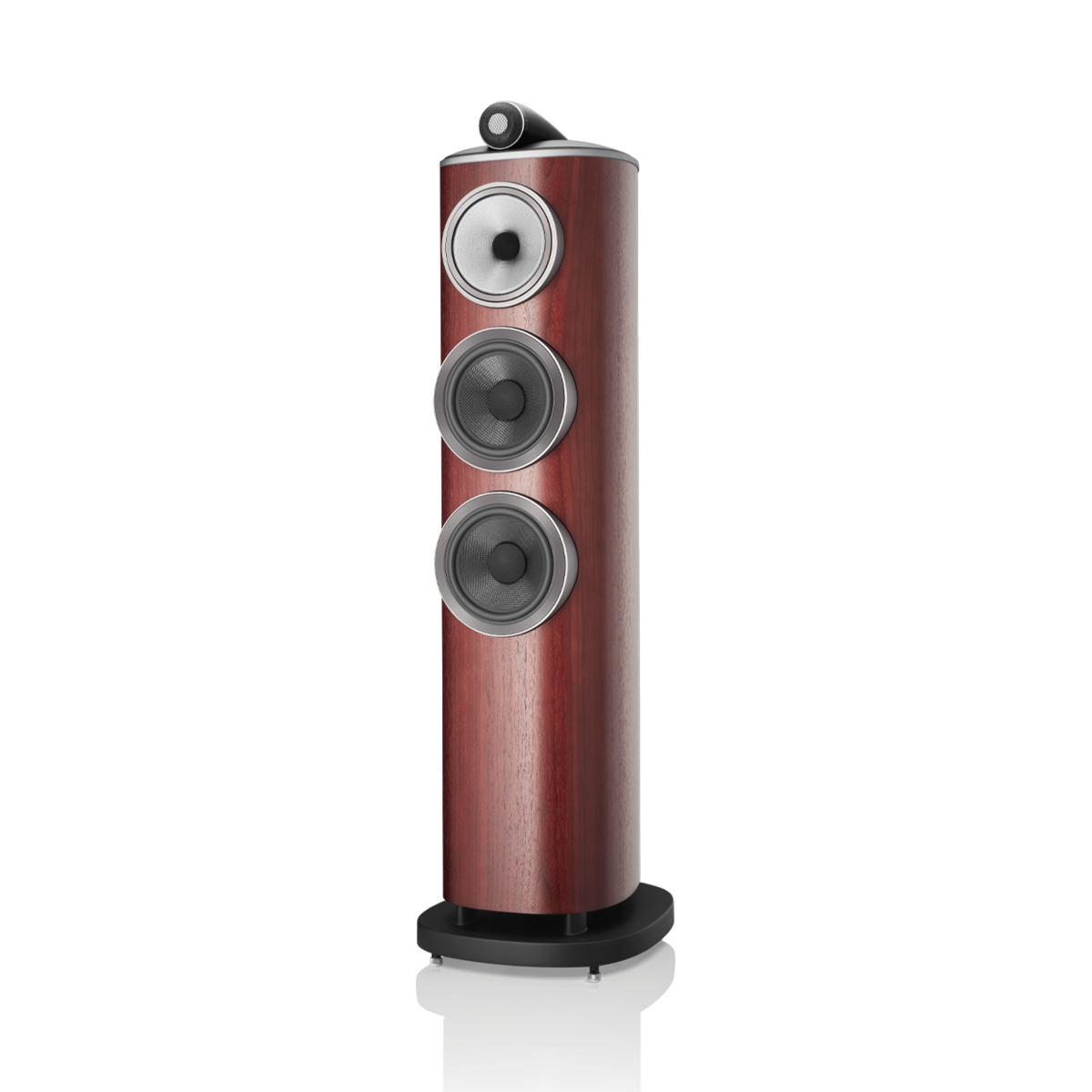

804 D4
For listeners who crave the performance of an 800 Series Diamond floorstander but prefer a more conventional aesthetic, the 804 D4 is the perfect choice.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£2,800.00 initial 20% deposit then £373.33 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
Available pre-owned. One pre-owned example is in stock at £10,495.
Save £3,505
See the pre-owned oneClassic quality
804 D4 is perhaps more conventional in appearance than other floor-standers in the 800 Series Diamond range, but it’s every bit as sophisticated. Its new Reverse-Wrap cabinet is both a mechanical and acoustic revolution in its class, and its new plinth ensures rock-solid, accurate bass response too.
Aluminium top-plate
Every stereo model in the new 800 Series Diamond range has a significantly upgraded cabinet with an all-new aluminium top-plate. This also provides a perfect mounting point for all-new Leather by Connolly trim, with luxurious black leather for dark cabinets and light grey for lighter finishes.
Reverse Wrap cabinet
Instead of a conventional loudspeaker box, the cabinet in 804 D4 is made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.
Aluminium plinth
A great speaker needs a rock-solid foundation. The new 804 D4 uses a downwards-firing Flowport exiting on to a solid aluminium plinth complete with a steel constrained layer damping sheet, which controls unwanted resonance. It also has greatly upgraded spikes for maximum stability and durability.
The science of sound
Innovation is at the heart of everything they do. They question, they examine, they understand and then they evolve. B&W use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.
| Technical features | Diamond tweeter Solid body Tweeter-on-Top Continuum™ cone FST Matrix™ Anti-Resonance plug Biomimetic Suspension Aerofoil™ cone bass units Flowport |
|---|---|
| Drive units | 1x ø25mm (1in) Diamond dome high-frequency 1x ø130mm (5in) Continuum cone FST midrange 2x ø165mm (6.5in) Aerofoil cone bass units |
| Frequency range | 20Hz to 35kHz |
| Frequency response | 24Hz to 28kHz (+/-3dB from reference axis) |
| Sensitivity | 89dB (on axis at 2.83Vrms at 1m) |
| Recommended amplifier power | 50W – 200W into 8Ω on unclipped programme |
| Dimensions | Height: 1071mm (42.2 in) / Width: 306mm (12 in) / Depth: 391mm (15.4 in) |
| Weight | 36.85kg (81.2 lb) |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
