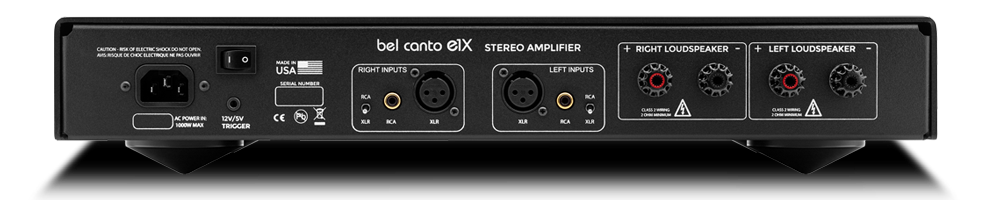

E1X Amplifier
The Bel Canto E1X Amplifier delivers 250W into 8 ohms and 500W into 4 ohms per channel through a discrete SSHC input and output stage with a switch-mode power supply. Its all-aluminium chassis incorporates constrained layer damping, creating an anti-vibration platform for high-power amplification.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£1,350.00 initial 20% deposit then £225.00 per month for 24 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
The E1X combines a discrete SSHC (Single Stage High Current) input amplifier and output stage with a switch-mode power supply, producing 250W into 8 ohms and 500W into 4 ohms per channel. Its high-efficiency design incorporates bespoke technologies and remains ready for high-performance operation. The E1X is designed to drive any loudspeaker with ultra-low noise and high-power amplification, preserving the full musical detail from your source to your loudspeaker.
Class D efficiency eliminates thermal modulation, making the E1X resistant to output-stage bias wander and sonic ghosting. Its output power devices operate as efficient switches, so relatively few devices are required to deliver substantial audio power. The amplifier uses ultra-short signal paths and the minimum number of output devices needed to deliver over 500W of audio power without loss of dynamics, remaining true to the audio source.
| Power Output 1% THD per Channel: | 500W 4 ohms, 250W 8 ohms |
|---|---|
| Minimum Load: | 2 ohms |
| Frequency Response: | +/-3 dB 0Hz-50KHz, all loads |
| THD+N: | 0.002% 1W, 1KHz, 4 ohms |
| Dynamic Range: | 126dB |
| Power On usage: | 44W |
| Size: | 17.75 W x 15.75 D x 3.25 H in, 451 x 400 x 83 mm |
| Weight: | 13 lbs (5.9 kg) |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
