T3x
The Lumin T3x adds a toroidal linear power supply, optical-fibre networking and dual ES9028Pro SABRE DACs operating in dual-mono configuration. Its fibre SFP isolates the network from digital noise, while dual USB ports and processing up to DSD256 and PCM384 support flexible high-resolution playback.
0% Finance Available
Finance example
£899.00 initial 20% deposit then £199.78 per month for 18 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
The LUMIN T3X network music streamer combines the latest LUMIN processing system with a dual-mono DAC stage, an integrated toroidal linear power supply and optical fibre networking. It supports high-resolution playback and streaming services including Roon Ready, Spotify Connect, MQA, TIDAL, TIDAL Connect, Qobuz, TuneIn and AirPlay.
The LUMIN T3X uses dual ES9028Pro SABRE DACs in a dual-mono configuration, with a precision analogue output stage that incorporates LUMIN X1 technology. Dual-mono circuitry is used throughout, with ultra-low noise and high dynamic range.
- Features our latest processing system
- Dual ES9028Pro SABRE DAC featuring dual-mono operation
- New integrated toroidal linear power supply
- Fibre Network provides complete isolation from network digital noise
- Dual-Network interface with built-in Network Switch
- Dual USB ports for additional flexibility and digital audio output
- Upsampling and downsampling to every supported format up to DSD256/PCM384
- Leedh Processing Volume control
- Roon Ready, Spotify Connect, MQA, TIDAL, TIDAL Connect, Qobuz, TuneIn and AirPlay-compatible

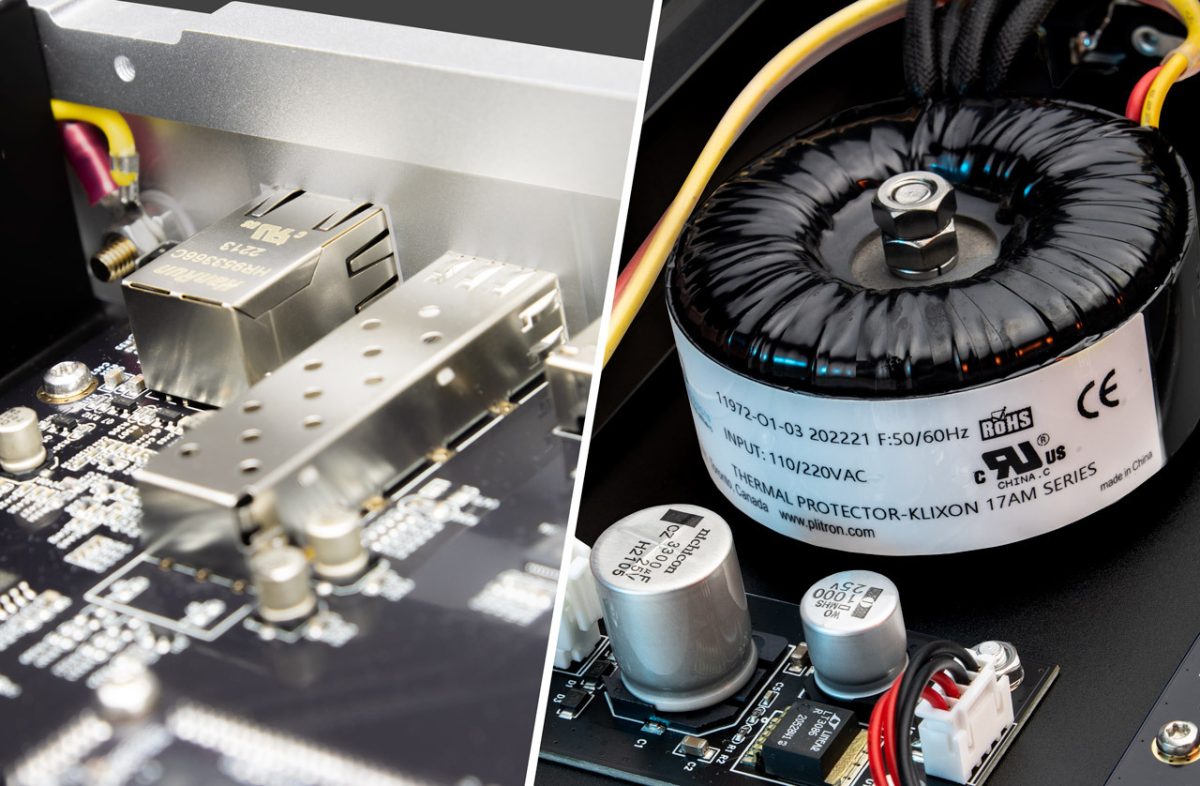

Internal linear power supply
- Internal ultra-low-noise linear power supply
- First LUMIN T-series player with a built in linear power supply
- Ultra-low-noise and high dynamic range
- Extra large toroidal transformer
Optical fibre networking
The dual-network interface includes an SFP fibre connection, which isolates the player from network noise. The fibre connection can be used at the same time as the RJ45 connection, allowing the T3X to operate as a network switch. For example, one connection can be linked to a router and the other to a LUMIN L1, L2 or NAS.
LUMIN processing system
The established LUMIN hardware and software system provides the processing power required for current streaming technologies. Its processing power and storage capacity allow flexible resampling and support for future formats.
Digital and analogue processing
Upsampling and downsampling are available to every supported format, including DSD256 and PCM384. Leedh Processing provides lossless digital volume control for all LUMIN players, using an algorithm designed to eliminate rounding errors at no additional cost.
CNC chassis construction
- The thick CNC panelled construction offers upgraded structural rigidity and shielding compared to the D3
- CNC milling techniques from LUMIN X1 provide the LUMIN family aesthetic
Development from the LUMIN T3
The LUMIN T3X combines the toroidal linear power supply from the U2 with optical fibre networking used in LUMIN flagship players, and adds an extra USB port. It is an upgraded version of the LUMIN T3.
Streaming formats and services
Playback includes MQA, DSD, FLAC and WAV, together with native support for TIDAL, Qobuz, Spotify and AirPlay. These services provide access to 10s of millions of songs. Additional supported services and sources include Roon, KKBox, QQMusic and FLAC radio stations.
The LUMIN App provides the control interface for the player. TINMAN described it as the most convenient interface in existence. LUMIN's continuing development programme has added Roon, MQA and Spotify support, including additions made in 2017.
| DSD Support: | Up to DSD512 22.6MHz, 1-bit |
|---|---|
| PCM Support: | Up to 384kHz, 16–32-bit, Stereo |
| Analog Output Stage: | Dual ESS SABRE32 ES9028Pro DAC chips Fully balanced layout with high-quality components Completely redesigned analogue buffer includes audiograde output capacitor and ultra-low-noise and high dynamic range Discreet clock system for precision timing Precision 32-bit internal digital volume |
| Upsampling rates & bit depths: | DSD256 upsampling option for all files PCM 384kHz upsampling option for all files |
| Digital Output Stage: | USB: Native DSD512 support PCM 44.1–384kHz, 16–32-bit, Stereo BNC SPDIF: PCM 44.1kHz–192kHz, 16–24-bit DSD (DoP, DSD over PCM) 2.8MHz, 1-bit |
| Optical Network: | Industry-standard SFP 1000Base-T Gigabit Ethernet Adapter may be needed for your particular switch/cables Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS) |
| Power Supply: | Internal toroidal linear Low-noise linear regulator Shielded power supply compartment for reduced interference with delicate electronics |
| Dimensions | 350mm (W), 350mm (D), 60.5mm (H), 6kg |
| Delivery | Free UK delivery, fully insured |
|---|---|
| Returns | 14-day returns on unopened accessories |
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
| Payment | Apple Pay, Google Pay and all major cards |
