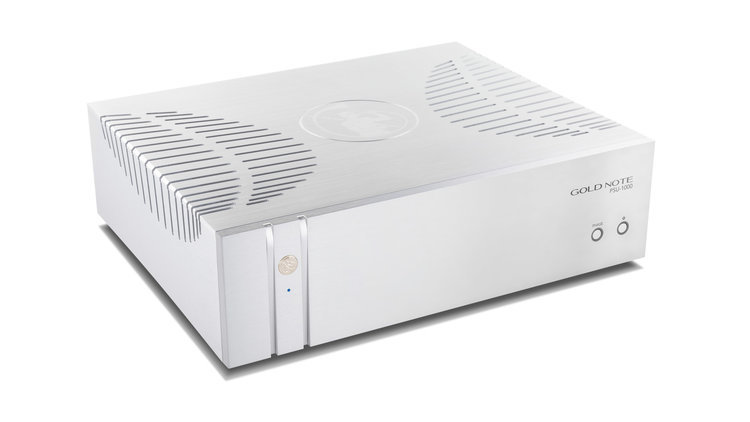

PSU-1000
PSU-1000 has been developed to over drive all 1000 series units, except the amps, to achieve the best resolution.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£720.00 initial 20% deposit then £160.00 per month for 18 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
Powered with Super Inductive Dual Choke hybrid design it features an inductive filter on the analogue stage and a dual choke design controlled by a double inductor driving both the negative and positive high-current stages.

The Dual Choke design - a Gold Note proprietary technology - perfectly filters the signal voltages to eliminate interference and electrical noise from the AC power system.

With its massive 1000 watt overall power supply it is capable of providing a shield from the AC power grid to achieve complete insulation, granting an ideal working environment to let the electronics perform at their best. The massive ultra-clean power thus generated enhances noise reduction, greater dynamic, better resolution and finer details guaranteeing the best realism and musicality.

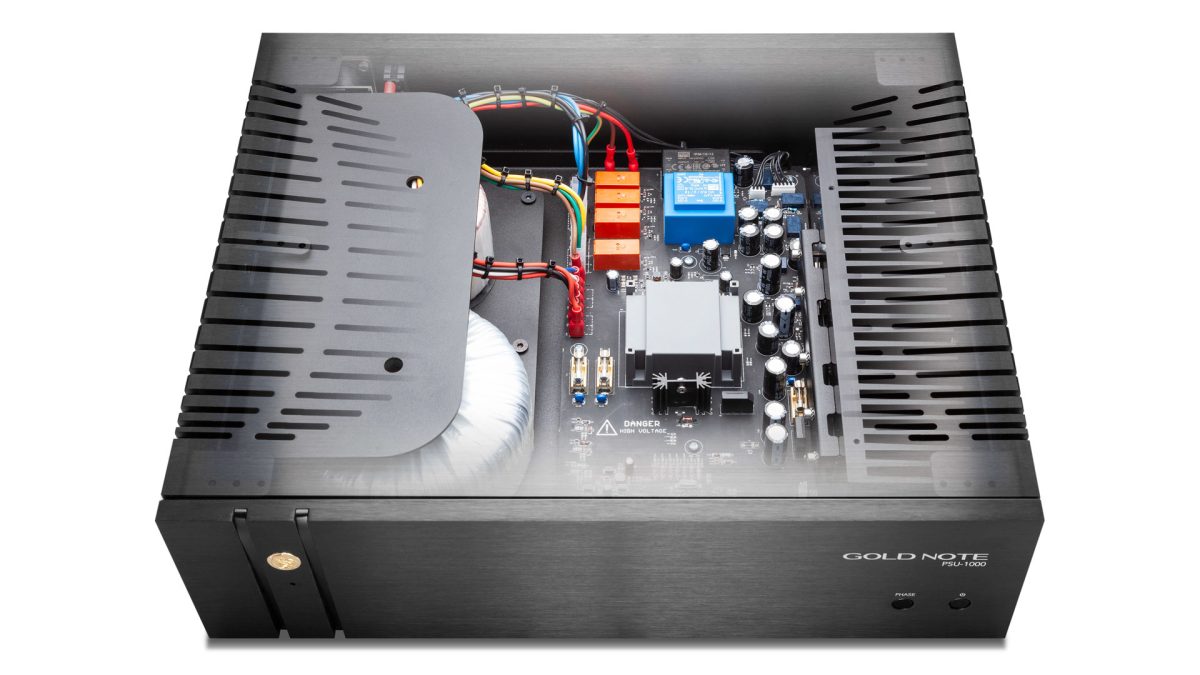

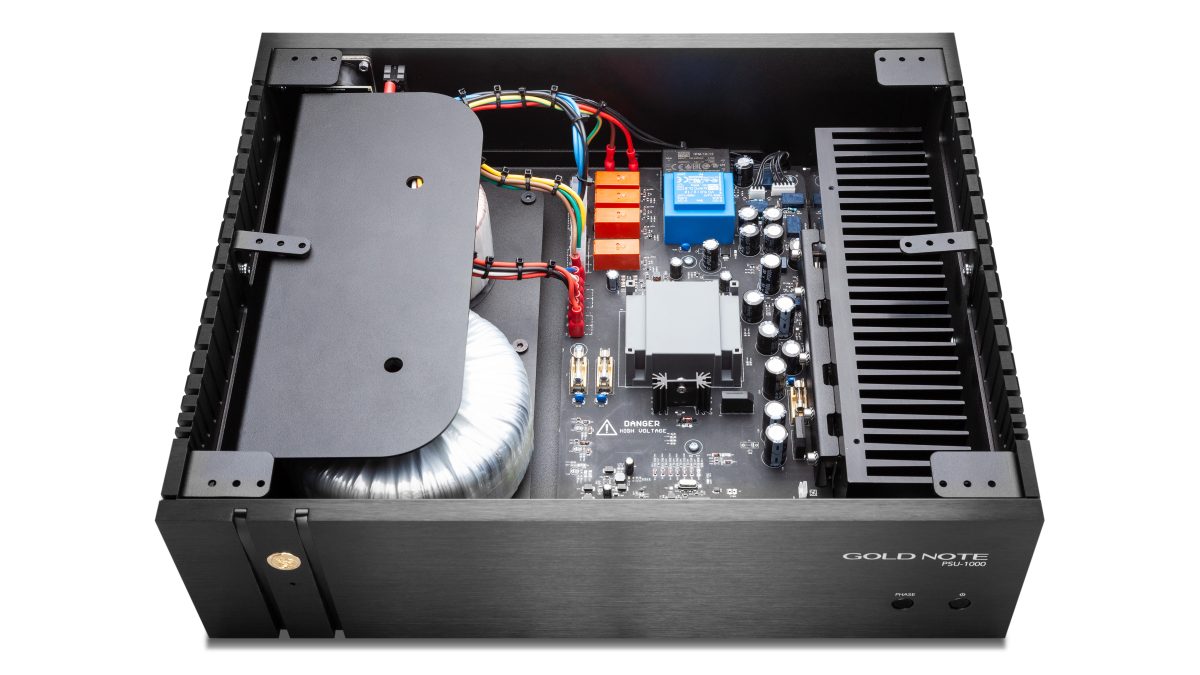

PSU-1000 is powered by 5 transformers: 3 dedicated to the power supply, 1 for the inductive choke filter, 1 for the galvanic insulation of the audio stage.

PSU-1000 can match: CD1000, DS-1000, P-1000 & PH-1000
Seven rail audio grade power supply
Seven low noise voltage regulator
+12V, +8V, +5V for logic
+/- 12V for analogue with inductive noise remover
+/- 28V for analogue with inductive noise remover (only with P-1000)
Line & Load regulation for all outputs: 0,05 %/V
Line noise rejection: >80dB
Common mode noise rejection: >80dB
Full power response time: <2,5uSec
Absolute phase control from front panel
| Total Power Reserve | 1000W |
|---|---|
| Power Absorption | 100W |
| Dynamic power | >200W |
| Stand by power | |
| DIMENSIONS | 425mm L | 110mm H | 360mm D |
| WEIGHT | 20 Kg |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 1 year warranty |
