PA-10 EVO

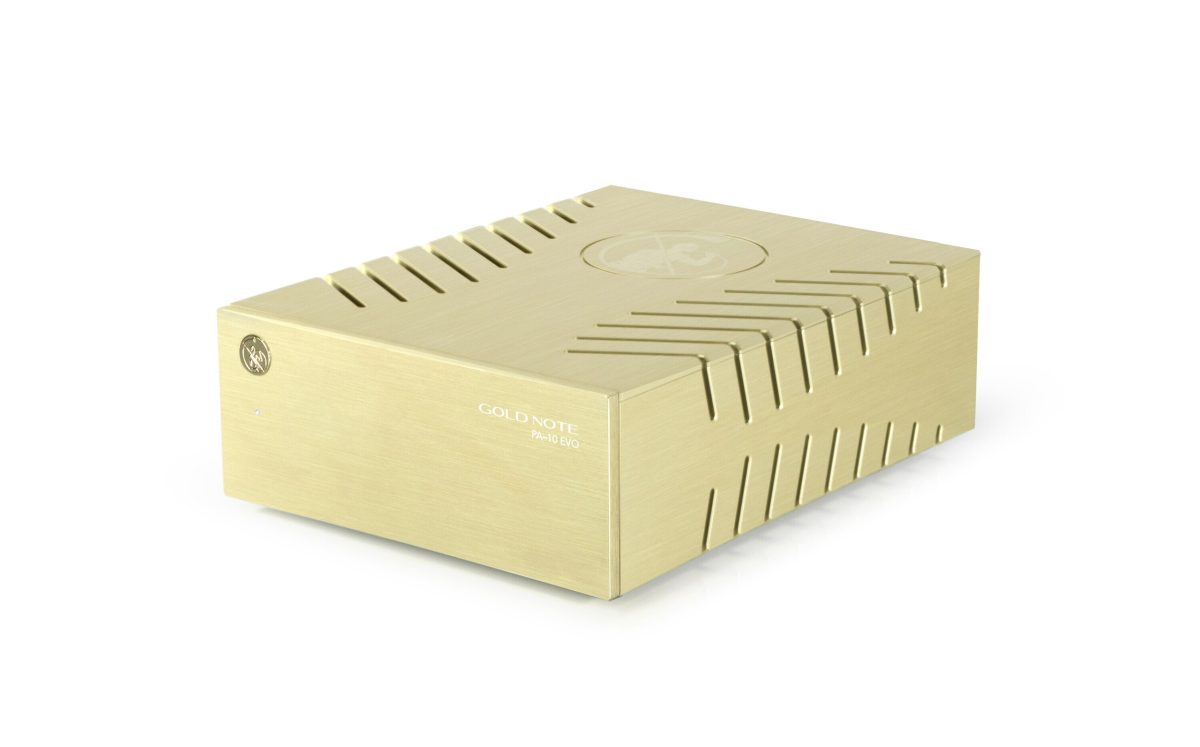

The new PA-10 EVO is a compact and versatile power amplifier, fully balanced and with high-power output, designed for modern High-End audio systems.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£340.00 initial 20% deposit then £113.33 per month for 12 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
Compact and powerful: our new Mono/Stereo power amplifier
Musically engaging and controlled, capable of driving a wide selection of loudspeakers with power and control.
The PA-10 EVO can be used in Stereo or Mono mode, with two units as monoblocks to get the best audio performance. Carefully designed with select components, meticulously assembled and tested by hand, it features the ultra-solid chassis of the Series 10 in solid aluminium, inspired by the Italian style and our modular philosphy. Despite the size, the PA-10 EVO is extremely capable and efficient, delivering up to 140W in Stereo (8Ω) and up to 280W in Mono (8Ω).
Thanks to the adjustable damping factor, the amp can be perfectly matched with any loudspeakers – 3-way floor-standing designs as well as mini-monitors. Featuring both balanced and unbalanced inputs, it can be connected to all sorts of sources and thanks to the GN Link technology, the amp can be easily switched ON/OFF from the source in master-slave mode.
Paired with the DS-10 EVO and the A3 EVO II (or A6 EVO II) loudspeakers, the PA-10 EVO is the ideal power amplifier for a contemporary, compact high-performance system.
| POWER OUTPUT(THD 1%) | 2x 140W @ 8Ω / 4Ω (Stereo) / 1x 280W @ 8Ω / 4Ω (Mono) |
|---|---|
| FREQUENCY RESPONSE | 5Hz-50kHz (@ -3dB) |
| TOTAL HARMONIC DISTORTION (THD) | 0,01% (1kHz @ 1W) |

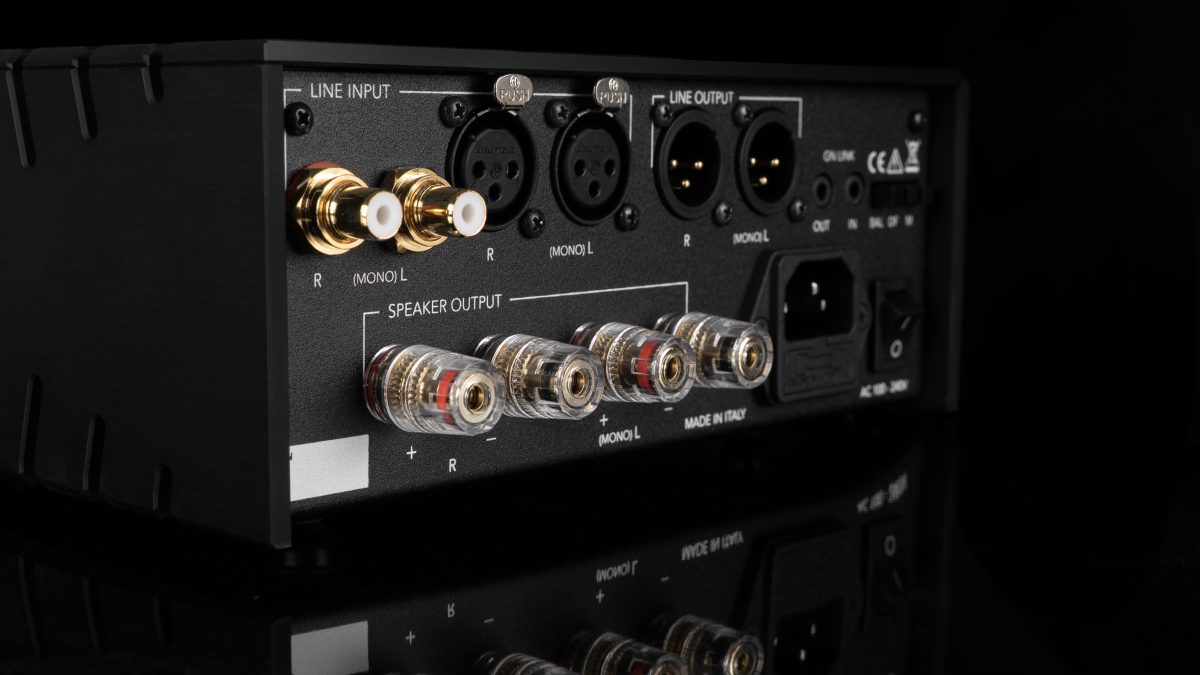

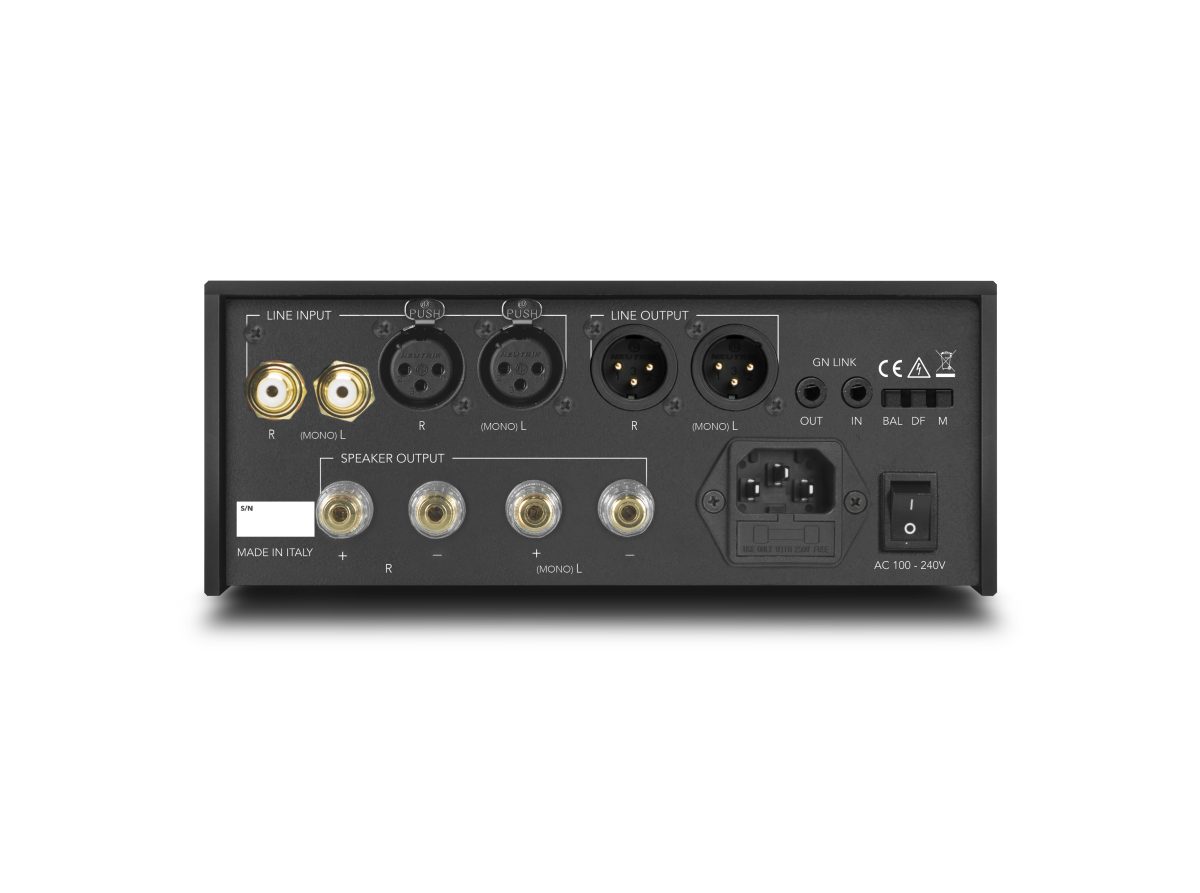

| AUDIO INPUTS | 1x RCA Stereo unbalanced / 1x XLR Stereo balanced |
| INPUT SENSITIVITY | 2,5Vrms RCA/XLR |
| INPUT IMPEDANCE | 3,6kΩ RCA / 7,2kΩ XLR |
| DIMENSIONS | 200mm W | 80mm H | 260mm D |
| WEIGHT | Kg. 3 – net Kg. 4 – boxed |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 1 year warranty |
| Trade-in | Part exchange available (subject to conditions) |
