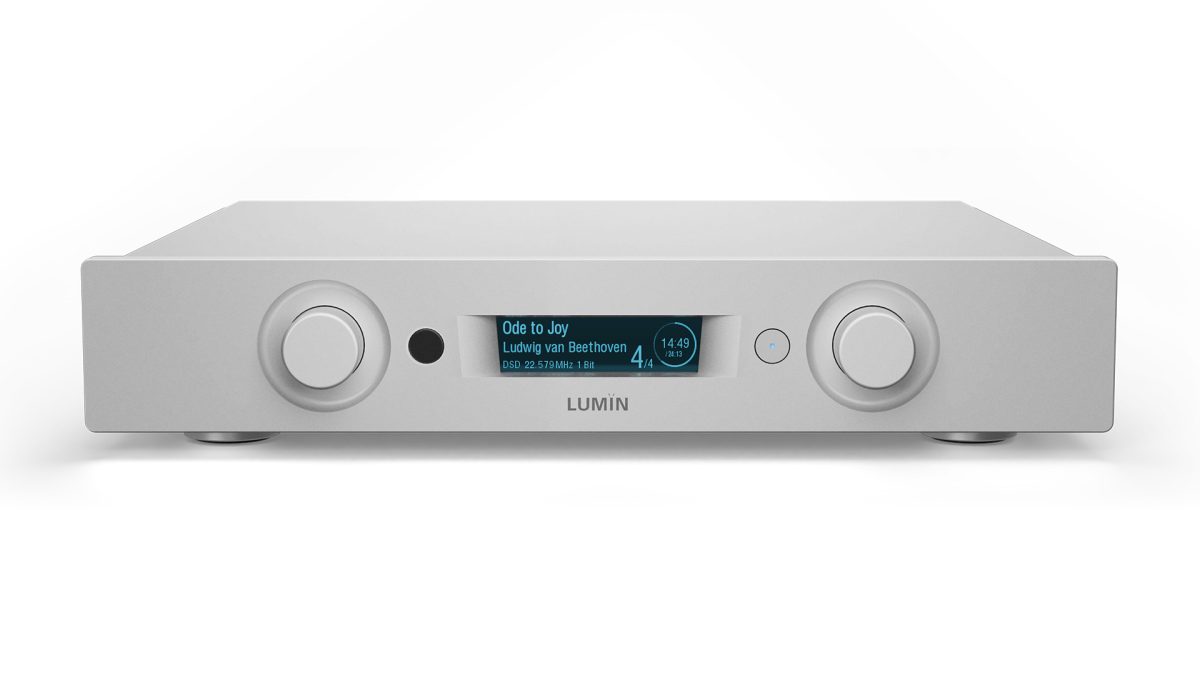

P1 Mini
The Lumin P1 Mini centres on flexible use as a streamer, DAC, pre-amplifier or combined unit, with USB, HDMI, SPDIF and analogue inputs. HDMI ARC, AV passthrough and Leedh Processing volume control support a straightforward 2-channel television or hi-fi system with centralised source and volume management.
The LUMIN P1 Mini is a streamer, DAC and pre-amplifier that can be used individually or together. It has 5 analogue and digital inputs, a new internal toroidal linear power supply and a slim chassis incorporating components from LUMIN flagship players.
Main features
- Five inputs including USB, HDMI, SPDIF and Analogue
- HDMI with stereo input, AV Passthrough and ARC
- Dual DAC ES9028PRO
- DSD512 and PCM384
- Femto Clock System with precision FPGA distribution
- New internal toroidal linear power supply
- Dual Network with Optical Fibre Network support
- Leedh Processing lossless volume control
Inputs and processing
USB
- Industry-leading XMOS USB audio controller
- Native DSD512 and PCM384 compatible
- Windows 10 and Mac OS compatibility
Analogue
- Stereo analogue input
- LEEDH volume processing
- Passthrough function for home cinema integration with custom naming functionality
SPDIF Optical and RCA
- DoP64 and 192 kHz 24-bit compatible
- TOSLINK and SPDIF (RCA)
HDMI
- HDMI 2.0 Specification compatible
- Supports 2.0 PCM audio decoding
- HDR, Dolby Vision, Dolby Atmos and DTS passthrough
- ARC compatible output
Streaming DAC
Used as a LUMIN network player, P1 Mini supports DSD512 and PCM384 and includes a Femto Clock System, Fibre Networking, a toroidal power supply and Leedh Processing.
Hi-Fi hub
Connect stereo sources to LUMIN P1 Mini, then add a power amplifier to create a music system centred on the unit.
2-channel TV system
HDMI sources can be connected to a TV, with P1 Mini linked to the television. HDMI ARC sends the audio through the main speakers without requiring an AV Receiver.
Fibre Networking
Optical networking isolates the system from network noise. The dual network ports also allow a LUMIN L2 or a NAS to be connected directly to P1 Mini. Fibre Networking was first introduced on the LUMIN X1 and is now used on several LUMIN models.
Femto Clocking System
Dual Femto crystal oscillators work with LUMIN’s proprietary FPGA clock distribution system, first introduced in the LUMIN X1.
Included Remote Control
The tactile infrared remote control provides input selection, volume adjustment, playlist navigation and other functions. Made in Austria from acrylic and zinc, the LUMIN remote is Roon Ready.
LUMIN P1 Mini has a built-in infrared receiver and is compatible with universal remote controls, phones and automation systems.
| Network playback: | Up to DSD512 Up to 384 kHz, 16–32-bit, Stereo MQA Full Decoding |
|---|---|
| Upsampling rates & bit depths: | DSD256 upsampling option for all files PCM 384kHz upsampling option for all files |
| Digital Input: | USB: USB Audio Class 2 Compatible WINDOWS 10 (Release 1703 or above) / Mac OSX or above DoP 128 support PCM 44.1–384 kHz, 16 / 32-bit, Stereo OPTICAL/SPDIF: PCM 44.1 kHz–192 kHz, 16–24-bit DSD64 (DoP64, DSD over PCM) HDMI: PCM 2.0 Audio support 4K Video Passthrough |
| Analog Output: | Dual ESS SABRE32 ES9028Pro DAC chips Fully balanced layout with high-quality components Femto Clock System with precision FPGA distribution |
| Lumin (solid aluminium chassis): | 400mm (W), 314mm (D), 77mm (H), 7kg |
| Delivery | Free UK delivery, fully insured |
|---|---|
| Returns | 14-day returns on unopened accessories |
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
| Payment | Apple Pay, Google Pay and all major cards |
