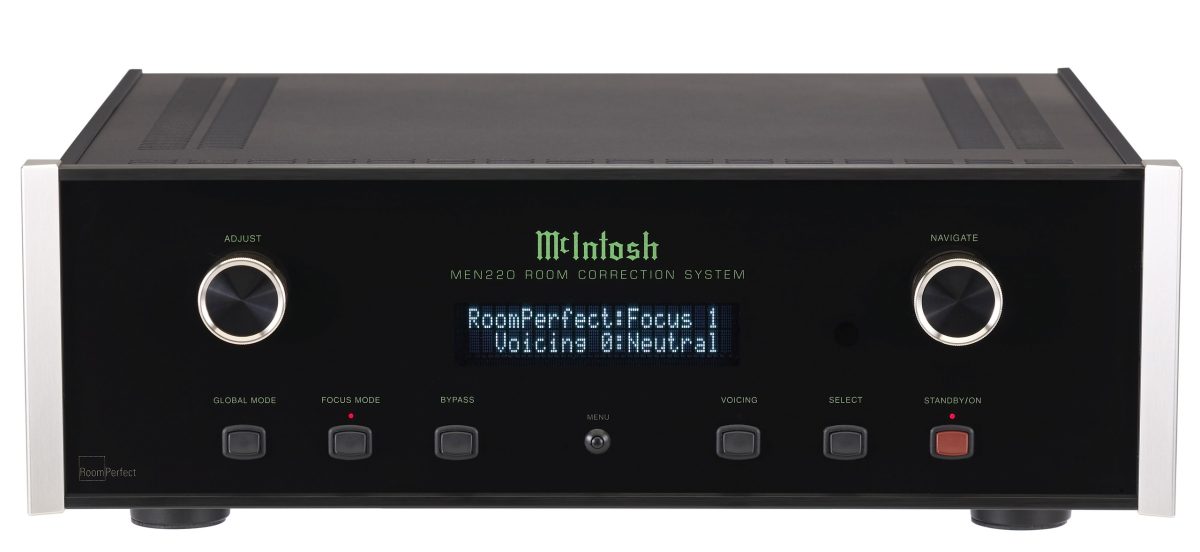

MEN220
The McIntosh MEN220, a stereo room correction component, brings room correction, Custom-EQ and 2-way crossover functions together for system adjustment. Single-ended and balanced connections support integration with different systems, while RS232, McIntosh Data, Power Control and IR connections allow system control from the included infrared remote.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£1,778.00 initial 20% deposit then £237.07 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
The McIntosh MEN220 is a stereo component combining Room Correction, Custom-EQ and 2-Way Crossover functions. Each capability can be used independently to optimise the sonic characteristics of a high-quality audio system, or they can be combined to improve clarity and resolution.
System control and PC connection are provided through RS232. McIntosh Data, Power Control and IR inputs add further remote-control options, while both single-ended and balanced connections are supported. The MEN220 is supplied with a hand-held IR remote control.
| Frequency Response | +0, -0.5dB from 20Hz to 20,000Hz |
|---|---|
| Maximum Input Voltage | 4.5V Unbalanced and Balanced (Preamp-Power Amp)2.25V Unbalanced and Balanced (Processor Loop) |
| Maximum Output Voltage | 4.5V Unbalanced and Balanced (Preamp-Power Amp)2.25V Unbalanced and Balanced (Processor Loop) |
| Crossover Filter Types, Order and Slope | Butterworth, 1st order, 6 dB/octave. Butterworth, 2nd order, 12 dB/octave. Butterworth, 4th order, 24 dB/octave. Linkwitz-Riley, 2nd order, 12 dB/octave. Linkwitz-Riley, 4th order, 24 dB/octave. Linkwitz-Riley, 8th order, 48 dB/octave |
| Dimensions (W x H x D) | 17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables) |
| Weight | 25.5 lbs (11.6 kg) |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 3 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
