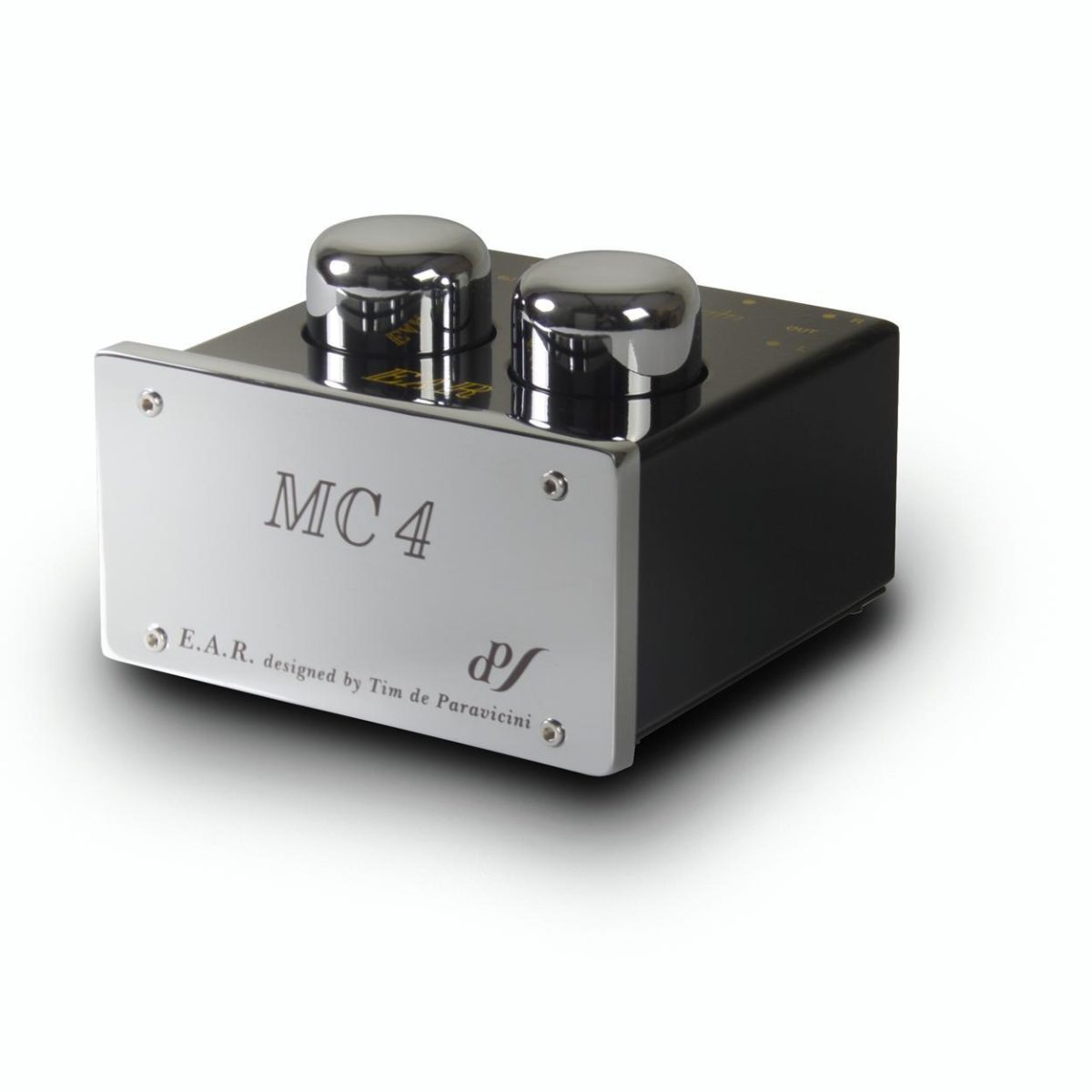

MC4
The EAR Yoshino MC4 centres on transformer technology for moving-coil cartridges, converting their low voltage output into a form most amplifiers can handle while retaining wide bandwidth, low noise and minimal time distortion. This allows the cartridge to extract more information from the groove and can deliver the record’s potential 90dB dynamic range.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£379.80 initial 20% deposit then £126.60 per month for 12 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
The EAR Yoshino MC4 is a moving coil step-up transformer for use with moving coil cartridges. Prices exclude valves. Please call for prices.
The moving coil cartridge converts energy more efficiently than a moving magnet design, but its output voltage is not practical for most amplifier technology to handle directly. By transforming the product of its voltage and current into a form suitable for most amplifiers, the EAR Yoshino MC4 provides an advance over moving magnet cartridges in noise figures of at least 6dB. This allows a dynamic range of 90dB, corresponding to the potential range offered by the record.
EAR designed the transformer to operate close to the ideal of transforming one kind of energy into another without loss. It is intended to allow moving coil cartridges to extract as much information as possible from the groove. Compared with active head amplifiers, the transformer approach avoids the limitations that can restrict information retrieval, including limited bandwidth, time distortion, noise contribution and susceptibility to external influences. The design objective is wide bandwidth, minimal time distortion, minimum noise contribution and maximum protection from external influences.
| Hum Rejection | Greater than 60dB |
|---|---|
| Channel Separation | Greater than 70dB (20-20KHz) |
| Channel Balance | Less than 0.1dB |
| Rise Time | 2lsecs (any level) |
| Phase Linearity | Less than +,- 5 degrees (20-20KHz) |
| Voltage Gain | X30, x24, x18, x10 |

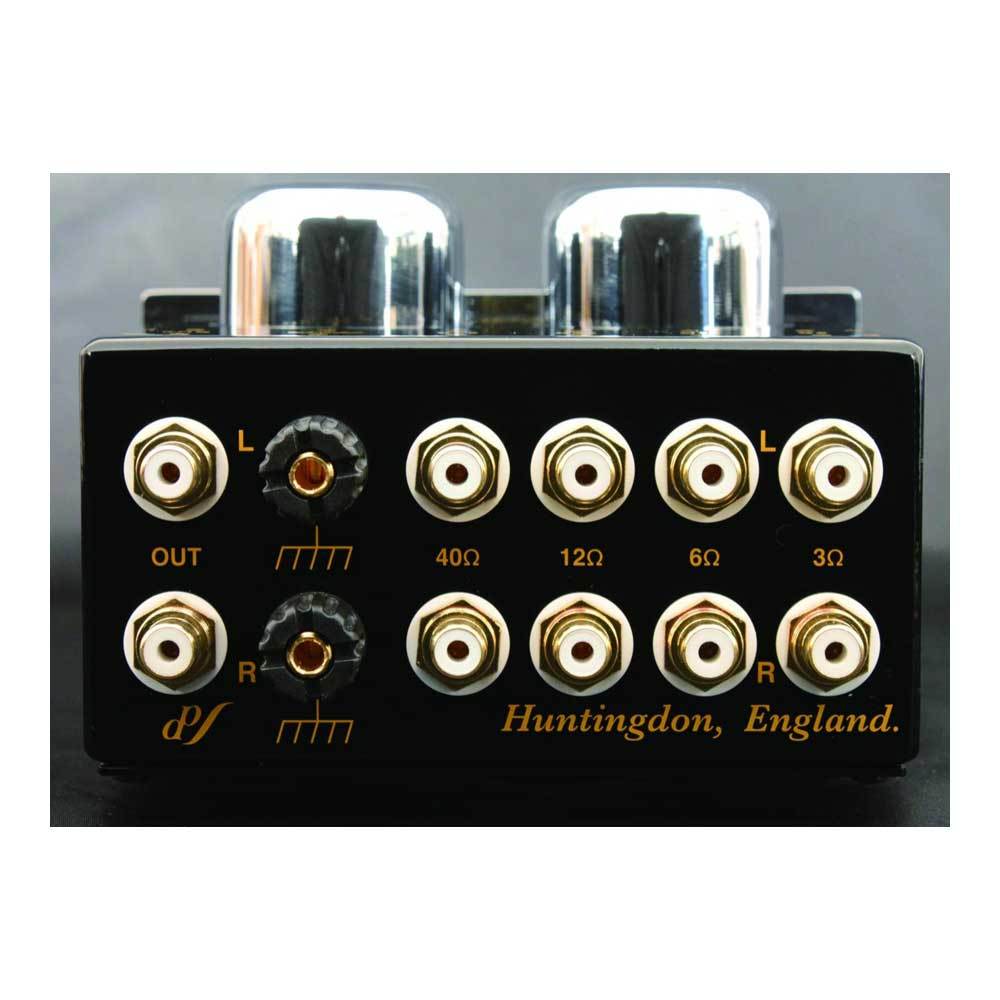

| Input Impedances (nominal) | 3 ohm, 6 ohm, 12 ohm, & 40 ohm |
| Equivalent Noise Contribution | Less than 1dB |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 3 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
