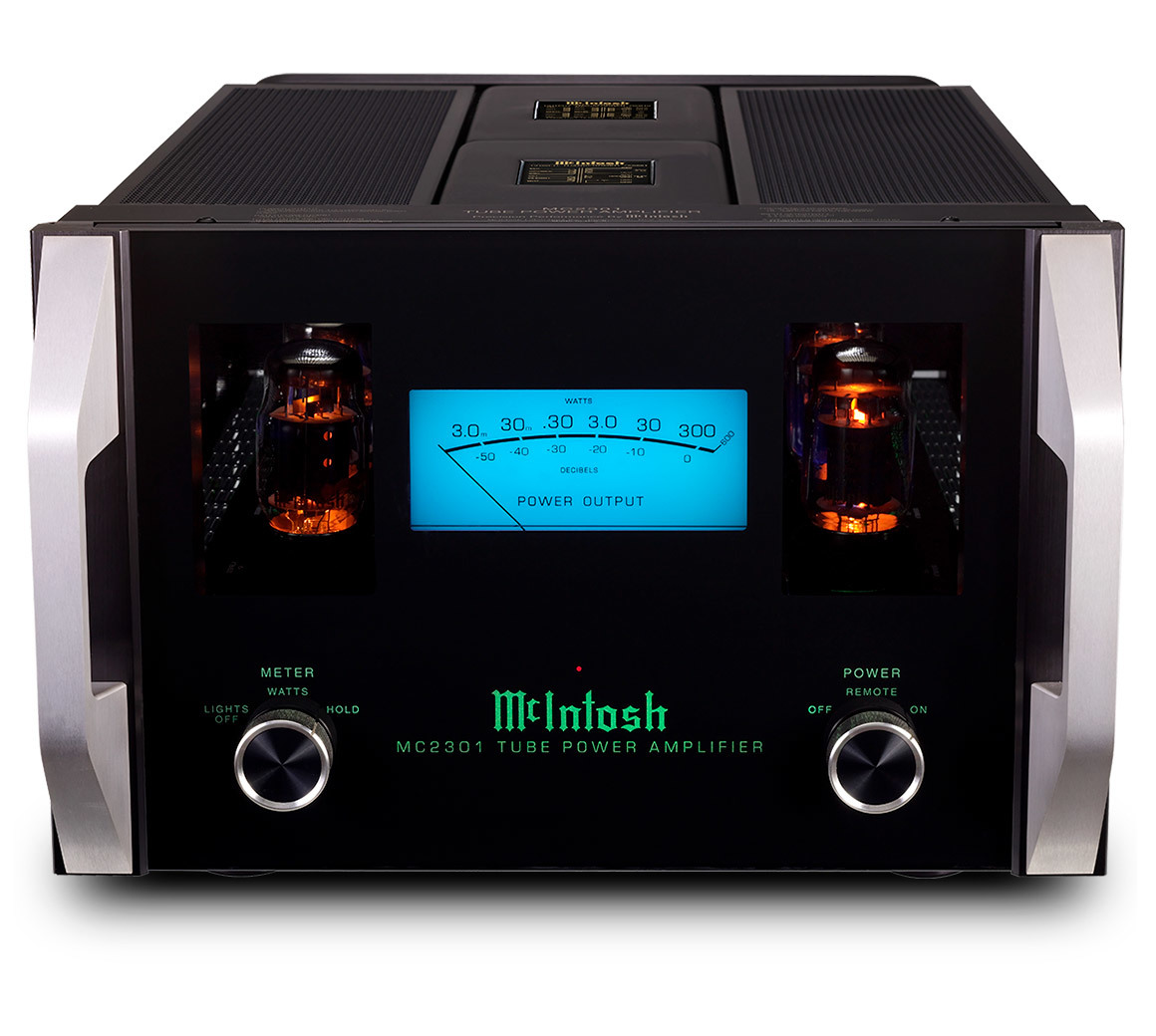

MC2301 Monoblocks
The McIntosh MC2301 Monoblocks deliver 300 Watts of mono output into 8, 4 or 2 ohms, giving them the power to drive demanding loudspeakers. Unity Coupled and Quad-Differential circuit topologies support wide power bandwidth and low distortion, while balanced inputs and outputs accommodate balanced system connections.
Or speak to a specialist, 01202 911886

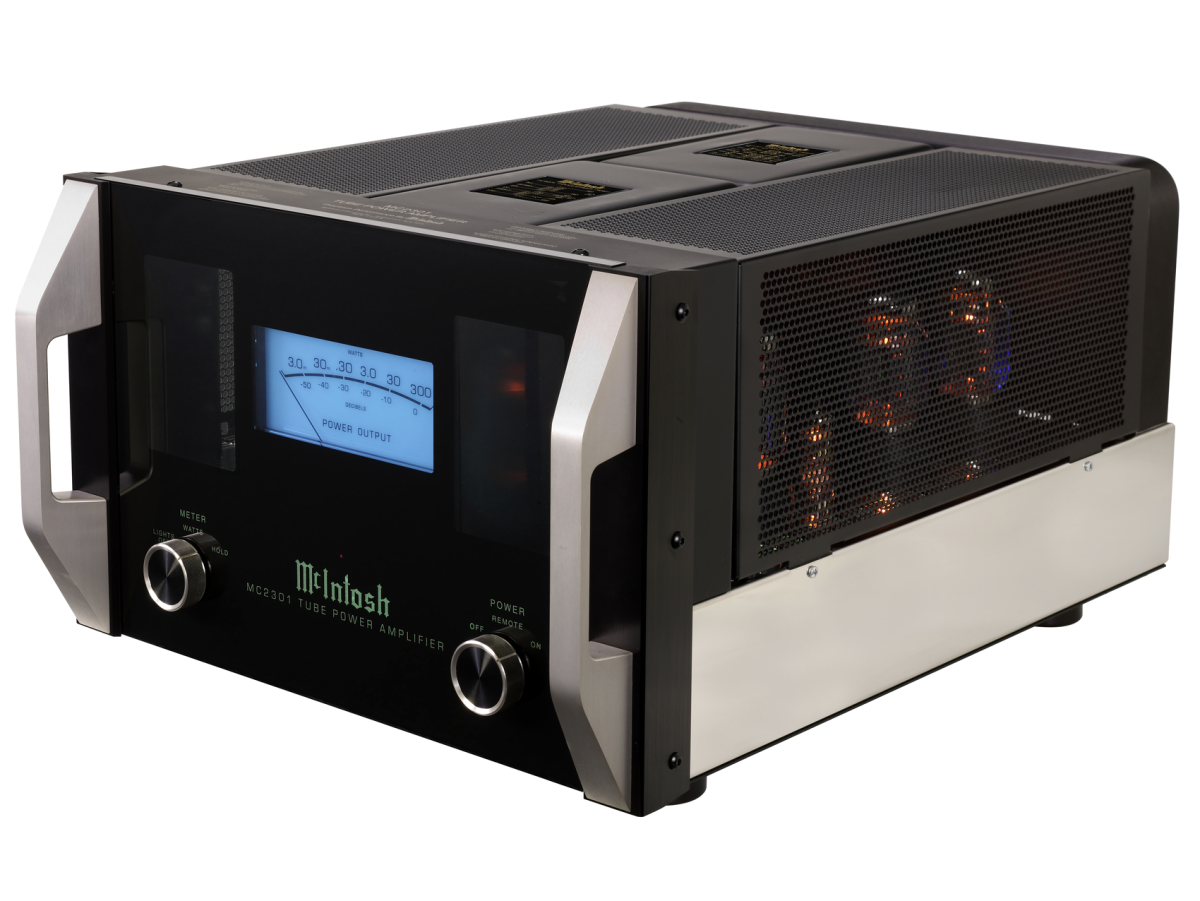

The McIntosh MC2301 is a monoblock tube amplifier with a 300 Watt output at 8, 4 or 2 ohms, providing the power required by difficult-to-drive loudspeakers. Its design combines McIntosh Unity Coupled and Quad-Differential circuit topologies. The Unity Coupled Circuit is used to provide wide power bandwidth and low distortion, while Quad-Differential circuitry cancels nearly all induced noise and circuit-borne nonlinearities for very low noise levels in a tube amplifier. This combination is intended to preserve a lifelike, dynamic presentation across demanding material, from massed chorale to rock and roll.
The MC2301 uses a balanced design with multifilar wound output transformers, low distortion from 20Hz to 20kHz, and 2 balanced inputs and outputs. Large gold-plated five-way binding posts provide the speaker connections. Remote power control includes meter light control, while the thick glass front panel incorporates a tube view and fibre optic light diffuser illumination.
- 300 Watts Mono Power Output
- Balanced Design
- Multifilar Wound output Transformers
- Wide Power Bandwidth
- Two Balanced Inputs/Outputs
- Remote Power Control with Meter Light Control
- Low Distortion from 20Hz to 20kHz
- Large Gold Plated Five-Way Binding Posts
- Thick Glass Front Panel with Tube View
- Fibre Optic Light Diffuser Illumination
| Output load impedance | Terminals for 8, 4 and 2 ohms |
|---|---|
| Rated power band | 20Hz to 20kHz |
| Total harmonic distortion | 0.5% maximum harmonic distortion at any level from 250 milliwatts to rated power output. |
| Input sensitivity | 1.7V Unbalanced |
| A-weighted signal-to-noise ratio | 117 below rated output |
| Intermodulation distortion | 0.5% maximum if instantaneous peak power output does not exceed twice the rated output, for any combination of frequencies from 10Hz to 20kHz |
| Wide band damping factor | Greater than 15 |
| Input impedance | 47,000 ohms |
| Tube compliment | 2 – 12AT7 Voltage Amplifiers; 8 – KT88 or 6550 Output Tube |
| Dimensions (HxWxD) | 12-5/16” (31.3cm) x 17-3/4” (45.1cm) x 23” (58.4cm) |
| Weight | 116 pounds (52.6kg) net: 141 pounds (64kg) in shipping carton |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 3 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
