M32

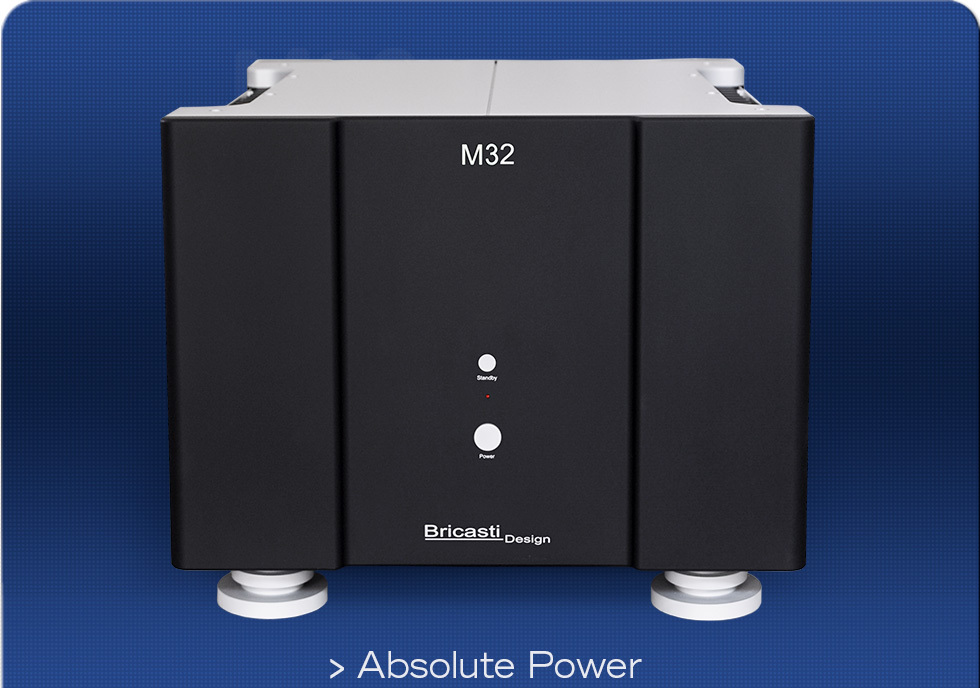

The M32 power amplifier is the latest rendition in the Bricasti line of power amplifiers. The flagship M32 builds upon the award winning Bricasti M28 and raises the bar to a whole new level of enjoyment with impressive depth and solidity that needs to be experienced to be fully appreciated.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£4,000.00 initial 20% deposit then £533.33 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
The M32 has an impressive 50% more current delivery when comparing to the M28; high current delivery, extremely low noise and low distortion with even less power supply ripple. The power delivery of the M32 is increased to 250W into 8 ohms, 500W into 4 ohms, and current limited for safety at 1000W into 2 ohms, more than 1kw peak power into 4 ohms.
Not all devices are balanced end-to-end. The M32's fully differential design delivers a fast, low distortion, open and harmonically accurate musical experience. Paired with any of the Bricasti line of fully differential digital to analogue converters, a truly balanced system can be enjoyed from source to speaker.
An improved chassis capable of housing the new larger power transformer which offers a greater distance between the power components and the voltage and current gain sections of the amplifier. The results are a design that yields extremely low noise performance and no practical interference from the power supply components and gain sections of the amplifier
| Total Harmonic Distortion | THD+N less than 0.005% 20hz-20kHz at full rated power into 8, 4 and 2 ohms. |
|---|---|
| Power | 200W into 8 ohms, 400W into 4 ohms, 800W into 2 ohms. |
| Frequency response | 10hz-150kHz, within 0.5db. |
| Signal to Noise | greater than 95db at full rated. |
| Power Topology | Fully Differential, bi polar. |
| Balanced Input | XLR connector 200k ohm impedance. |
| Unbalanced Input | RCA connector 100k ohm impedance. |
| Weight | 105 lbs. |
| Shipping Weight | 123 lbs. |
| Finish | Anodized Aluminum. |
| Mains Voltage set at factory | 100, 120, 220, 230, 240 VAC, 50 Hz - 60 Hz. |
| Trigger In | TRS connector for 5V external trigger. |
| Input Trim | 0db, -6db, -12db,-18db of attenuation. |
| Power consumption | 60W standby, 2W idle. |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
