M30
The Bricasti M30, a monoblock power amplifier, brings the M28’s current delivery into a smaller, wider chassis for applications with limited space or rack installation. Its fully differential design supports fast response, low distortion, an open presentation and harmonic accuracy, while integrated Stillpoints feet reduce vibration effects.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£3,600.00 initial 20% deposit then £480.00 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.

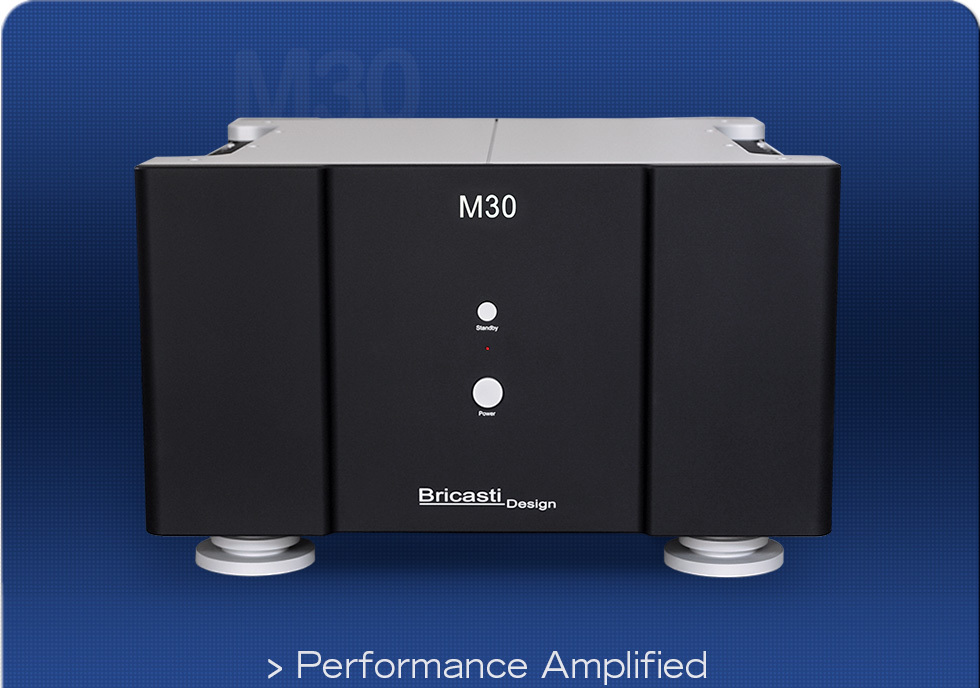

For those seeking the benefits of monoblock amplifiers in a more compact form, the M30 provides the performance of the M28 in a chassis measuring 10.5 inches high and 17 inches wide.
The M30 uses the same current delivery as the taller M28, in a smaller, wider footprint suited to applications requiring additional power in limited spaces or rack installations. A single powerful transformer and custom-built capacitor banks provide depth and dimension.
Not all devices are balanced from input to output. The M30’s fully differential design provides fast response, low distortion, an open presentation and harmonic accuracy. Used with any of Bricasti’s fully differential digital-to-analogue converters, it forms a balanced system from source to speaker.
The M30 chassis is designed to keep critical components within an optimal temperature range. Aluminium is used extensively, with the chassis crafted from solid blocks and designed to direct airflow through the top. Stillpoints isolation devices are integrated into the feet to reduce the effects of vibration.
| Total Harmonic Distortion | THD+N less than 0.005% 20hz-20kHz at full rated power into 8, 4 and 2 ohms. |
|---|---|
| Power | 200W into 8 ohms, 400W into 4 ohms, 800W into 2 ohms. |
| Frequency response | 10hz-150kHz, within 0.5db. |
| Signal to Noise | greater than 95db at full rated. |
| Power Topology | Fully Differential, bi polar. |
| Balanced Input | XLR connector 200k ohm impedance. |
| Unbalanced Input | RCA connector 100k ohm impedance. |
| Weight | 105 lbs. |
| Shipping Weight | 123 lbs. |
| Finish | Anodized Aluminum. |
| Mains Voltage set at factory | 100, 120, 220, 230, 240 VAC, 50 Hz - 60 Hz. |
| Trigger In | TRS connector for 5V external trigger. |
| Input Trim | 0db, -6db, -12db,-18db of attenuation. |
| Power consumption | 60W standby, 2W idle. |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
