M1SE
The Bricasti M1SE delivers a more transparent sonic presentation and supports DSD, DSD64 and DSD128 playback at sample rates up to 352.8kHz. Its dedicated dual-mono construction uses point-to-point wiring, Stillpoints feet and updated power filtering to improve signal flow, vibration isolation and power stability.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£2,450.00 initial 20% deposit then £326.67 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.

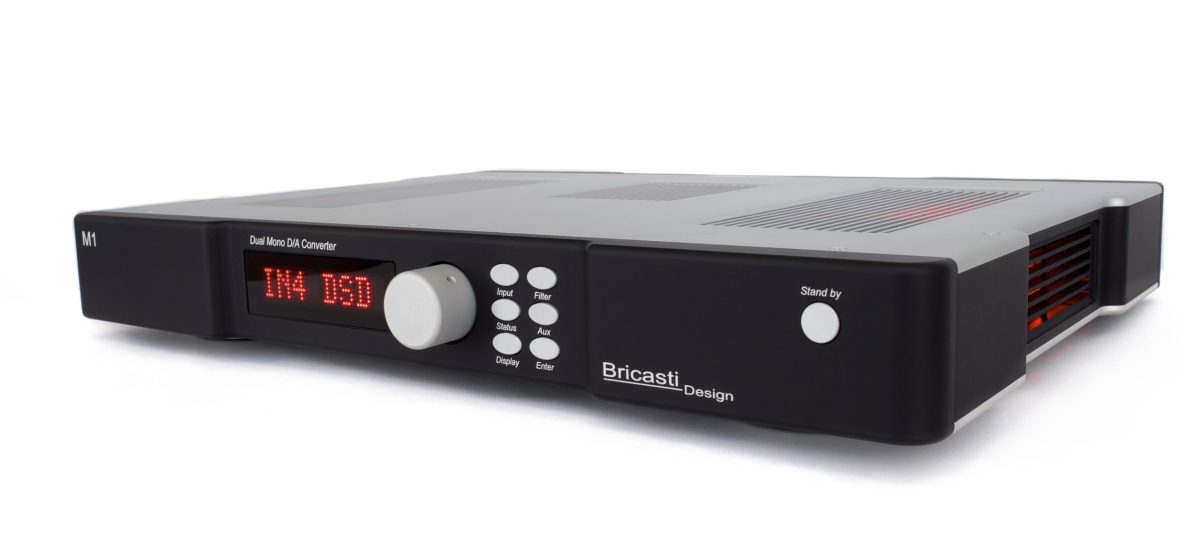

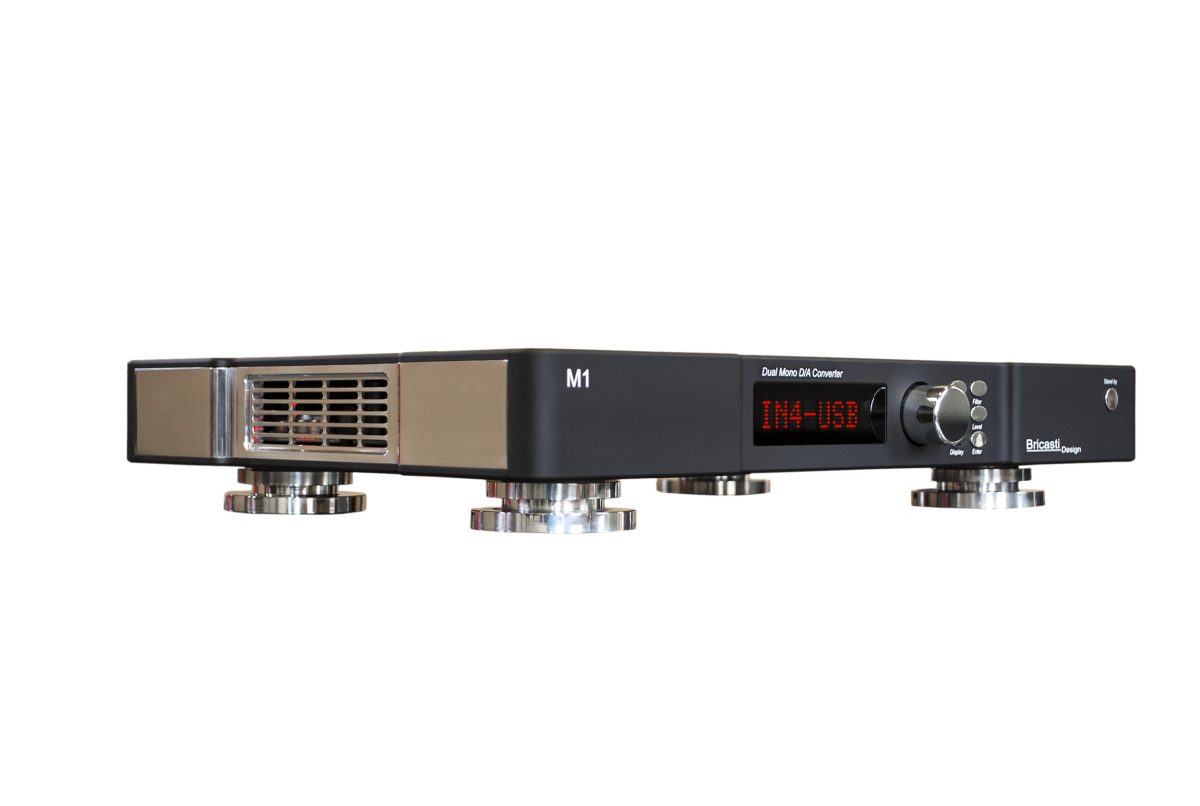

The M1 Special Edition is finished in anodised black and aluminium. It uses Stillpoints feet engineered and optimised for this design, providing greater stability and improved isolation from vibration for a more transparent sonic presentation. Point-to-point wiring replaces various connectors that can degrade signal performance, improving signal flow through a labour-intensive construction process. The power supply has also been updated with improved filtering of unwanted noise and power ripple.
Product Highlights
- Newly engineered Stillpoints feet for improved isolation.
- Point-to-point wiring.
- Improved power capacitors.
- DSD, DSD64 and DSD128 playback.
- Latest-generation asynchronous USB interface.
- Dedicated dual-mono design.
- Proprietary filter technology.
- Jitter of 6 picoseconds.
- Supports sample rates up to 352.8kHz and 24 bits.
- Minimum-phase and linear-phase filters.
| Digital Inputs | USB: USB-2 XLR: AES/EBU 24 bit Single Wire RCA: SPDIF Toslink: Fiber Optic |
|---|---|
| Sample Rates | USB: 44.1 kHz - 384 kHz, DSD 64x, DSD 128x AES, SPDIF: 44.1 kHz - 192kHz Toslink: 44.1 kHz - 96 kHz |
| Frequency Response Dig I/O: | DC to 24 kHz @ 48 kHz DC to 96 kHz @ 192 kHz |
| Balanced Analog Output | Connectors: XLR balanced (pin 2 hot) Impedance: 40 ohm Max output level:+22 dbm Min output level:+8 dbm D/A Conversion:24 bit delta sigma 8x oversampling |
| Unbalanced Analog Output | Connectors:RCA Impedance:40 ohm Output level: +8 dbm (2V RMS) D/A Conversion: 24 bit delta sigma 8x oversampling |
| Dimensions | 17” x 12“ x 2.5" |
| Weight | 12lbs |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
