F702SP
The Fyne Audio F702SP brings a 200mm IsoFlare driver from the F1-8 to a hand-built UK floorstanding loudspeaker. Its F702 twin-cavity cabinet uses BassTrax, while revised crossover circuitry, Claritycap capacitors, Neotech PC-OCC wiring and WBT Nextgen 0703 terminals support signal integrity and stability.
Choose the finish to see its price.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£2,399.00 initial 20% deposit then £319.87 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.

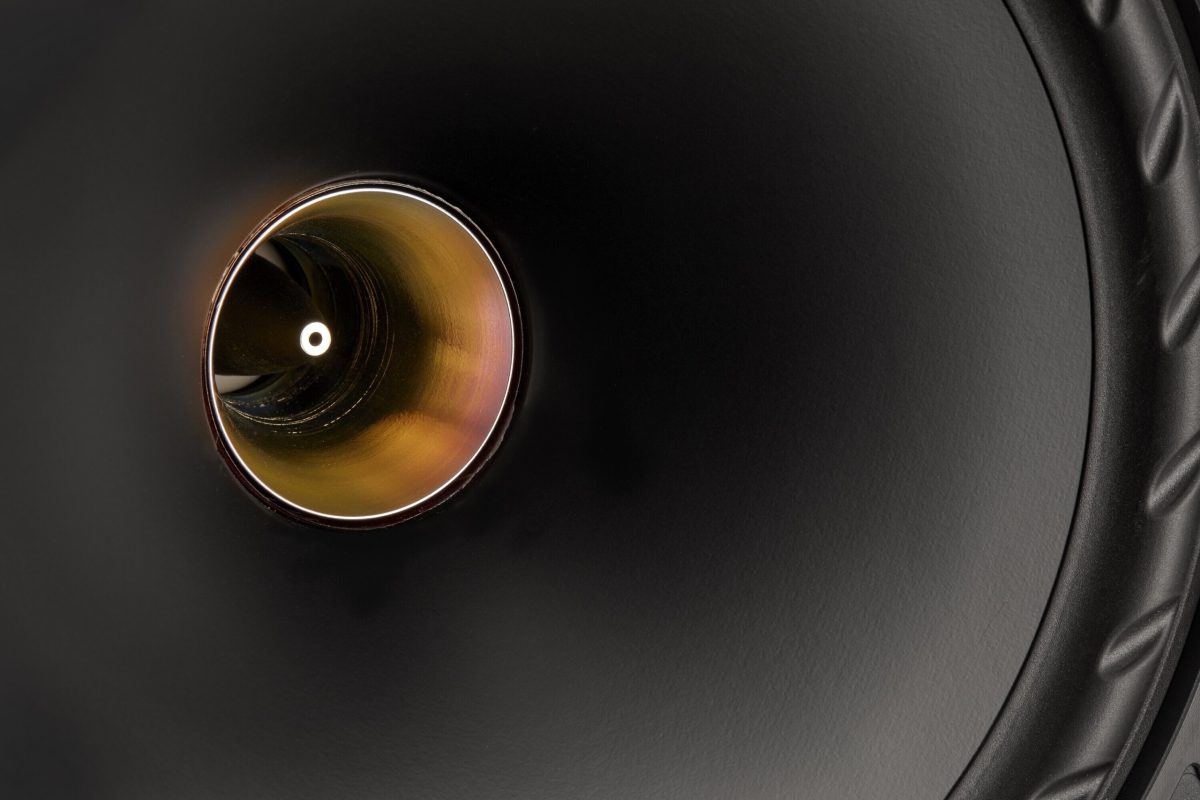

The Fyne Audio F702SP is a hand-built UK floorstanding speaker using the company’s latest acoustic engineering in a twin-cavity tuned cabinet based on the award-winning F702 design. The 200mm IsoFlare driver from the F1-8 is combined with a refined high-frequency waveguide for a smoother frequency response, while the BassTrax low-frequency diffuser manages the cabinet’s bass output.

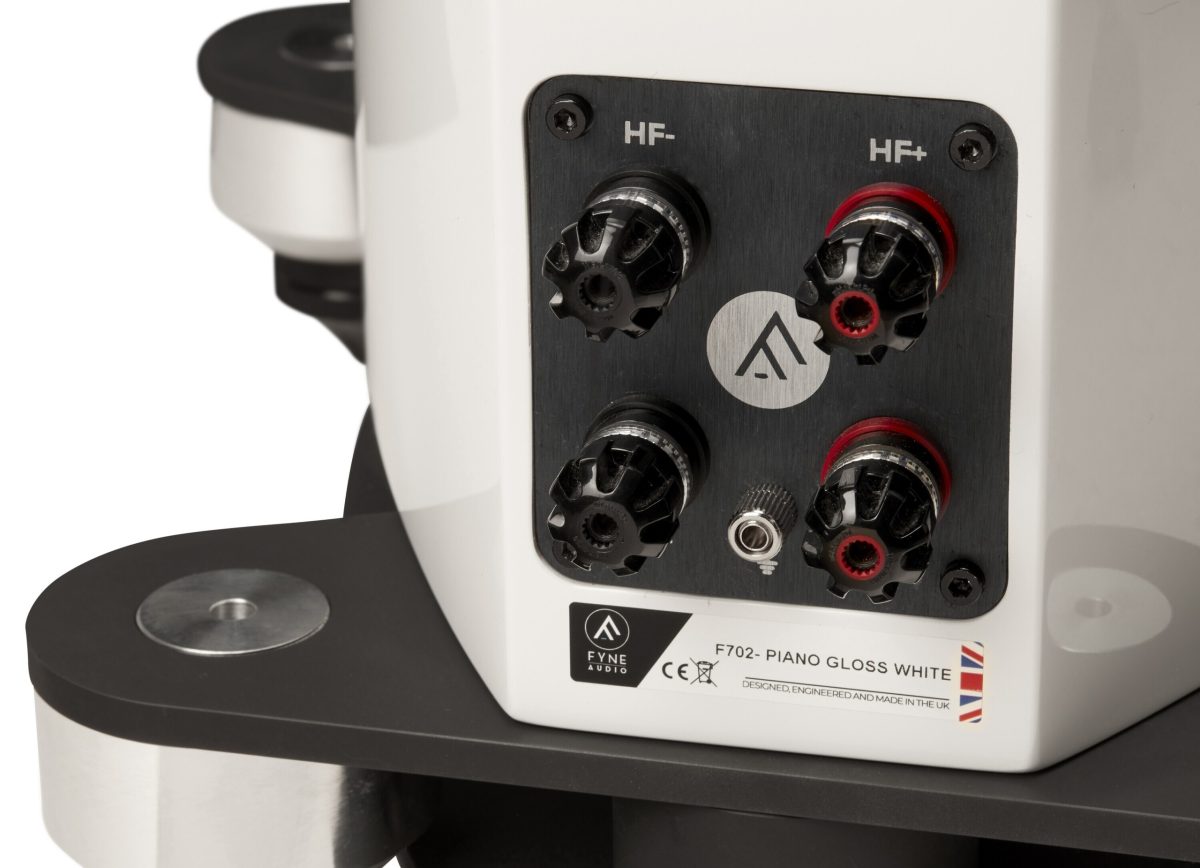

Its crossover circuitry has been redesigned and optimised through computational modelling and extensive listening tests. High-grade Claritycap capacitors and Neotech PC-OCC wiring are used for signal transfer, with gold-plated WBT Nextgen 0703 terminals providing the connection points. Fyne Audio’s proprietary cryogenic treatment process is also applied to maintain signal integrity.
The F702SP is supported by a heavyweight aluminium platform with M12 threaded support cones for stability. It is intended for use in mid to large-sized rooms and is designed to produce articulate, powerful sound.
| System Type | 2 ½ way, downwards firing port, with BassTrax™ Tractrix diffuser*, twin cavity loading system |
|---|---|
| Recommended amplifier power (Watt RMS) | 30 - 200 |
| Peak power handling (Watt) | 400 |
| Continuous power handling (Watt RMS) | 100 |
| Sensitivity (2.83 Volt @ 1m) | 92dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 28Hz - 34kHz |
| Drive unit complement | 1 x 200mm IsoFlare™ point source driver, multi-fibre bass / midrange cone, FyneFlute™ surround with 25mm magnesium dome compression tweeter, ferrite magnet system . 1 x 200mm multi-fibre bass / midrange cone, FyneFlute™ surround. |
| Crossover frequency | 250Hz & 1.8kHz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryogenically treated |
| Dimensions - HxWxD | 1126 x 439 x 443mm (44.3 x 17.3 x 17.4") |
| Net Weight - Each | 37.5kg (82.7lbs) |
| Finishes | Natural Walnut / Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |
| Cabinet Construction | Pressed high density birch ply with extensive internal bracing |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 5 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
