F502SP
The Fyne Audio F502SP extends a system with a UK-built floorstanding loudspeaker that delivers full-range frequency response and precise musical imaging through its IsoFlare and bass/mid drivers. An aluminium sandwich plinth incorporates a BassTrax tractrix-profile diffuser, while F700 crossover components are fitted to the compact cabinet.
Choose the finish to see its price.
Or speak to a specialist, 01202 911886

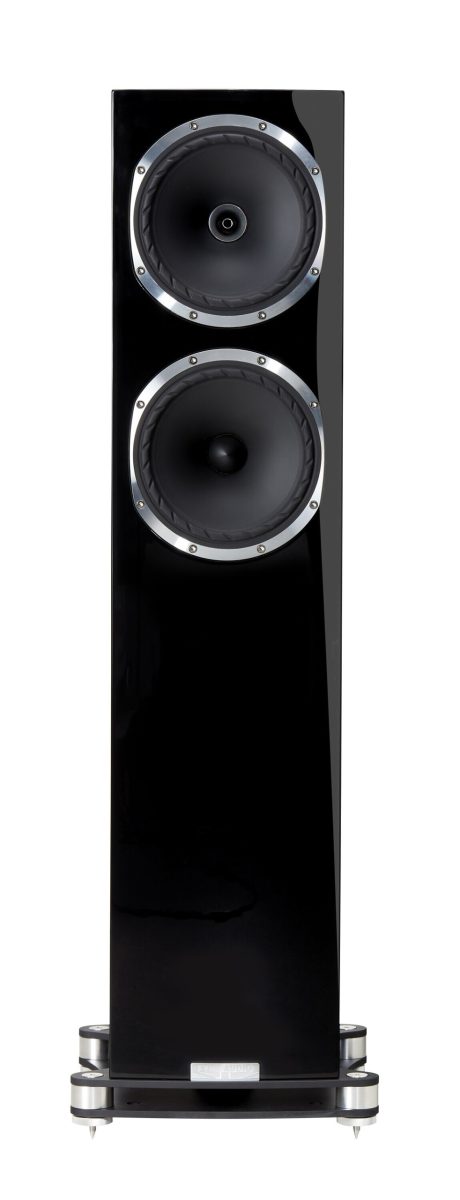

The Fyne Audio F502SP is a UK-built floorstanding loudspeaker developed from the F502. It uses the 200mm (8″) IsoFlareTM driver and 200mm (8″) bass/mid driver from the F702, with rigid multi-fibre cones and FyneFluteTM roll surrounds.
The IsoFlare driver incorporates a 25mm magnesium compression tweeter with a dedicated high-frequency waveguide pole piece. This arrangement provides an even, full-range frequency response and precise musical imaging.
Fyne Audio has fitted the F502SP with the F700’s advanced crossover components and an aluminium sandwich-type plinth. The plinth includes a BassTrax tractrix-profile bass diffuser, re-engineered to tune the more compact F502SP cabinet.
The F502SP is available in high-gloss black and high-gloss white as standard. A deep gloss lacquered walnut veneer finish is also offered, with a diamond machine-cut finish on the aluminium chassis.
| System Type | 2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system |
|---|---|
| Recommended amplifier power (Watt RMS) | 30- 200 |
| Continuous power handling (Watt RMS) | 100 |
| Sensitivity (2.83 Volt @ 1m) | 92dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 30Hz - 34kHz |
| Drive unit complement | 1 x 200mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFluteTM surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 200mm multi-fibre bass cone, FyneFluteTM surround. |
| Crossover frequency | 250Hz & 1.7kHz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass |
| Dimensions - HxWxD | 1110 x 338 x 380mm (43.7 x 13.3 x 15.0 |
| Weight | 30.4kg (67.0lb) each |
| Finishes | Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 5 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
