Evolution Digital II
No detail too small, every element of signal and power transmission engineered to within an inch of its life.
Choose the termination to see its price.
Or speak to a specialist, 01202 911886
All enthusiasts are looking for the same things: Verisimilitude, a sense of engagement promoting suspension of disbelief, a veritable immersion in audio and video experience. To detach without effort from modern time’s exigencies requires meticulous preparation of the entire playback chain, especially cables, power cords and AC distribution.

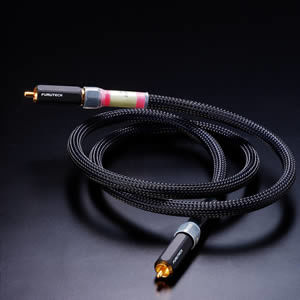

RCA interconnect finished with beautifully engineered High Performance FP-110 (G) RCA connectors
RCA centre pin 24k gold-plated nonmagnetic α (Alpha)-OCC conductor with Teflon dielectric
RCA connector backbone composed of nonmagnetic 24K gold-plated eutectic cast copper alloy with beautifully finished nonmagnetic copper alloy outer locking shell

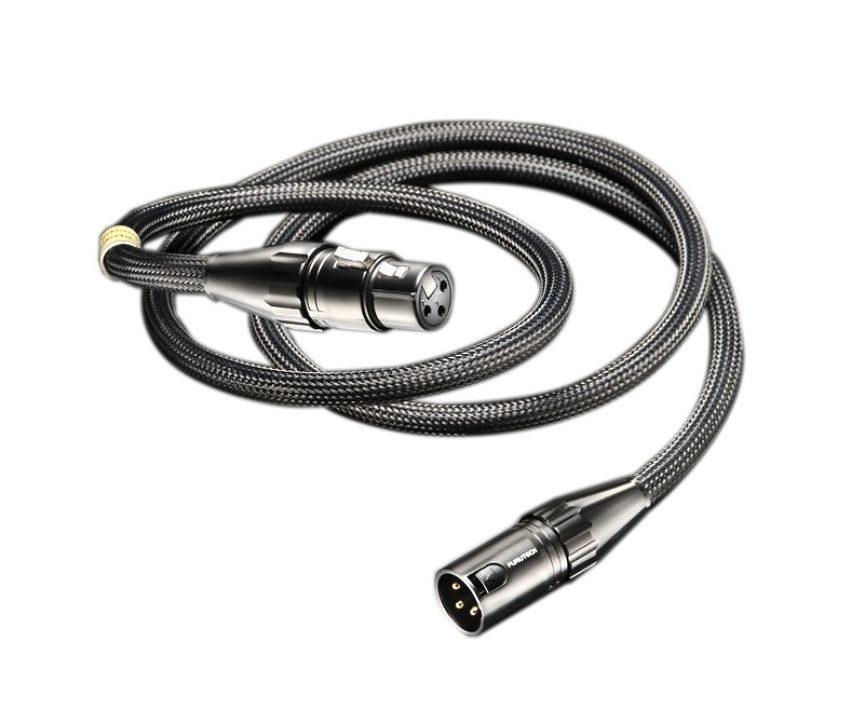

XLR interconnect finished with High Performance FP-701 M (G) and FP-702 F (G) XLR Connectors
Shield: 0.12 mm α (Alpha) conductor wire braid
Cable insulated with polypropylene reducing capacitance and damping vibration
Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which music develops more fully without artificial upper-frequency “presence region” glare
Evolution II, an update of the extremely well received Evolution series, incorporates newly-engineered anti-resonance cable clamps as well as an upgraded dielectric/insulation of RoHS-compliant Pb-free PVC incorporating anti-resonance carbon particles in its manufacture. Our Pure Transmission philosophy incorporates rhodium-plated pure copper conductors, even the IEC connectors of the Evolution II power cord. No detail too small, every element of signal and power transmission engineered to within an inch of its life, treated with advanced processes, and turned out with beautiful design and build quality to enrich every music experience.
| Conductor: | a(Alpha) conductor(37 pcs/0.16 mm),Diameter:1.15 mm |
|---|---|
| Insulation-1: | HDPE ,Diameter:1.75 mm |
| Insulation-2: | Air Foamed PE ,Diameter:5.5 mm |
| Shield-1: | 0.12 mma(Alpha) conductor wire Braid, Diameter:6.3 mm |
| Sheath: | Flexible PVC 2 Layers, Diameter:8.0 mm |
| Jacket: | Nylon Yarn Braid, Diameter:9.5 mm Approx. |
| Max. Conductor Resistance: | 25.1 O/km,JISC3005 6 20 Ω |
| Min. Insulation Resistance: | 1000 MO?km,JISC3005 9.1 20 Ω |
| Dielectric Strength AC. : | 1000 V/1 min.,JISC3005 8 |
| Electrostatic Capacitance: | Approx 56 PF/m,at 1 KHz |
| Characteristic Impedance: | 75 ± 5 O,at 10 MHz |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
