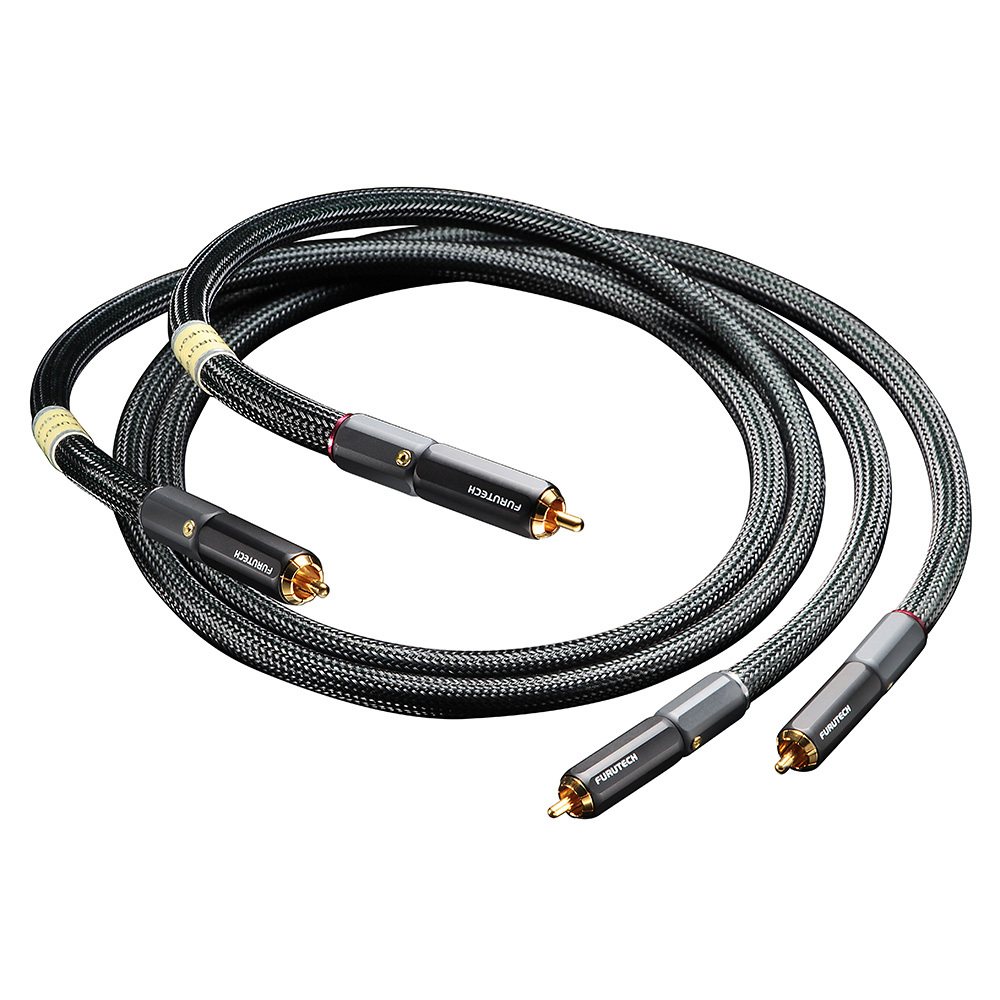

Evolution Audio II 1.2m
Evolution II, an update of the extremely well received Evolution series, incorporates newly-engineered anti-resonance cable clamps.
Choose the termination to see its price.
Or speak to a specialist, 01202 911886
All enthusiasts are looking for the same things: Verisimilitude, a sense of engagement promoting suspension of disbelief, a veritable immersion in audio and video experience. To detach without effort from modern time’s exigencies requires meticulous preparation of the entire playback chain, especially cables, power cords and AC distribution.
Evolution II, an update of the extremely well received Evolution series, incorporates newly-engineered anti-resonance cable clamps as well as an upgraded dielectric/insulation of RoHS-compliant Pb-free PVC incorporating anti-resonance carbon particles in its manufacture. Our Pure Transmission philosophy incorporates rhodium-plated pure copper conductors, even the IEC connectors of the Evolution II power cord. No detail too small, every element of signal and power transmission engineered to within an inch of its life, treated with advanced processes, and turned out with beautiful design and build quality to enrich every music experience.
Features RCA:
• Double-shielded a (Alpha)-OCC Conductors eliminate radiated noise
• Formula GC-303 Antimagnetic EMI-Absorbent Modules surround each cable
• High performance beautifully engineered rhodium plated RCA [FP-106 (R)]
• Centre filament pin [FP-106 (R)] a high-contact work of engineering art composed of nonmagnetic rhodium-plated phosphor bronze with Teflon dielectric
• RCA connector backbone composed of nonmagnetic rhodium-plated eutectic cast brass with beautifully-finished nonmagnetic brass outer locking shell.
• Shield 1 0.12 mm a (Alpha) conductor wire braid
• Shield 2 special EMI-absorbent Formula GC-303 Modules for superior noise isolation
• Insulated with air-foamed HDPE reducing capacitance and damping vibration
• Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which music develops more fully without artificial upper-frequency “presence region” glare.
• GC-303 allows a deeper, tighter bass to form a solid foundation for the rest of the frequency range, better defining the original recording’s venue. Natural, unforced detail reveals nuance and energy for an engaging musical experience.

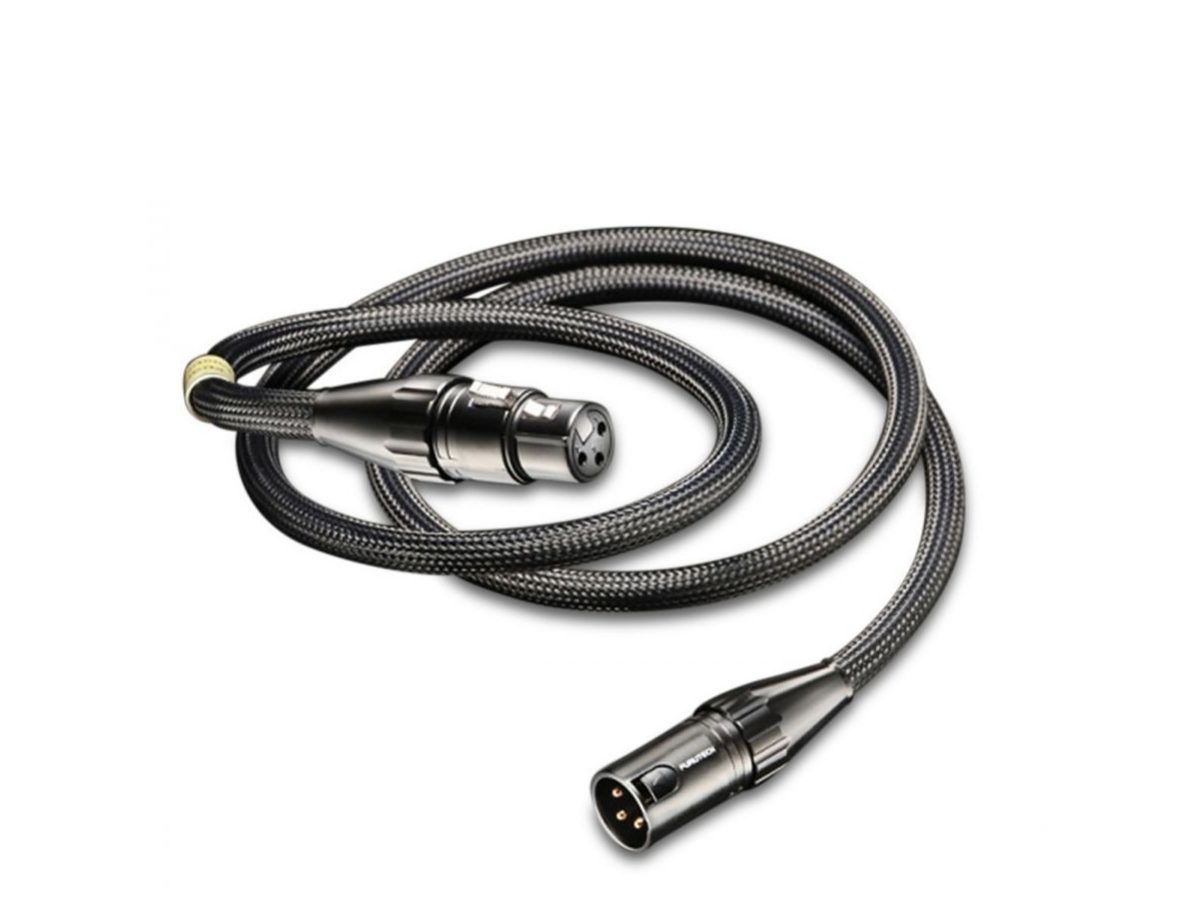

- Features XLR:
- High performance beautifully engineered gold-plated [FP-701M(G)/FP-702F (G)] XLR connectors
- XLR connector pins beautifully engineered copper alloy α (Alpha)-conductor with PBT dielectric
- XLR body and housing made of nonmagnetic copper alloy
- Shield 1 0.12 mm α (Alpha) conductor wire braid
- Cable insulated with polypropylene reducing capacitance and damping vibration
- Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which music develops more fully without artificial upper-frequency “presence region” glare
- α (Alpha) Conductor Is Composed Of Fine OCC Wire Strands Treated With Furutech’s α (Alpha) Cryogenic and Demagnetizing Process ・
- α (Alpha)-OCC Conductor wires are treated with the FURUTECH α(Alpha) to minimise transmission loss.
- Finished with High Performance FP-701M(G)/702F(G) XLR Connectors.
- The pin of FP-601M(R)/602F(R) is made using non-magnetic 24k Gold Plated Eutectic cast Brass with dielectric PBT. Non-magnetic Brass Housing (Black).
- Shielded with 0.12 mm α(Alpha) conductor wire Braid realising superior noise isolation.
- Insulated with high quality Polypropylene which contributes to a reduction in capacitance.
| Construction: | 30-strand a (Alpha)–OCC Conductor·0.18mm, 1.14mm diameter |
|---|---|
| Insulation: | 30% air-foamed HDPE (Red/White) 2.60mm diameter |
| Cable Lay: | Two twisted cores with cotton yarn |
| Cable Wrap: | Non-woven fabric wrap ~5.8mm diameter |
| Shield-1: | 0.12mm braided a (Alpha) Conductor·Braid density: 80% UP x 6.3mm diameter |
| Sheath: | Two layers flexible PVC (Dark Brown) 8.0mm diameter |
| Shield-2: | Special EMI- and noise-absorbent Formula GC-303 module |
| Jacket: | Nylon yarn braid. ~10.5mm diameter |
| Max. Conductor Resistance: | 26.4 O/km JISC3005 6 20Ω |
| Min. Insulation Resistance: | 1000 MOΩ km JISC3005 9.1 20Ω |
| Dielectric Strength : | AC. 500 V/1 min JISC3005 8 |
| Electrostatic Capacitance: | Approx 42 PF/m at 1 KHz |
| Characteristic Impedance: | Approx 120 O at 100 MHz |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
