DAC 502
The Weiss DAC 502 brings digital-to-analogue conversion, network streaming, preamplification and headphone amplification together, with DSP for room equalisation, tone control, loudness compensation, headphone equalisation and crossfeed. Its full-width chassis houses a digital platform handling high-resolution PCM and DSD, with USB, AES/EBU, coaxial, optical, XLR and RCA connections.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£1,960.00 initial 20% deposit then £261.33 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
The Weiss DAC 502 is a digital-to-analogue converter, network streamer, preamplifier and headphone amplifier for 2-channel hi-fi systems. It uses the same digital platform as the DAC501, housed in a full-width chassis, and provides extensive DSP functionality alongside flexible system integration.
PCM and DSD sources can be processed at high resolution, with the digital architecture designed for precise, transparent, low-noise operation. DSP functions include room equalisation, tone control, loudness compensation, headphone equalisation and crossfeed. These allow the signal and headphone presentation to be adjusted within the DAC 502.

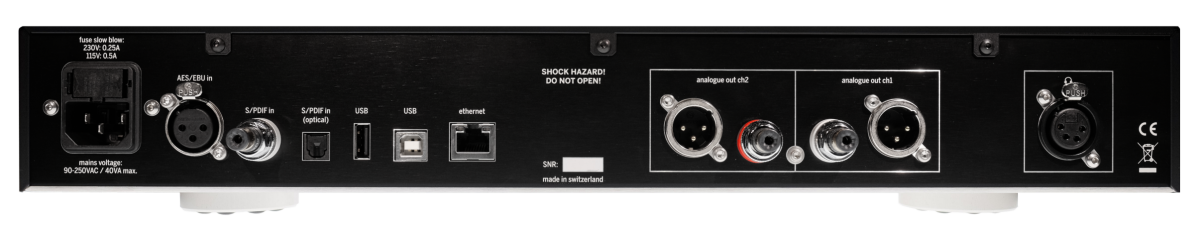

As a network streamer, the DAC 502 can play music directly from compatible music servers and streaming platforms. Its digital connections include USB, AES/EBU, coaxial and optical inputs for computers, transports and other digital sources. Balanced XLR and unbalanced RCA outputs connect to a power amplifier or integrated amplifier.
The integrated preamplifier provides direct volume control for an all-digital system, reducing the requirement for additional electronics. A dedicated headphone output supports personal listening, with headphone equalisation and crossfeed available through the DSP functions.

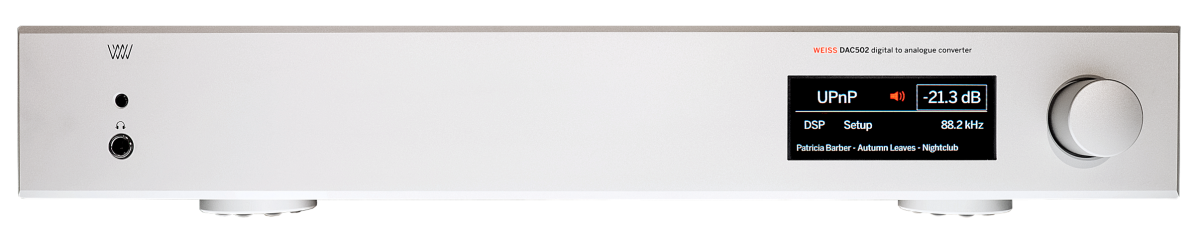

Front-panel controls and a display provide day-to-day operation, while further configuration is available through Weiss' software interface. The DAC 502 combines streaming, digital-to-analogue conversion, preamplification and signal processing in a single component, with studio-derived engineering at its core.
| Digital Inputs | (1) XLR connector (1) RCA connector (1) TOSLINK connector (optical) (1) USB type B connector (1) RJ45 Ethernet connector |
|---|---|
| Sampling Frequencies | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz on any of the inputs |
| Analog Outputs | (2) XLR connectors (hot on pin 2), short circuit proof output circuitry, output impedance tbd Ω (2) RCA connectors, short circuit proof output circuitry, output impedance tbd Ω |
|
Headphone Output: | (1) stereo 1/4-inch jack connector, DC coupled, short circuit proof output circuitry. The output level is selectable via the LCD menu; four level settings are provided as shown below: 5.2 Vrms +16.53 dBu 2.7 Vrms +10.84 dBu 0.9 Vrms +1.30 dBu 0.2 Vrms −11.77 dBu |
| Dimensions (WxDxH) | 188mm x 300mm x 72mm |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 1 year warranty |
| Trade-in | Part exchange available (subject to conditions) |
