cor
The PMC cor, an analogue integrated amplifier, reproduces music without adding its own character and follows PMC’s approach of musicality, transparency and neutrality. Hand-built in the UK, it offers 4 unbalanced RCA inputs, 1 pair of balanced XLR inputs and direct inputs, with remotely controllable motorised volume, tone and balance controls.
Choose the finish to see its price.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£1,399.00 initial 20% deposit then £233.17 per month for 24 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.

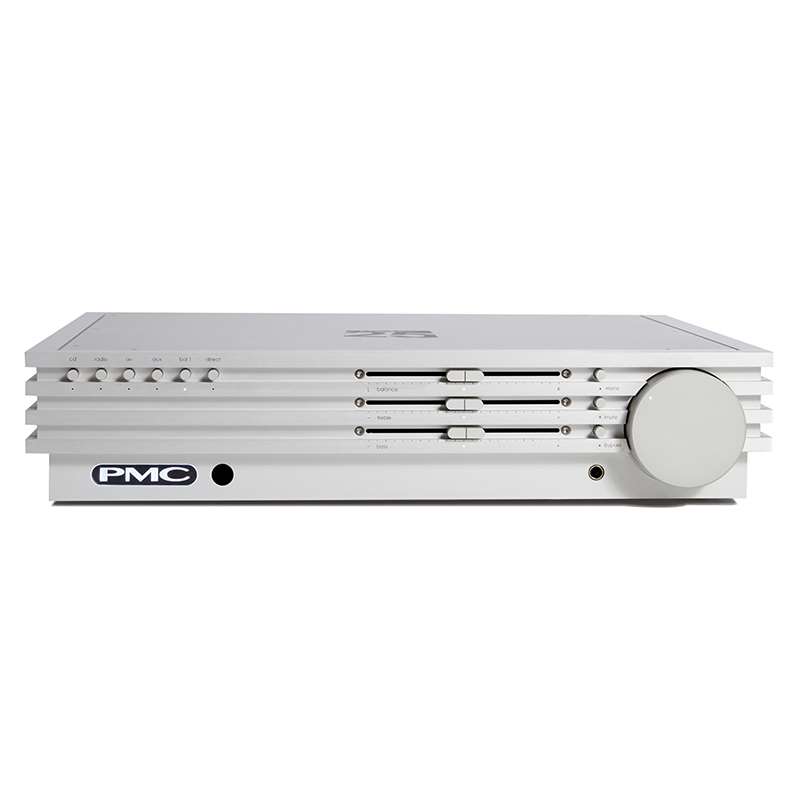

The PMC cor is an analogue integrated amplifier designed and hand-built by PMC in the UK. It is intended for high-resolution playback, following the same design approach used for PMC loudspeakers: musicality, transparency and neutrality, with no added or removed sonic character. Its role is to reproduce music as it is meant to be heard.

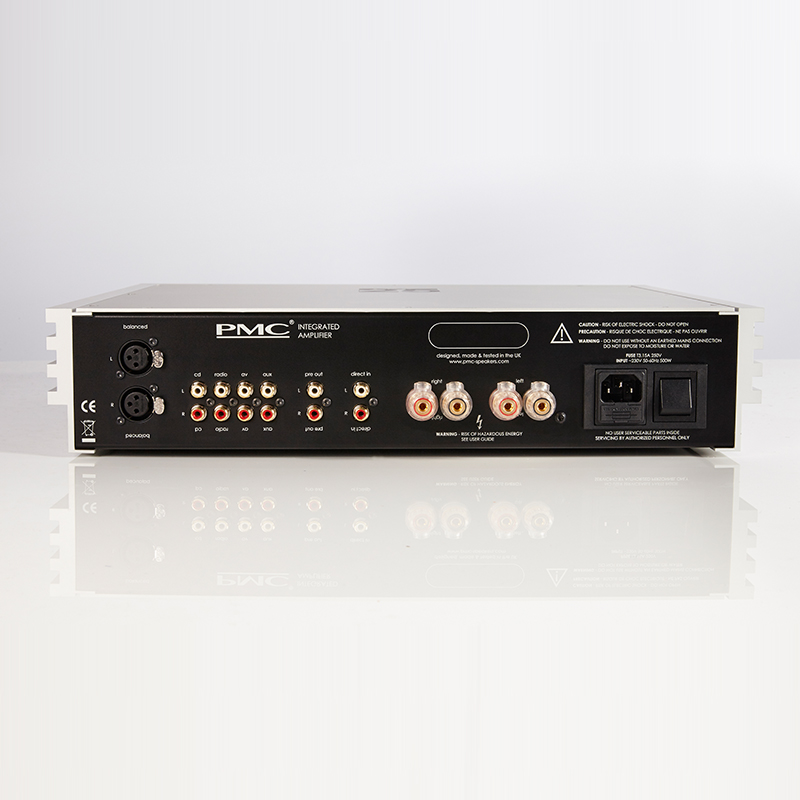

The name cor comes from the dictionary definition of heart in anatomy and soul or mind in a figurative sense. The amplifier operates entirely in the analogue domain, with 4 unbalanced RCA analogue inputs, 1 pair of balanced XLR inputs and a set of direct inputs connected straight to the power amplifier. There are no digital inputs.

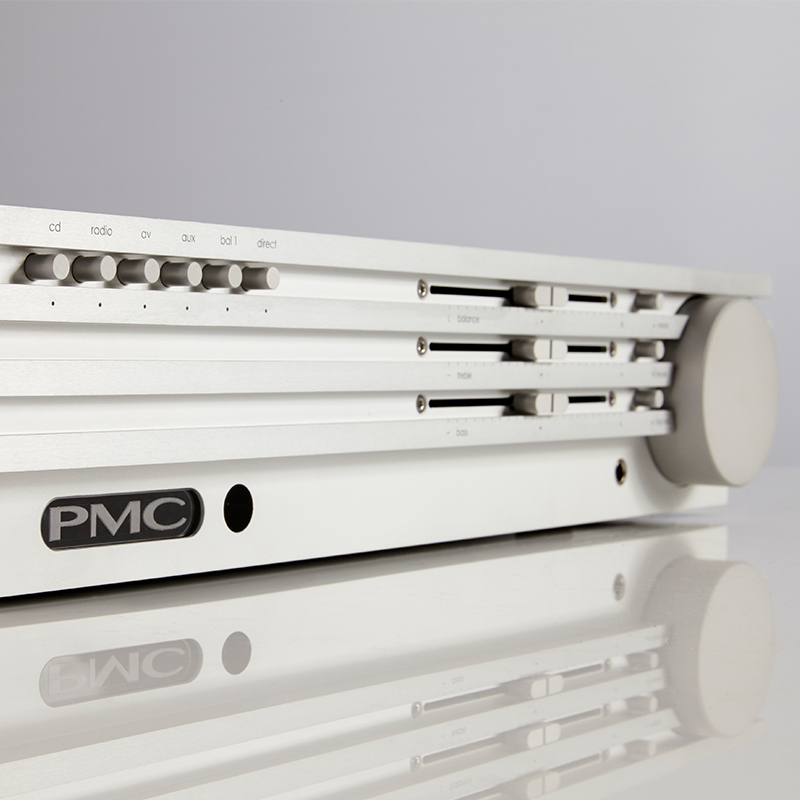

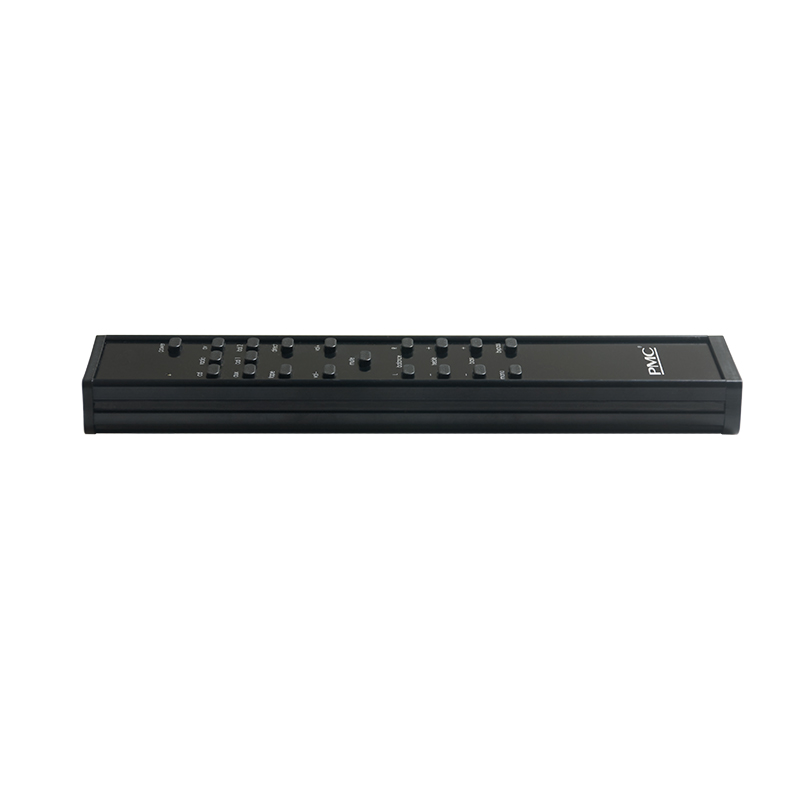

PMC developed each part of the cor with sound purity as the main criterion, selecting components after extensive listening tests. The black PCBs are joined by a volume control, tone fader and balance fader, all motorised using technology from professional mixing consoles. These controls can be operated by remote control, allowing adjustments without leaving your armchair.
The PMC cor integrated amplifier is designed for analogue listening where the character of the recording remains unchanged.
| Type | Pure analogue Class A/B integrated amplifier |
|---|---|
| Inputs | 1 x balanced, 4 x single-ended, direct in |
| Outputs | 4mm binding posts, preamp out |
| Pre-amplifier | |
| Frequency response | 20Hz - 20kHz +0/-0.2dB 5Hz - 80kHz +0/-1dB |
| Maximum gain | 15dB |
| Tone controls | +/- 10dB |
| Input impedance | 25kOhms, unbalanced >14kOhms, balanced |
| THD | 0.001% at 1kHz |
| Maximum input | 5.5Vrms |
| Maximum output | 10Vrms |
| Power Amplifier | |
| Rated output power, 230V mains | 95W into 8Ohms,140W into 4Ohms |
| Frequency response | 20Hz - 20kHz +0/-0.2dB 5Hz - 80kHz +0/-1dB |
| Input impedance | 23.5kOhms |
| Sensitivity | 1V = 100W into 8Ohms |
| Gain | 28.9dB |
| THD (Rated output power into 8Ohms | 0.001% at 1kHz |
| Noise | 101dB A-weighted re. rated output |
| Damping factor | >160 into 8Ohms, 20Hz - 20kHz |
| General | |
| Dimensions | 87.5mm (3.4") H x 432mm (17") W x 401mm (15.8") D - inc. feet |
| Weight | Weight |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 20 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
