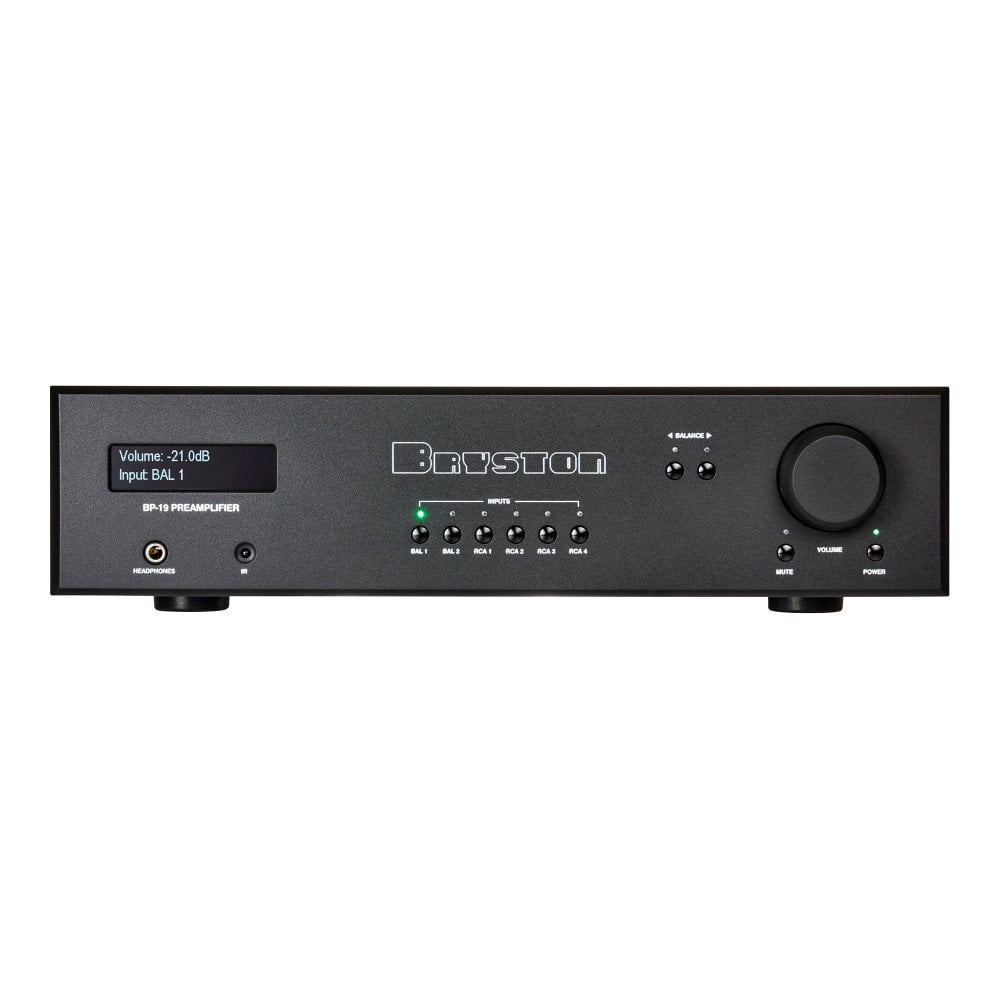

BP-19
The Bryston BP-19 gives a two-channel system precise analogue control, with transparent operation, accurate balance adjustment and flexible fixed or variable connections. Its fully balanced signal path, discrete operational amplifier circuitry and regulated power supply achieve THD+N below 0.0006% while supporting XLR and RCA sources.
Choose the configuration to see its price.
Or speak to a specialist, 01202 911886
The Bryston BP-19 is a high-performance analogue preamplifier developed from technologies introduced in the flagship BR-20. Designed around a fully balanced signal path and carefully selected components, it combines extremely low noise and distortion with the transparency, control and natural presentation expected from Bryston.
At the heart of the BP-19 is Bryston’s optimised discrete operational amplifier circuitry, achieving THD+N of less than 0.0006%. An oversized toroidal power transformer and carefully regulated power supply provide a stable foundation, while the compact circuit layout and closely matched components help maximise channel separation and common-mode rejection.
Connectivity includes 2 pairs of balanced XLR inputs and 4 pairs of RCA inputs. Balanced and single-ended outputs are provided in both fixed and variable configurations, giving the BP-19 considerable flexibility within a high-performance two-channel system.
Volume is controlled by a digitally managed analogue stepped-ladder attenuator with 0.5dB resolution, combining precise adjustment with excellent channel accuracy. Front-panel balance and mute controls are complemented by infrared remote operation, while RS232 and Ethernet connectivity allow integration with compatible control systems.
For vinyl listeners, the BP-19 can also be specified with Bryston’s optional BP-2 moving-magnet phono stage. Moving-coil capability can be added through dedicated step-up transformers, providing a flexible analogue front end for a wide range of cartridges.
Specifications
- Frequency response: 20Hz-20kHz, ±0.05dB
- THD + Noise: <0.0006%, 20Hz-20kHz
- IMD: ≤0.0003%
- Signal-to-noise ratio: -110dBr balanced / -110dBr single-ended
- Inputs: 2 pairs XLR, 4 pairs RCA
- Outputs: Variable and fixed XLR and RCA
- Weight: 5.5kg
- Dimensions: 17 or 19in W × 4.6in H × 13in D
Options
The Bryston BP-19 is available with 17-inch or 19-inch faceplates, including silver, black and selected custom finishes. A 19-inch professional rack-mount version is also available, along with optional moving-magnet and moving-coil phono configurations.
| Frequency Response | 20Hz-20kHz +/- .05dB |
|---|---|
| Signal To Noise: | Balanced Out -110dBr Single Ended Out -110dBr |
| IMD: | ≤0.0003% |
| Dimensions | Inches: 17 or 19 W x 4.6 H x 13 D | Cm: 43 or 48.3 W x 11.6 H x 33 D |
| Weight: | 5.5 kg 12 lbs. |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 20 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
