BHA-1
The Bryston BHA-1 supports both single-ended and balanced headphones through balanced dual-mono circuitry and fully discrete Class A amplification. Six Bryston operational amplifiers, selectable 14dB or 20dB gain, and left and right balance control allow the amplifier to suit different listening setups.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£600.00 initial 20% deposit then £133.33 per month for 18 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.

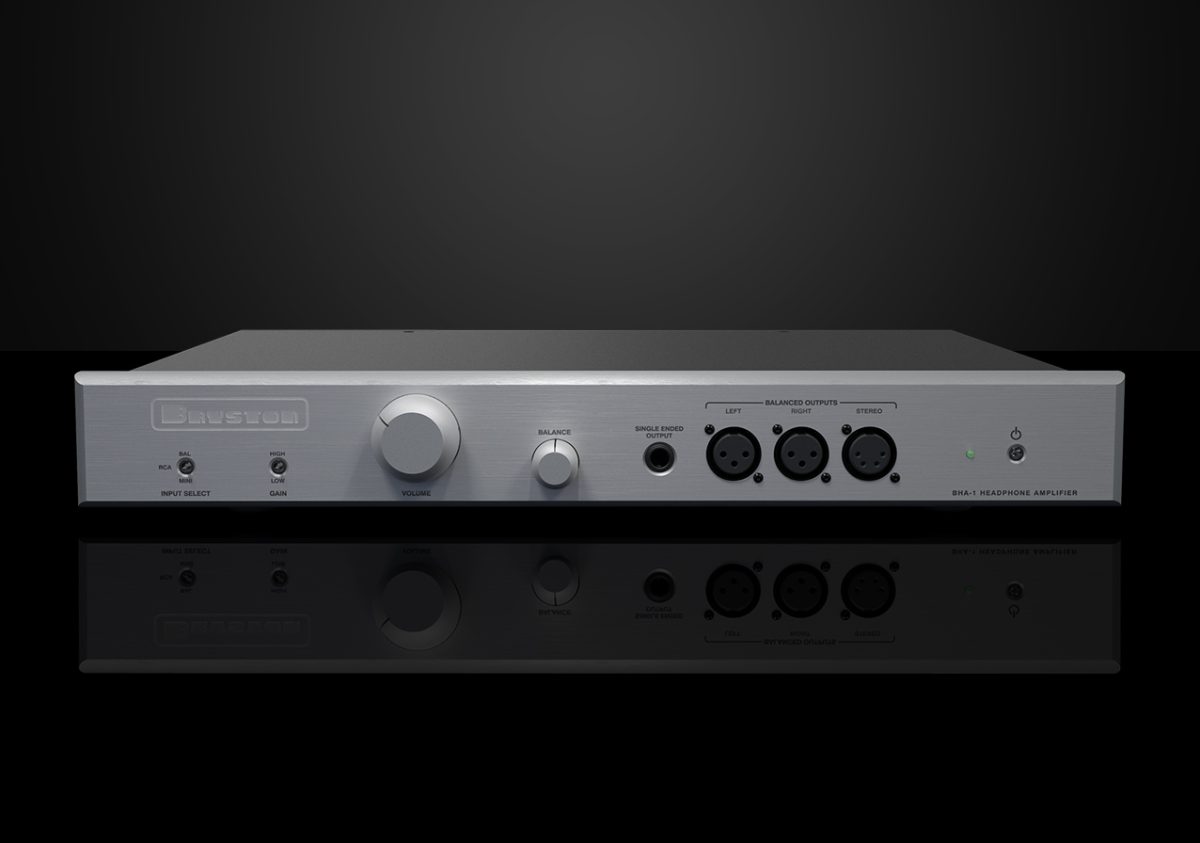

The Bryston BHA-1 Balanced Headphone Amplifier is designed as Bryston’s reference headphone amplifier. It supports both traditional single-ended and balanced headphones.
Features:
- Balanced outputs
- Balanced dual mono circuitry
- Left and right balance control
- 6 fully discrete Class A Bryston operational amplifiers
- 14dB or 20dB gain
- 10k input impedance
- High-quality noble stereo volume control, laser trimmed
- Gold-plated input and output connectors
- Multiple headphone drive capability
Options:
- Silver or Black faceplate, 2U
- 17” or 19” faceplate
- Rack mounting available only in 19″ Black
- Internal or external MPS-2 power supply
- Locking mechanisms on balanced XLR connectors
- Female or male balanced XLR output connectors
| POWER OUTPUT: (continuous) | Maximum: 2 Watts per channel into 32 Ohms at 1% THD |
|---|---|
| INPUT IMPEDANCE: | 10K ohms single ended (unbalanced) |
| SENSITIVITY: | HI (approx 20 dB) setting: 70mV in= 100 mW out into 50 ohms (500mV in = 5V out) |
| FREQUENCY RESPONSE: | 20 Hz to 20 kHz @ ± 0.1 dB. |
| POWER BANDWIDTH: | 1 Hz to over 100 kHz |
| POWER CONSUMPTION: | 50 Watts |
| Inputs: | Balanced XLR Pair, Single Ended Pair (RCA), 3.5mm Stereo Mini Jack (MP3 Player Source, etc.) |
| Outputs: | Balanced XLR (4 Pin Stereo), Balanced XLR Pair (3 Pin Left/Right), ¼” Headphone Jack |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 20 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
