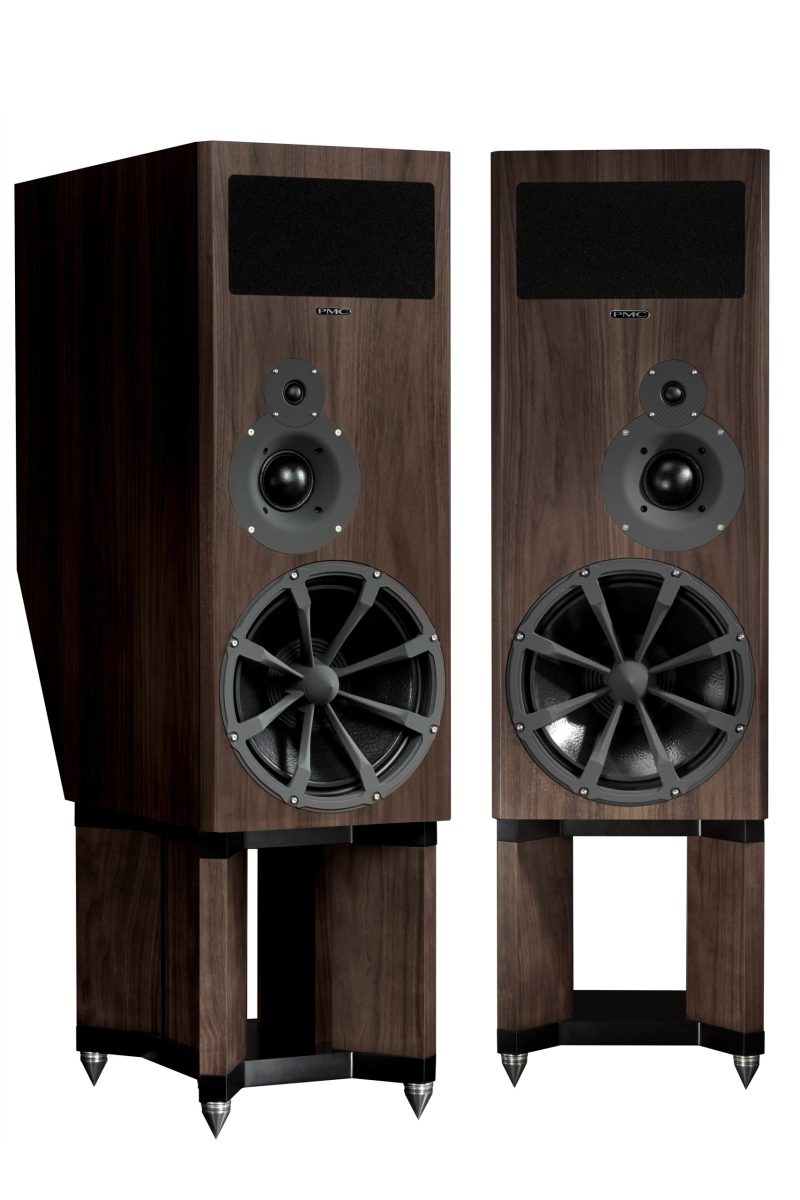

BB5 SE
The PMC BB5 SE, a passive loudspeaker, uses a 15” Radial™ bass unit alongside PMC’s ATL™ bass-loading principle to handle music across a wide dynamic range. Its Advanced Transmission Line enclosure and proprietary drive units reproduce subtle acoustic material with the dexterity and delicacy associated with a compact design.
Choose the finish to see its price.
Or speak to a specialist, 01202 911886
The PMC BB5 SE is a large loudspeaker using a 15” Radial™ bass unit and PMC’s ATL™ (Advanced Transmission Line) bass-loading principle. As the largest model in the range, it is designed to handle music with a wide dynamic range while also reproducing subtle acoustic material with the dexterity and delicacy associated with a compact design.
The enclosure combines PMC’s Advanced Transmission Line construction with proprietary drive units and patented absorption materials and techniques. This approach differs from the relatively simple sealed and ported designs used elsewhere, with the cabinet construction, drive units and absorption system forming the basis of the BB5 SE’s performance.
| Available Finishes | Walnut, Oak, Jet Black |
|---|---|
| Crossover Frequency | 380Hz - 3.8kHz |
| Dimensions | 1040mm (41") H x 432mm (17") W x 790mm (31.1") D - Stand: 500mm (19.7") +Spikes H x 430mm (16.9") H x 518mm (20.4") D |
| Drive Units | LF - PMC 15” 380mm Radial™ driver; HF - 27mm SONOLEX™ soft dome Ferrofluid cooled; MF - PMC75 SE - 75mm soft dome |
| Effective ATL™ Length | 4m (13ft) |
| Frequency Response | 17Hz-25kHz |
| Impedance | 4 Ohm nominal |
| Input Connectors | 3 pairs 4mm sockets (Tri-Wire or Tri-Amp) |
| Sensitivity | 92dB 1w 1m |
| Weight | 87kg (191lbs) & Stands 19kg (42lbs) |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 20 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
