BB5-A SE
The PMC BB5-A SE handles wide dynamic ranges through a 15" Radial bass unit and PMC’s ATL bass-loading principle, while retaining dexterity with subtle acoustic material. Its active amplification is tailored to the loudspeaker and directly coupled to the drive units, improving control, energy transfer, headroom and transient performance.
Choose the finish to see its price.
Or speak to a specialist, 01202 911886

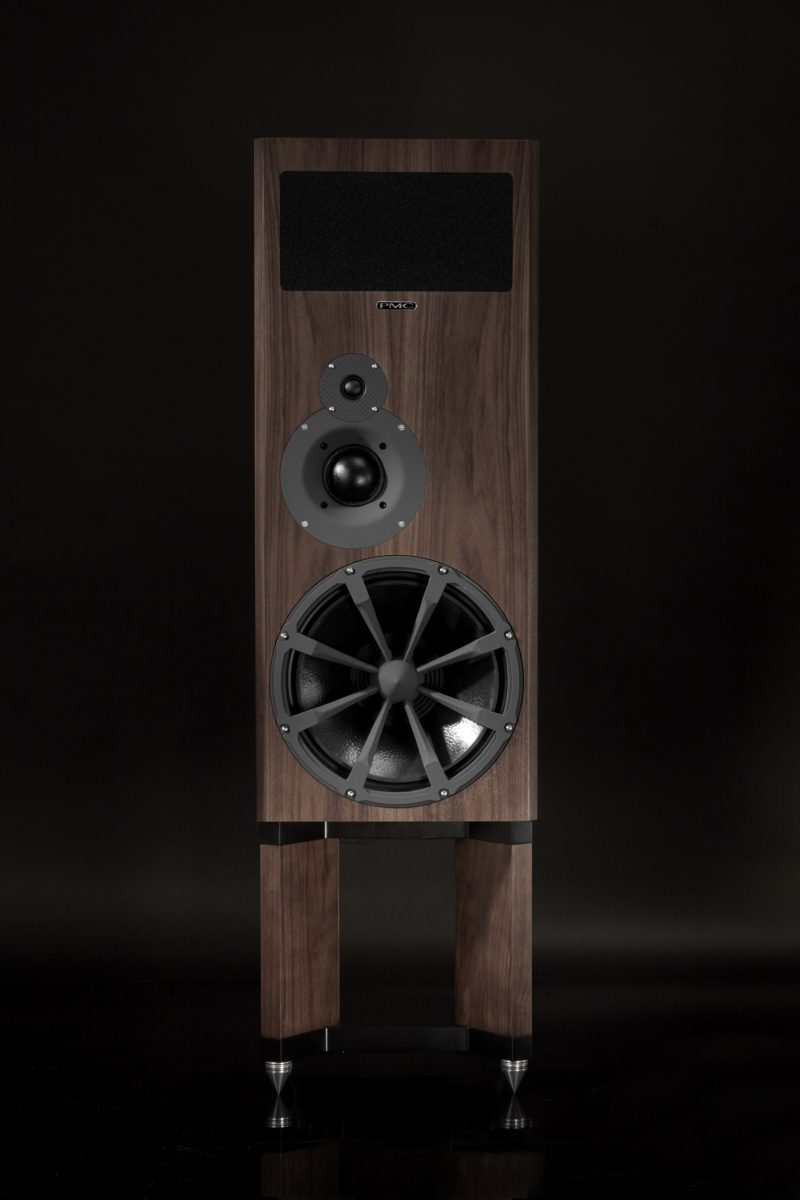

The PMC BB5-A SE is an active loudspeaker with a 15” Radial™ bass unit and PMC’s ATL™ (Advanced Transmission Line) bass-loading principle. It is the largest model in the range, designed to handle music with a wide dynamic range while also reproducing subtle acoustic material with the dexterity and delicacy associated with a compact design.
Its amplification is tailored to the speaker’s design and power requirements, then directly coupled to the drive units for improved control and more efficient energy transfer. This increases headroom and resolution, improves transient performance, and supports a more life-like, natural-sounding and powerful presentation. Frequency controls allow the active system to be adjusted for listening preferences and the individual listening environment. For performance in situ, each speaker is tuned by PMC’s factory-trained installation engineers.
| Available Finishes | Walnut, Oak, Jet Black |
|---|---|
| Crossover Frequency | 380Hz - 3.8kHz |
| Drive Units | LFPMC 15” (380mm) Radial™ driver MF PMC75 3” (75mm) fabric dome HF PMC34 1.3” (34mm) soft dome |
| Amplifier Power per Channel: | LF 900W / MF 300W / HF 300W |
| Effective ATL™ Length | 4m (13ft) |
| Frequency Response | 17Hz-25kHz |
| Impedance | 4 Ohm nominal |

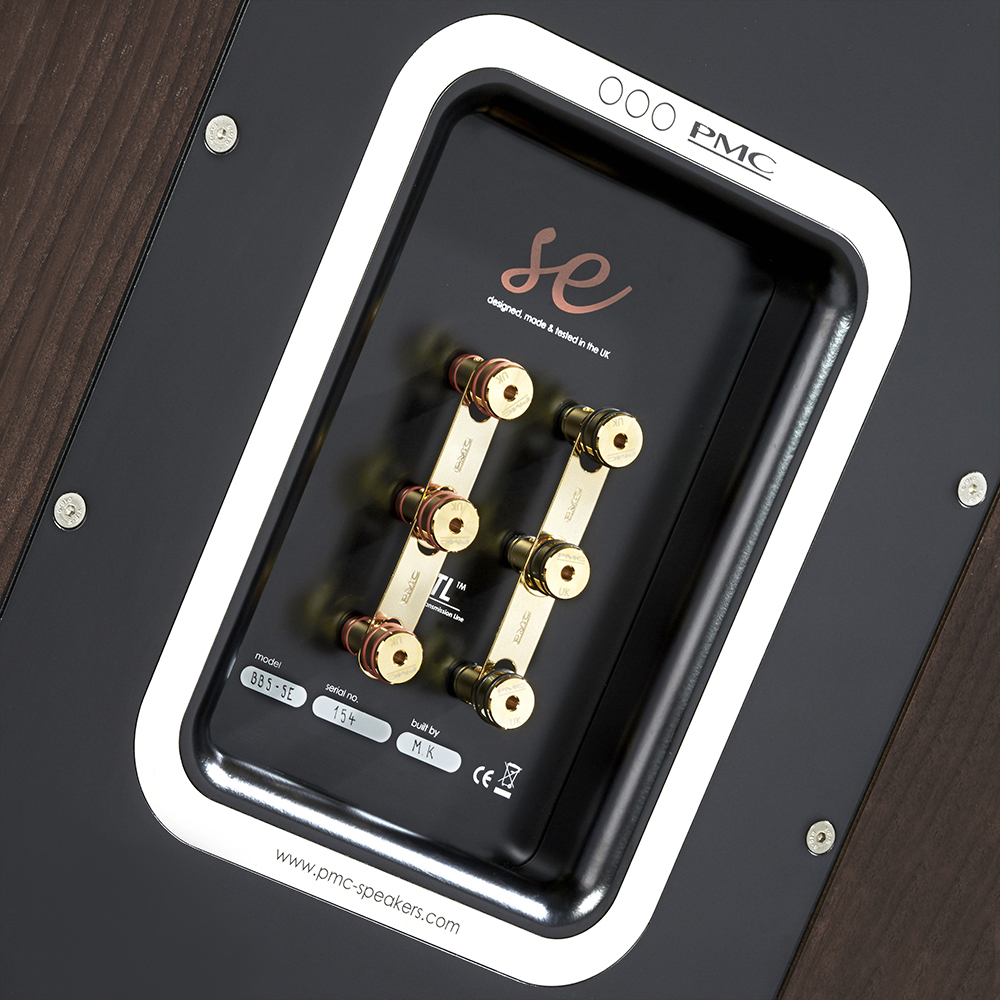

| Input Connectors | 3 pairs 4mm sockets (Tri-Wire or Tri-Amp) |
| Sensitivity | 92dB 1w 1m |
| Dimensions | 1040mm (41") H x 432mm (17") W x 790mm (31.1") D - Stand: 500mm (19.7") +Spikes H x 430mm (16.9") H x 518mm (20.4") D |
| Weight | 87kg (191lbs) & Stands 19kg (42lbs) |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 20 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
