B-135 cubed

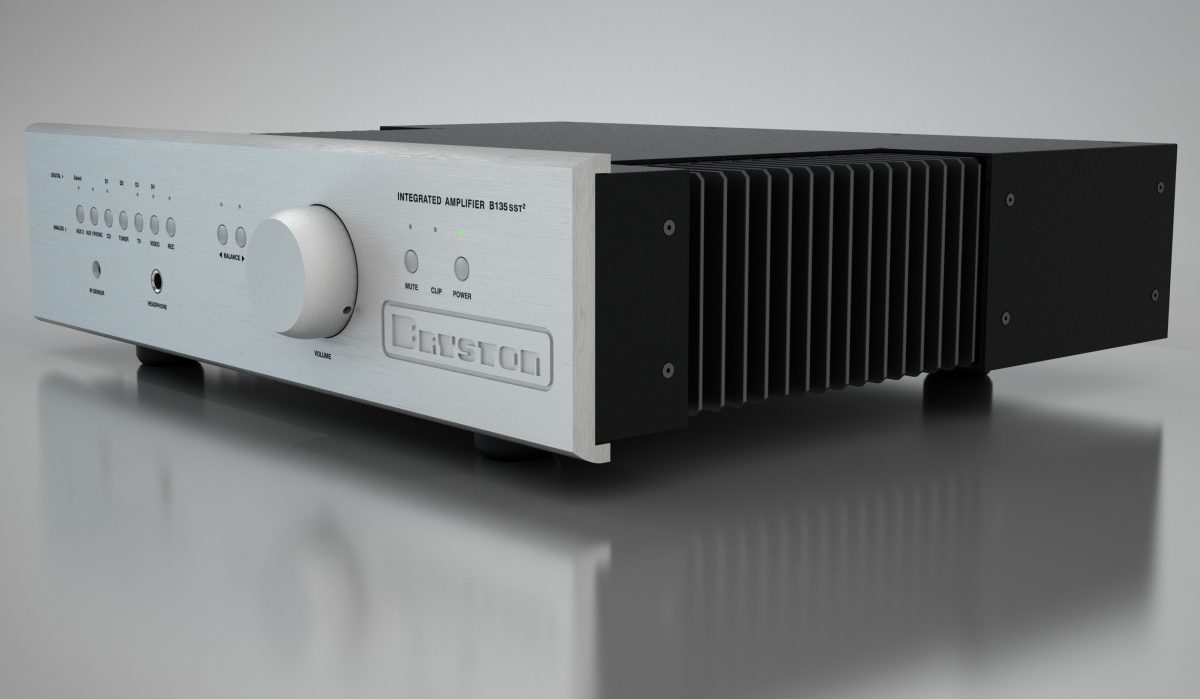

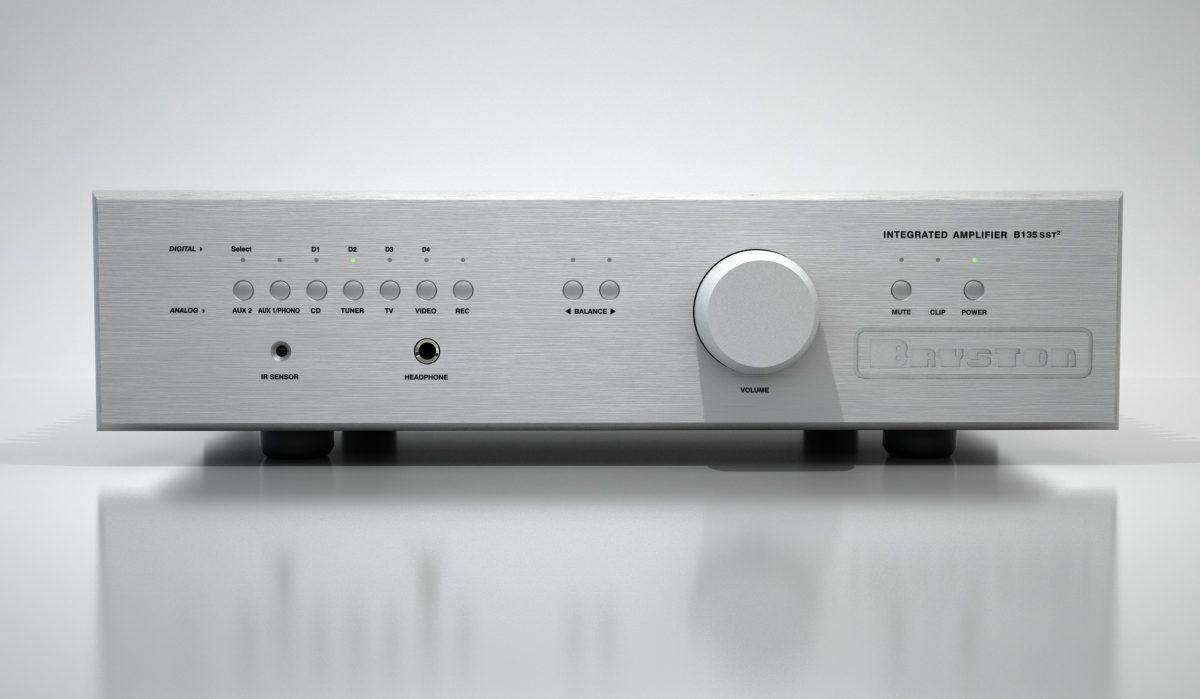

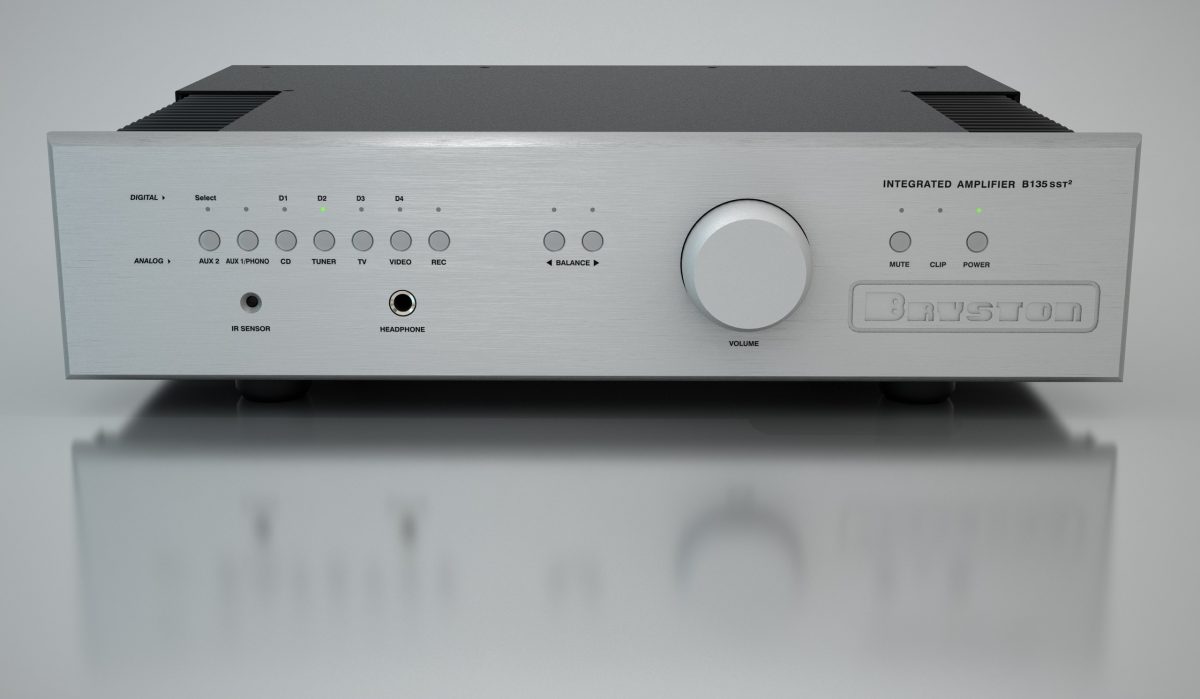

The Bryston B135 SST3 Integrated Amplifier combines an integrated design with the performance of separate audio components, with a focus on transparency and reliability.

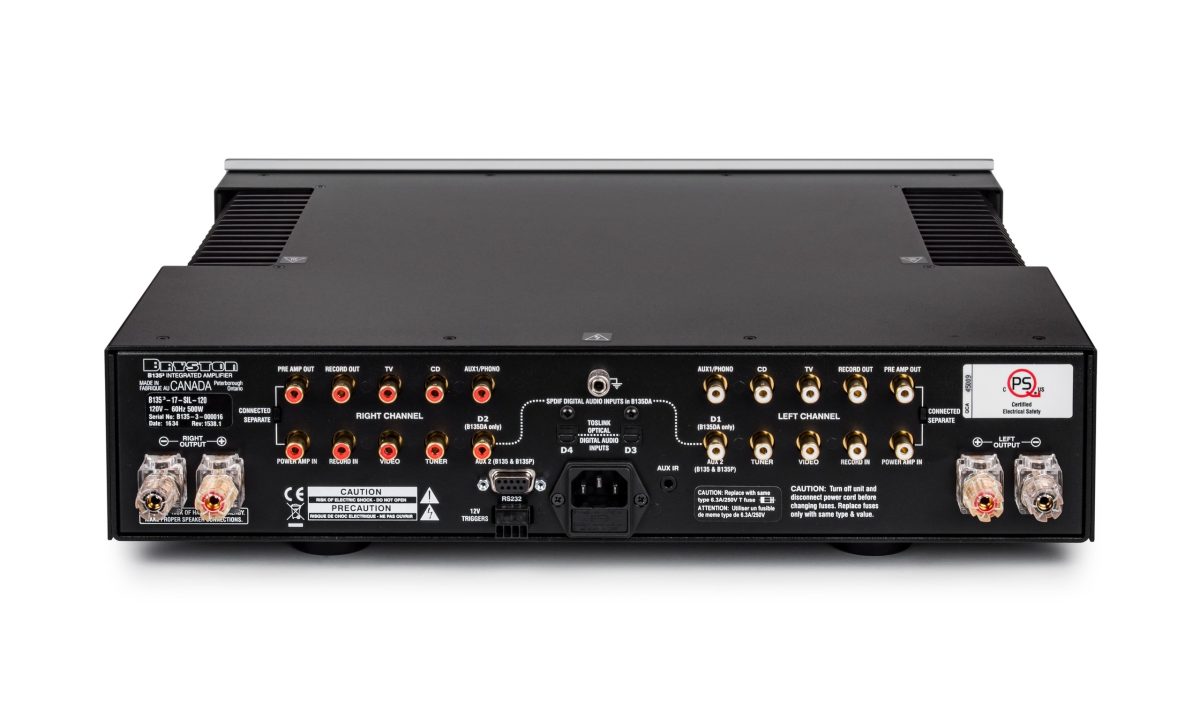

Inputs: 6x RCA single-ended pairs, 2x RCA single-ended pairs (Record In, Power Amp In), 2x optical (TOSLINK)*, 2x SPDIF (RCA)*
Outputs: 2x RCA single-ended pairs (Record Out, Preamp Out), speaker terminals, ¼” headphone jack
Control: RS-232 (DB9), AUX IR, 2x 12V output triggers

Features:

• 135W into 8 Ohms (180W into 4 Ohms)
• Over 30,000 MFD of filter capacitance per channel
• 3 ultra-low-noise power transformers
• Separate ground paths for digital and analogue circuits
• Gold-plated switches, contacts and connectors
• Pre-out and main-in connectors
• Convection cooled and housed in a fully aluminium chassis
• RS-232 serial data port for remote control via Crestron, AMX or similar control systems

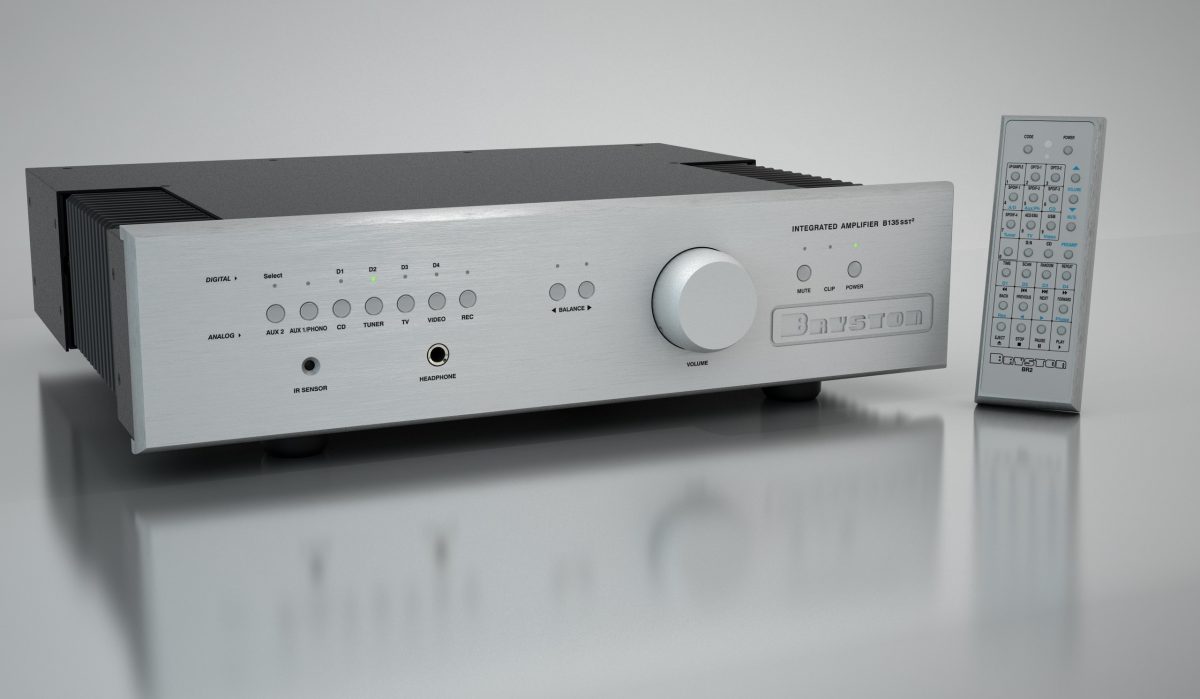

• BR4 remote

Options:

• Silver or black faceplate
• 17” or 19” faceplate, non-rack mountable
• Optional internal DAC or internal MM phono stage
