AMP
The Lumin AMP, a Class AB power amplifier, uses a true dual-mono power supply and amplifier layout to deliver full power simultaneously through both channels while keeping crosstalk to an absolute minimum. Fully discrete voltage and current gain stages, a DC-coupled signal path and intelligent bias and thermal management support direct DAC drive and stable operation.
0% Finance Available
Finance example
£2,199.00 initial 20% deposit then £293.20 per month for 30 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
The LUMIN Amp is a power amplifier designed to focus on performance, with a fully discrete signal path and a dual mono architecture throughout. It can operate in Stereo, Dual Mono or Bridged mode, and its high input impedance and sensitivity allow direct drive from a DAC.
- Multi-Stage transistors amplifier
- Dual Mono power supply and amplifier design
- Fully discrete voltage and current gain stages
- DC-coupled signal path
- Class AB operation
- High input impedence and sensitivty for direct DAC drive
- Intelligent bias and thermal management
- Stereo / Dual Mono / Bridged operation
- CNC single billet aluminium construction
- 600VA custom toroidal transformer
- Built-in overload, overheat and DC protection
True Dual Mono design throughout
The power supply and amplifier stages remain separate for each channel, allowing both channels to deliver full power simultaneously while keeping crosstalk to an absolute minimum. Each channel in LUMIN Amp is a mirror image of the other.

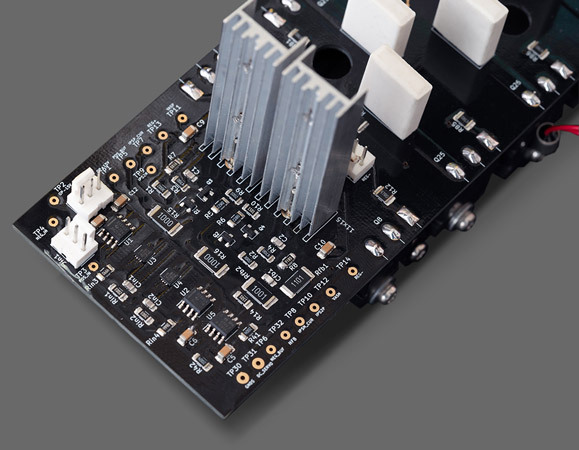

Discrete Transistors
Fully discrete voltage and current gain stages operate in Class AB. The DC-coupled signal path is designed to preserve fine detail with low distortion from music.
Custom low-noise toroidal power supply
LUMIN Amp uses a completely separate dual mono power supply built around a 600VA custom toroidal transformer. Its ultra-low-noise design incorporates advanced voltage regulation circuitry, with intelligent bias and thermal management. Built-in overload, overheat and DC protection are also provided.
The amplifier is housed in a CNC single billet aluminium chassis.
| Operating Mode: (selectable) | Stereo, Dual Mono or Bridged mode |
|---|---|
| Input: (selectable) | 1 x XLR pair (pin 2 hot), 1 x RCA pair |
| Power: | 160W per channel into 8Ω 320W per channel into 4Ω 640W into 8Ω (Bridged) |
| Power Consumption: | Standby |
| Frequency Response: | 20hz - 40000hz ± 0.1db |
| Signal to Noise Ratio: | 103db, unweighted |
| Input Impedance: | 200kΩ Balanced (XLR) 100kΩ Unbalanced (RCA) |
| Protection: | DC, overload and overheating protection |
| Dimensions | 350mm (W), 374mm (D), 104mm (H) 19Kg |
| Delivery | Free UK delivery, fully insured |
|---|---|
| Returns | 14-day returns on unopened accessories |
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
| Payment | Apple Pay, Google Pay and all major cards |
