88PB
The 88PB: you never realised your vinyl sounded this good.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£1,139.80 initial 20% deposit then £189.97 per month for 24 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
Prices exclude valves. Please call for prices.

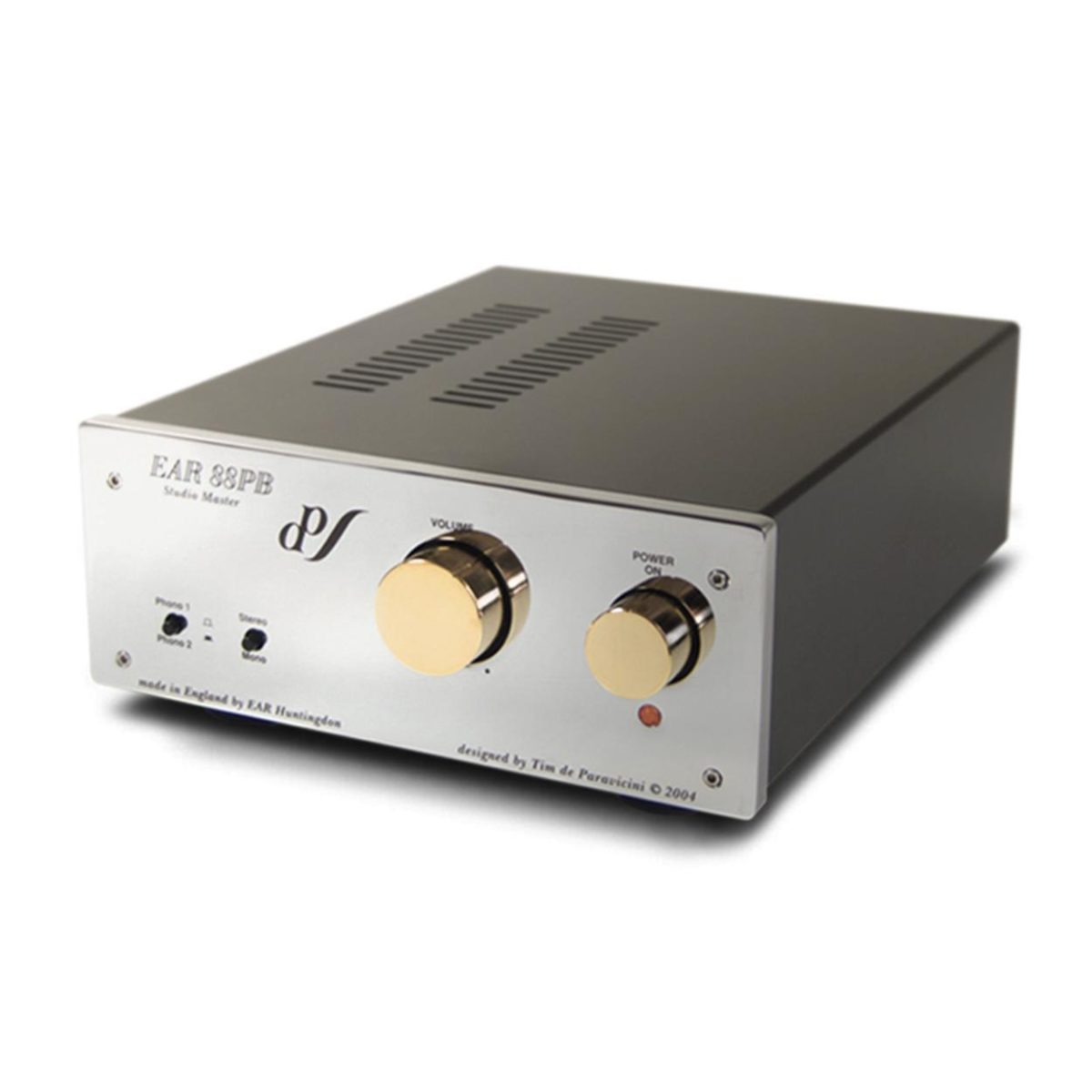

The EAR Yoshino 88PB is a valve phono preamplifier designed for systems with one or two turntables or tonearms. It follows the EAR 834P, one of the first standalone phono stages, and was developed as a more advanced model during the continuing popularity of vinyl. The design draws on Tim de Paravicini’s experience with audio electronics and incorporates several innovations from the Paravicini 312 Control Centre, a fully featured solid-state preamplifier and the solid-state 324 phono stage.
There are 2 inputs, both suitable for moving magnet cartridges. One input can also be switched for moving coil cartridges, using Tim de Paravicini’s input transformers. The moving coil input impedance is adjustable internally.
A volume control allows the 88PB to connect directly to a power amplifier in a single-source system. Its highly linear buffer stage follows the volume control and avoids a cable-dependent high-frequency response. An output transformer provides balanced or single-ended output at low impedance, allowing the preamplifier to drive long cables.
The EAR Yoshino 88PB uses a high-stability circuit to produce the RIAA equalisation curve required for records. Its valve circuit design and output transformer arrangement support the all-round sound quality associated with EAR amplifiers.
| Maximum Gain: | 52db MM, 72db MC (Volume control adjustable) |
|---|---|
| Tube compliment: | 4 x 6922 tubes (or 6DJ8 or 7DJ8) |
| Output Impedance: | 60 ohm |
| Sensitivity: | MM 2.5 mv, MC down to .15MV |
| S/N ratio: | 68db (ref 2.5mv) |
| Distortion: | .2% at 2V |
| Dimensions: | 9.25″W, 11.5″D, 4″H |
| Weight: | 15 LBs |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 3 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
