834
The EAR Yoshino 834, a pure Class A valve integrated amplifier, delivers 50 watts per channel through a parallel push-pull circuit, bringing valve richness together with the drive and control required by a wide range of loudspeakers. Self-biasing operation simplifies ownership, while 4, 8 and 16-ohm outputs and multiple line-level inputs support varied analogue systems.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£1,099.80 initial 20% deposit then £183.30 per month for 24 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.

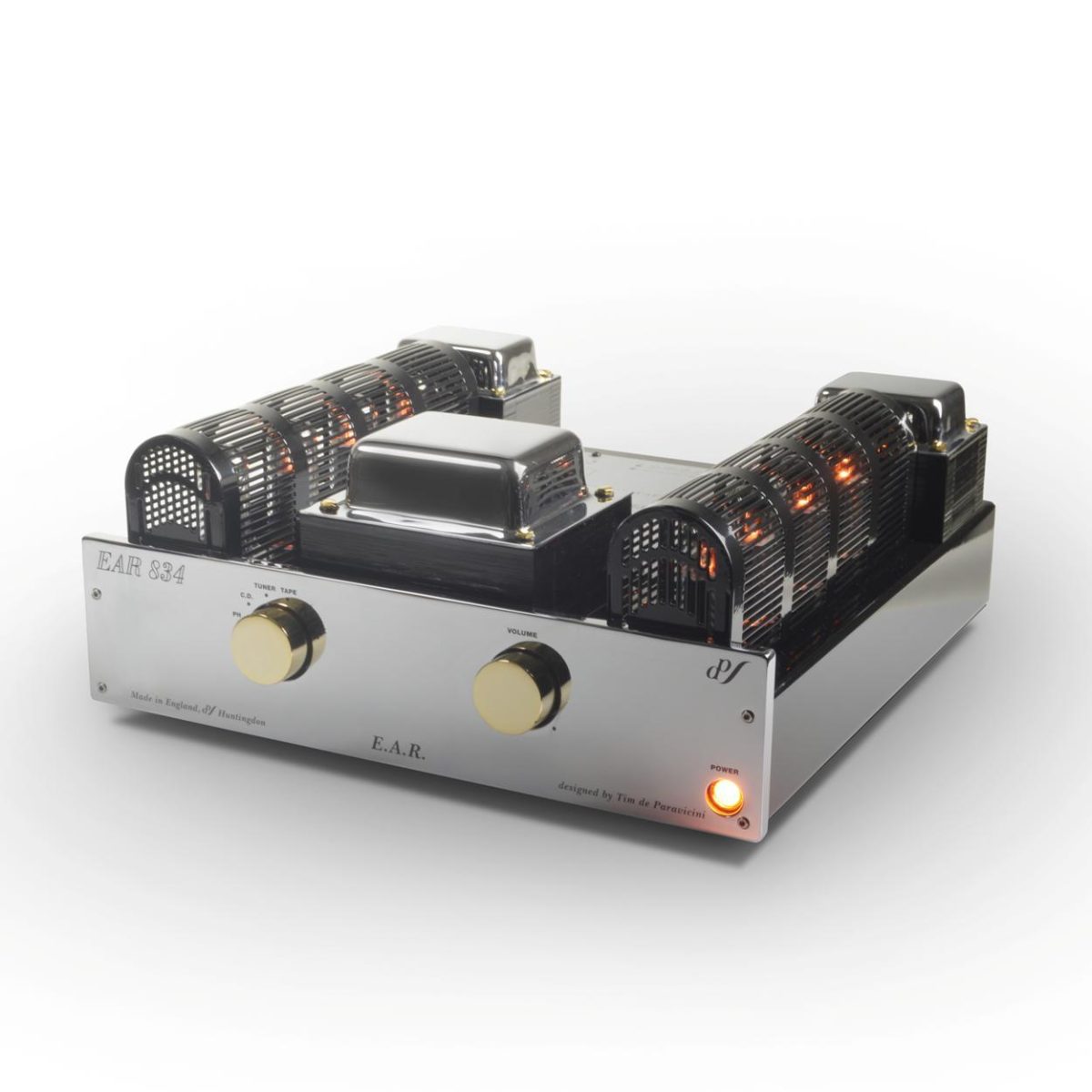

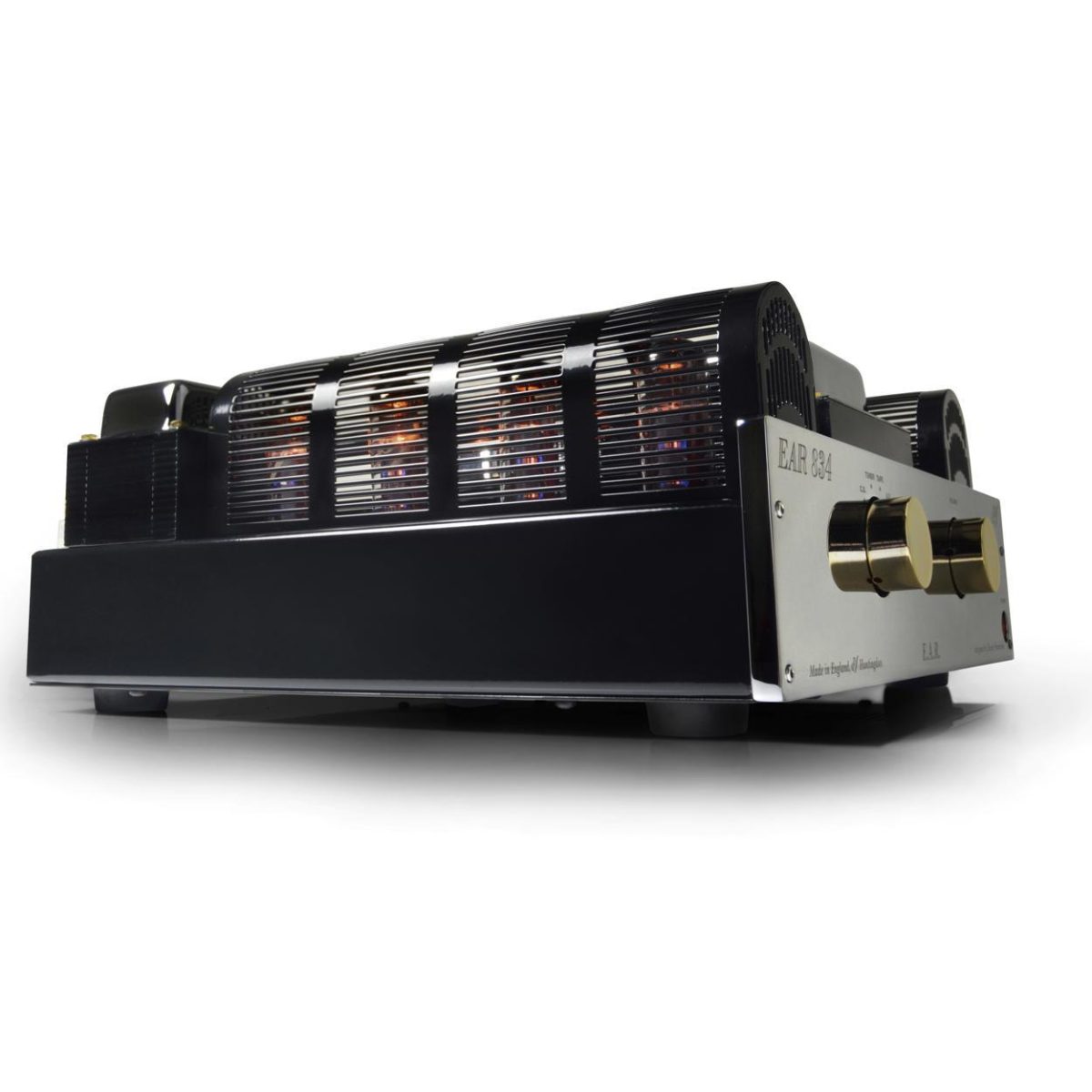

The EAR Yoshino 834 is a Class A valve integrated amplifier with a parallel push-pull circuit and an output of 50 watts per channel. It is designed to combine the richness and fluidity associated with valve amplification with the drive and control needed by a wide range of loudspeakers.
Eight EL34 output valves are used alongside ECC83 and ECC85 small-signal valves. The self-biasing circuit simplifies operation, while loudspeaker outputs are provided for 4, 8 and 16-ohm loads. Multiple line-level inputs allow the EAR Yoshino 834 to serve as the centre of a complete analogue system.
Push-pull operation is maintained from input to output, with low overall feedback. The circuit has a broad power bandwidth, and the 20kg construction supports a presentation described by its combination of power, openness and natural expression, with musical refinement and dynamic scale.

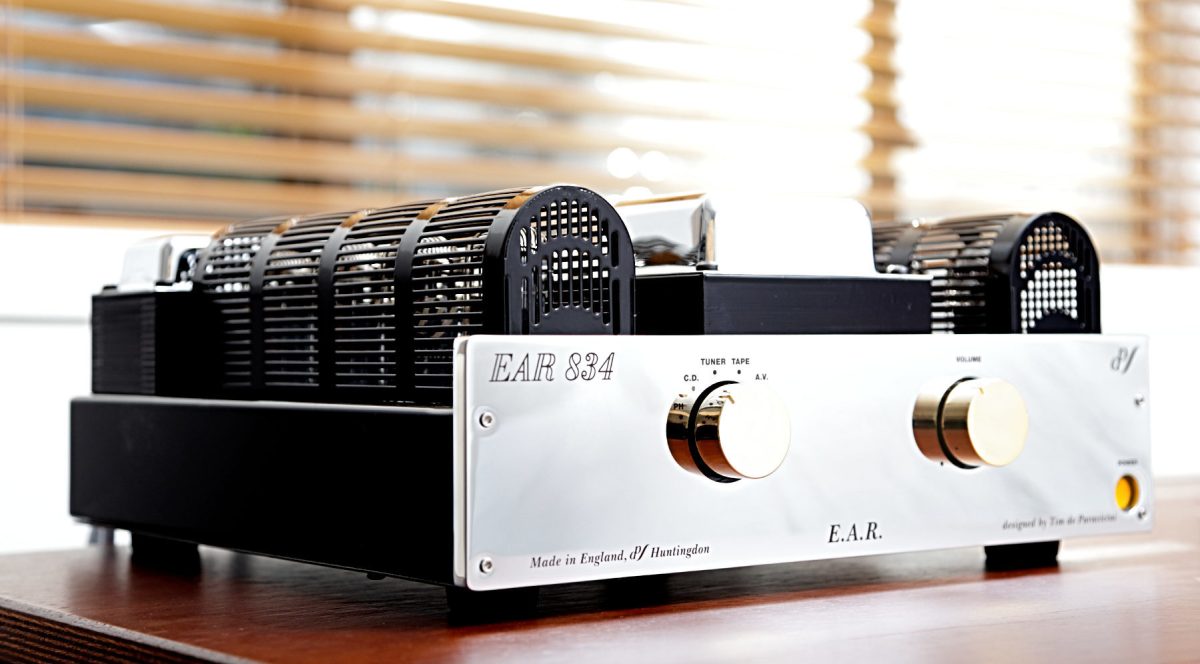

The EAR Yoshino 834 has a chrome fascia and a classic control layout, giving its traditional valve engineering a distinct visual character. Its design is intended for listeners who value tonal richness, natural texture and an engaging musical presentation.
| Valves list | 2 x ECC83, 2 x ECC85, 8 x EL34 |
|---|---|
| Power output | 50 watts/channel (30Hz – 15kHz at 1% THD int) |
| Power consumption | 200 watts total |
| I.M.D. | Less than 1% at any level from 10mW to 50 Watt |
| Output Damping Factor | 12 |
| Power bandwidth | 15Hz – 40kHz at less than 3% THD |
| Input sensitivity | 200mV |
| Signal-to-noise ratio | 85dB |
| Size | W 16” (405mm), D 16” (405mm), H 6” (150mm) |
| Weight | 20kg |
| Input impedance | 47k Ohms |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 3 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
