803 D5
Bowers & Wilkins 803 D5, a loudspeaker with the Turbine Head configuration, uses a Diamond dome tweeter and Continuum cone to deliver precise, open and detailed reproduction. As the most compact 800 Series Diamond model with this arrangement, it also uses enhanced Matrix cabinet construction and aluminium Space Frame Bracing to reduce unwanted resonance.
Choose the finish to see its price.
Or speak to a specialist, 01202 911886
Exceptional performance, refined for more spaces
With its more compact proportions, the 803 D5 brings reference-quality Bowers & Wilkins sound to a wider range of living and listening spaces, without compromising performance or design.
Featuring our Diamond™ dome tweeter and Solid Body Tweeter-on-Top, the 803 D5 combines proven technology with new innovations, including an enhanced Matrix™ with Space Frame Bracing and an aluminium top plate with damping collar. Together, these technologies deliver an exceptionally precise, open and immersive listening experience.

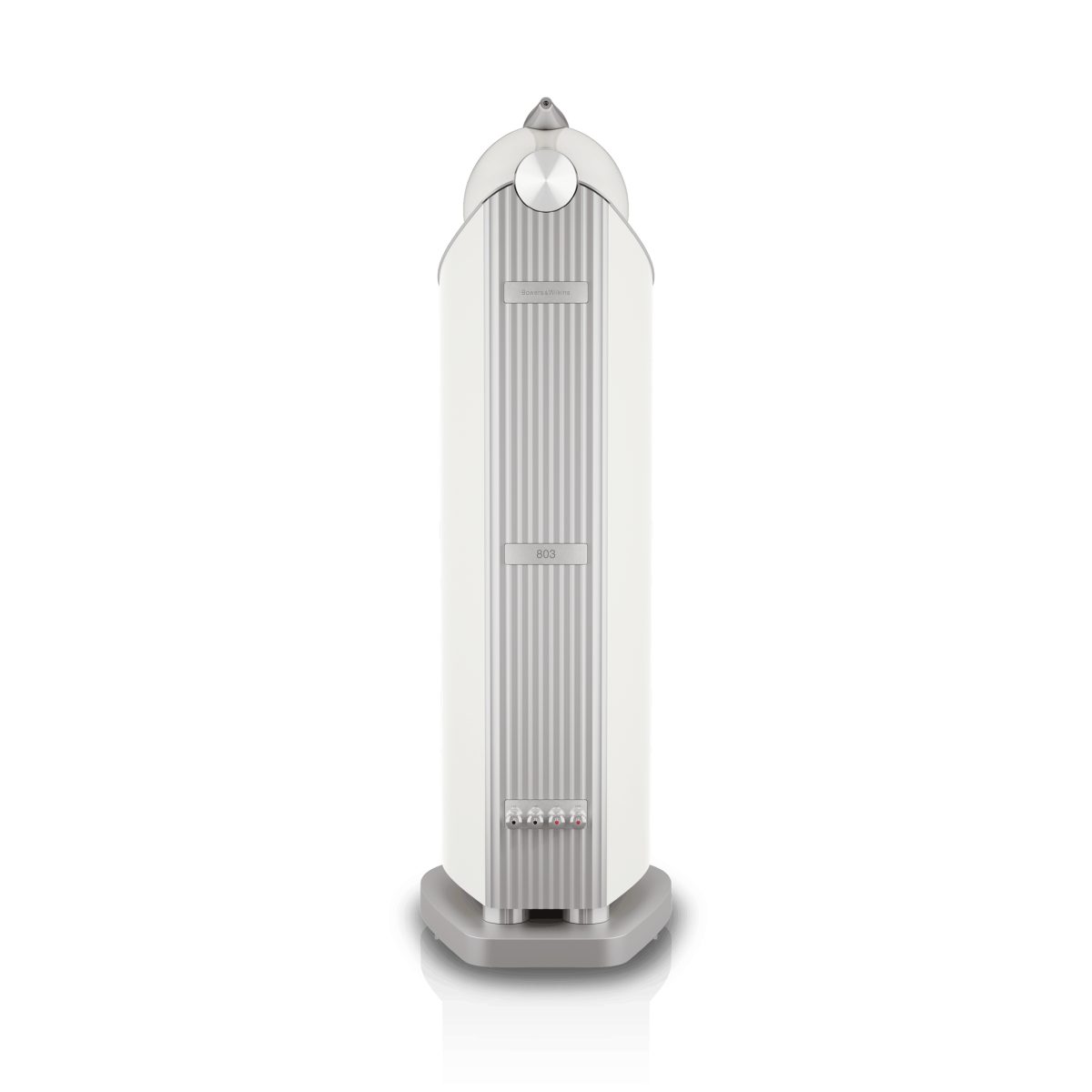

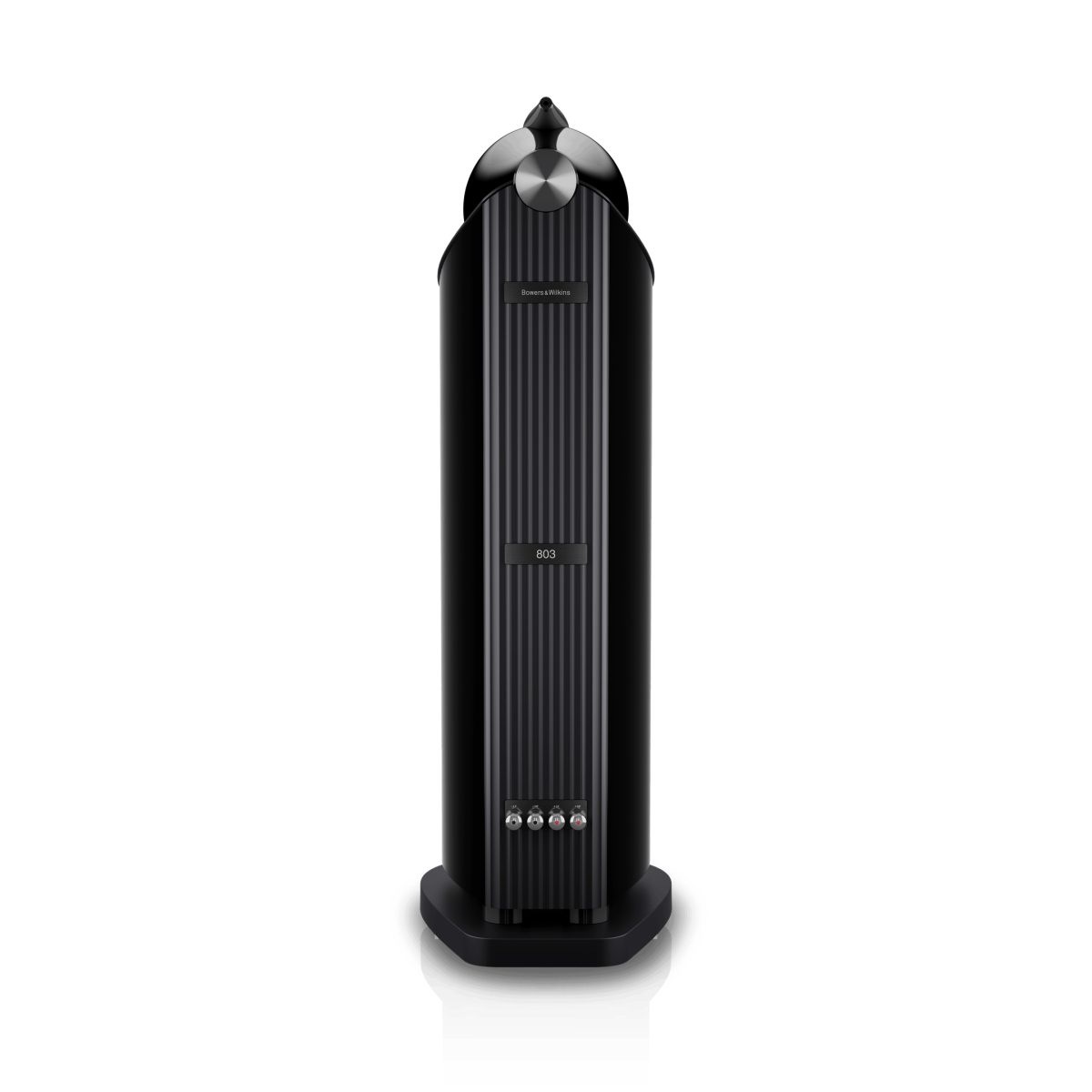

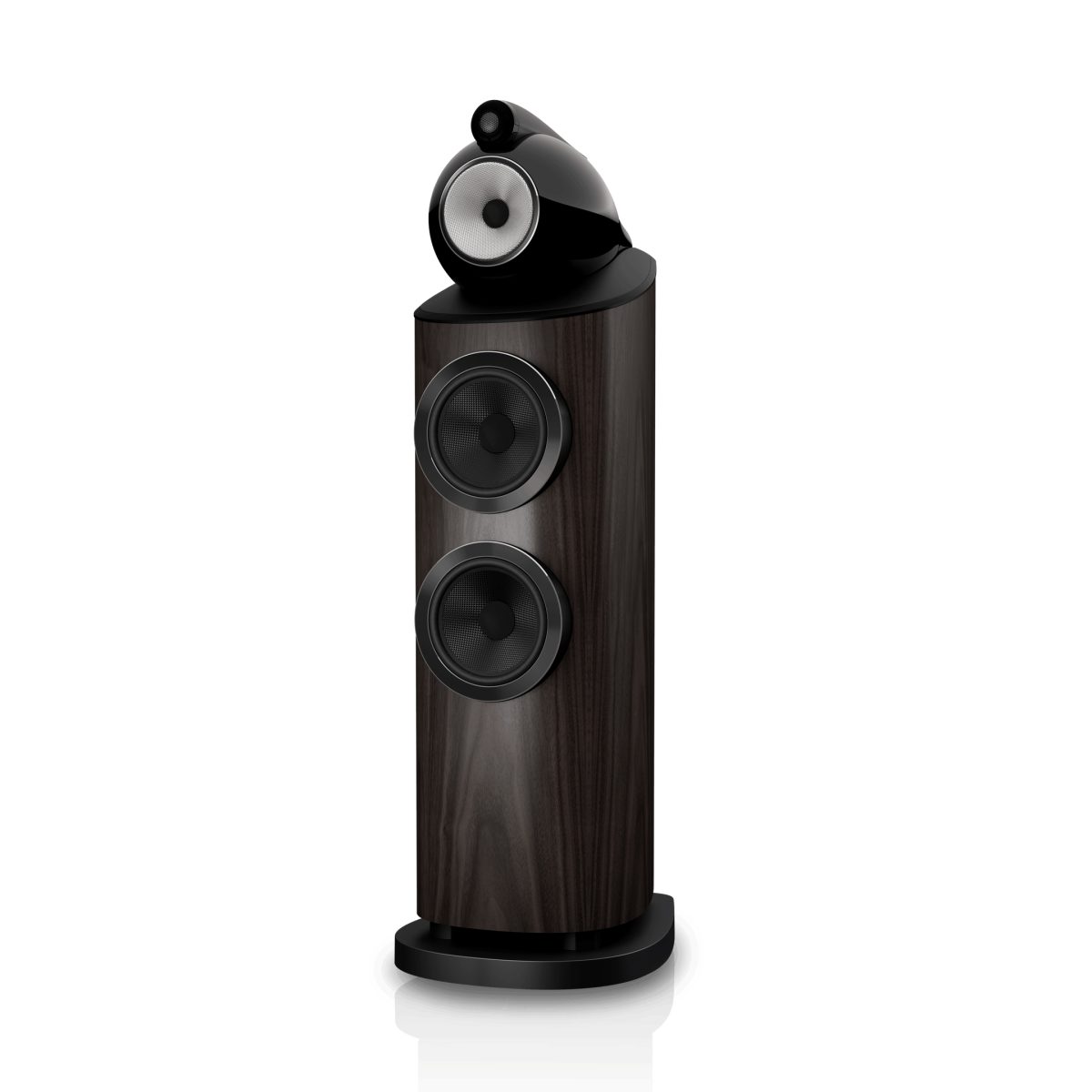

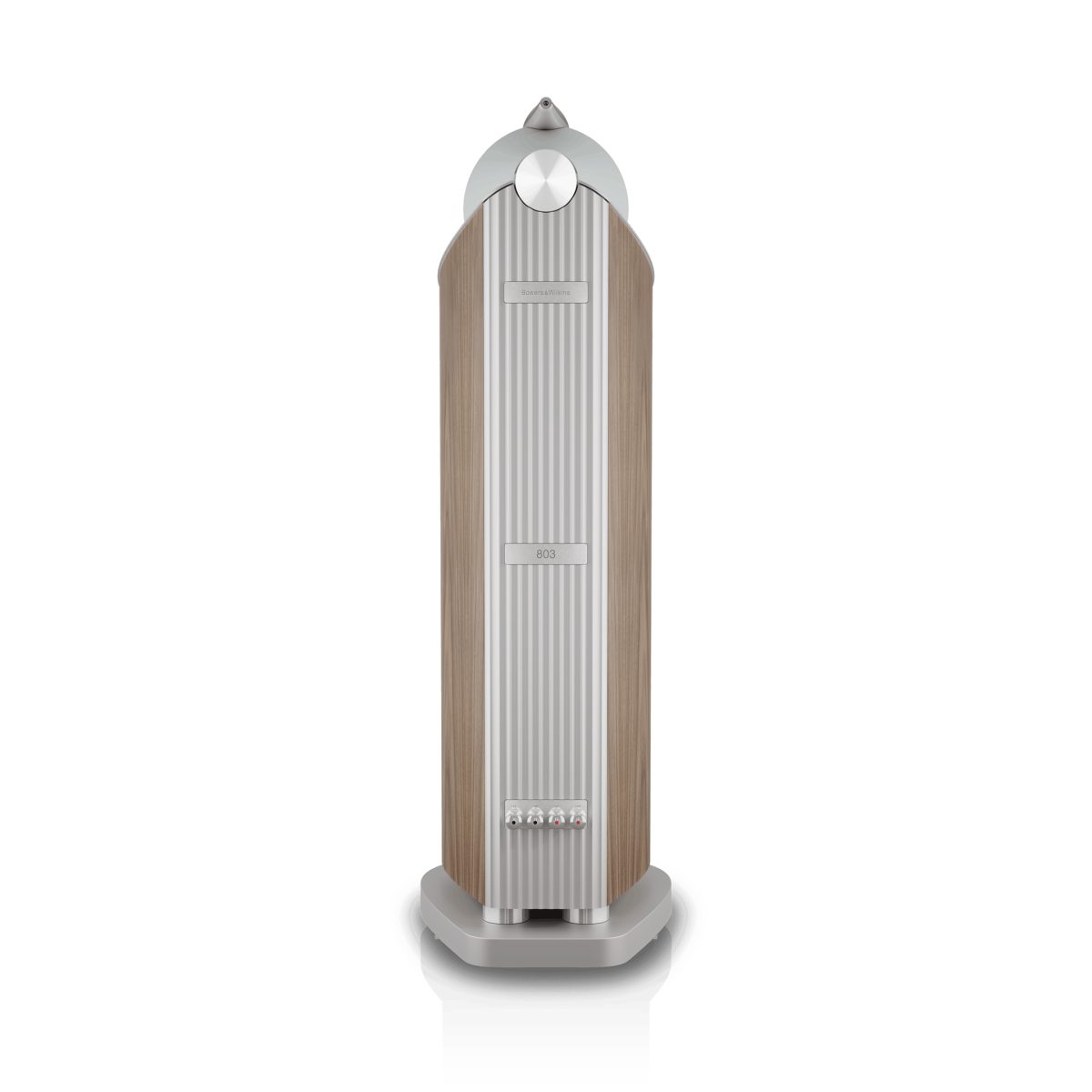

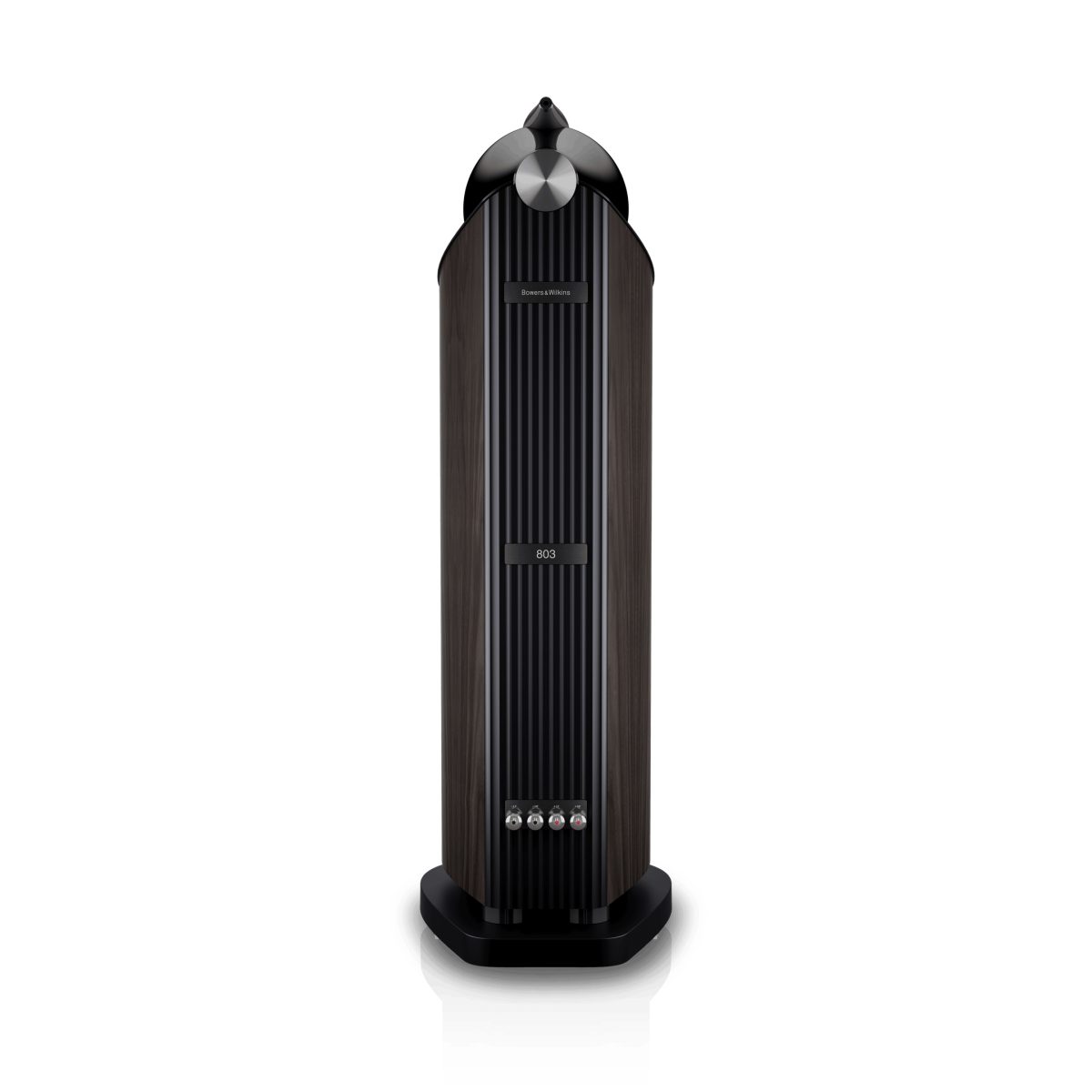

Available in Stealth Black, Warm White, Light Walnut and Dark Walnut, each finish is complemented by matching Leather by Connolly trim, making the 803 D5 as distinctive in appearance as it is in performance.
Ultimate drive unit technology
The 803 D5 brings together our most advanced drive unit technologies to deliver exceptionally pure, detailed sound. Its Diamond™ dome tweeter extends the break-up frequency to 70kHz, revealing remarkable clarity, precision and openness, while the Continuum™ cone reproduces voices and instruments with natural, lifelike detail.
Optimised for pure performance
Every model in the new 800 Series Diamond range benefits from enhanced acoustic engineering. The upgraded Matrix™ cabinet construction reduces unwanted resonance, helping to create a more natural and convincing soundstage.
Aluminium Space Frame Bracing and an all-new aluminium top section further strengthen the cabinet, helping the 803 D5 deliver a spacious, immersive and highly controlled listening experience.
Crafted to be better by design
Every element of the 800 Series Diamond has been shaped by the science of sound. The cabinet's continuous curved form helps minimise unwanted reflections, while a solid aluminium spine provides exceptional rigidity.
The distinctive Tweeter-on-Top and Turbine Head further isolate the drive units from cabinet interference, allowing the 803 D5 to deliver music with greater precision, transparency and realism.
Performance and design are not separate considerations. With the 803 D5, every detail has been engineered to serve both.
| Technical features | Diamond dome tweeter Solid body Tweeter-on-Top Continuum™ cone FST midrange Anti-Resonance plug Biomimetic Suspension Turbine Head Matrix™ Aerofoil™ base cones Flowport™ |
|---|---|
| Description | 3-way vented-box system |
| Drive units | 1x ø25mm (1in) Diamond dome high-frequency 1x ø130mm (5in) Continuum cone FST midrange 2x ø180mm (7in) Aerofoil™ bass |
| Frequency range | 6dB 14Hz to 35kHz |
| Frequency response | 19Hz to 28kHz (+/-3dB) |
| Sensitivity | 90dB |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 80Hz – 20kHz <0.3% 100Hz – 8kHz |
| Recommended amplifier power | 50W – 1000W into 8Ω on unclipped programme |
| Dimensions & Weight | Height: 1165mm (45.8 in) including tweeter and plinth Width: 301mm (11.9 in) cabinet only, 359mm (14.1in) including plinth Depth: 473mm (18.6in) including grille and terminals, 499mm (19.6in) including plinth 63.7kg (140.3lbs) |
