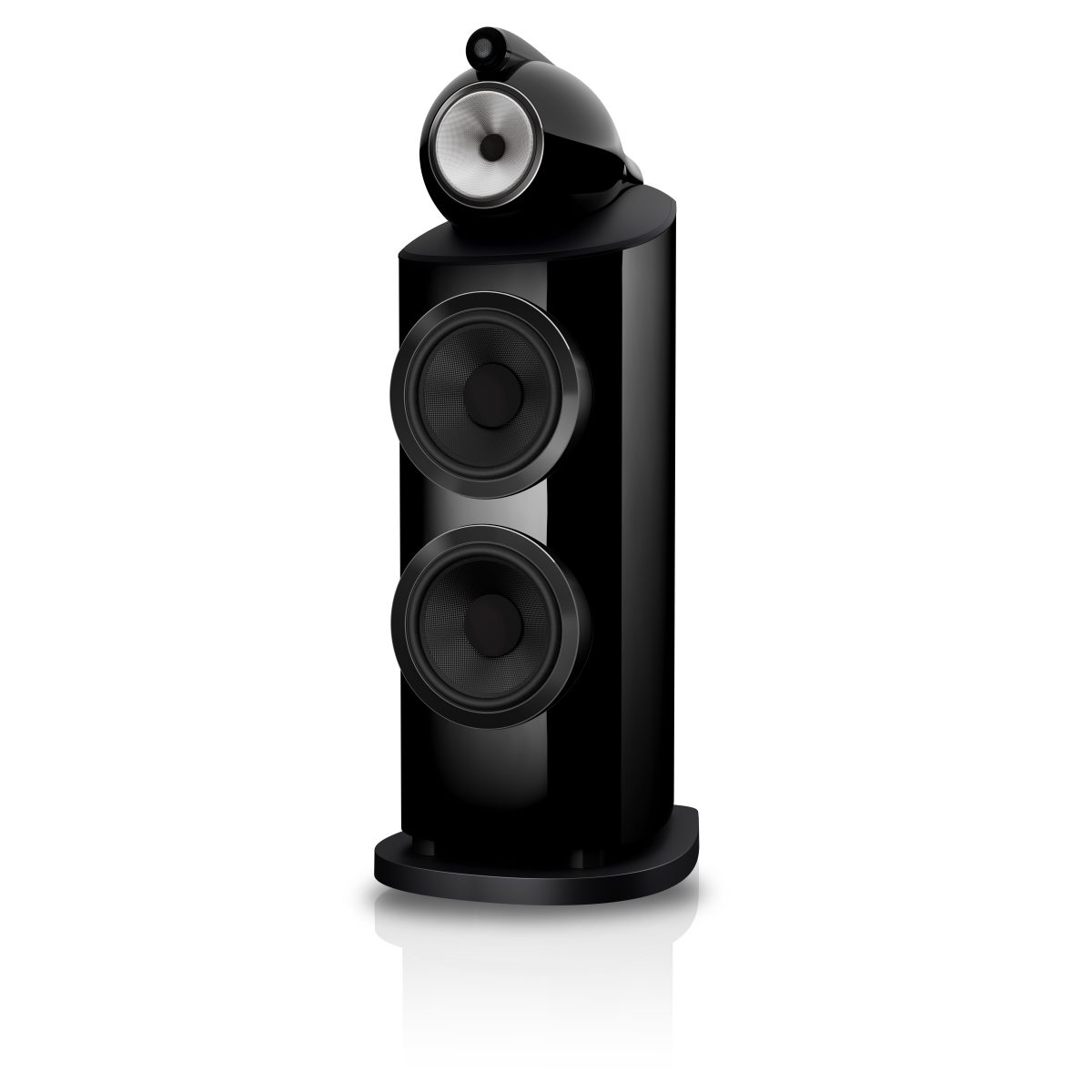

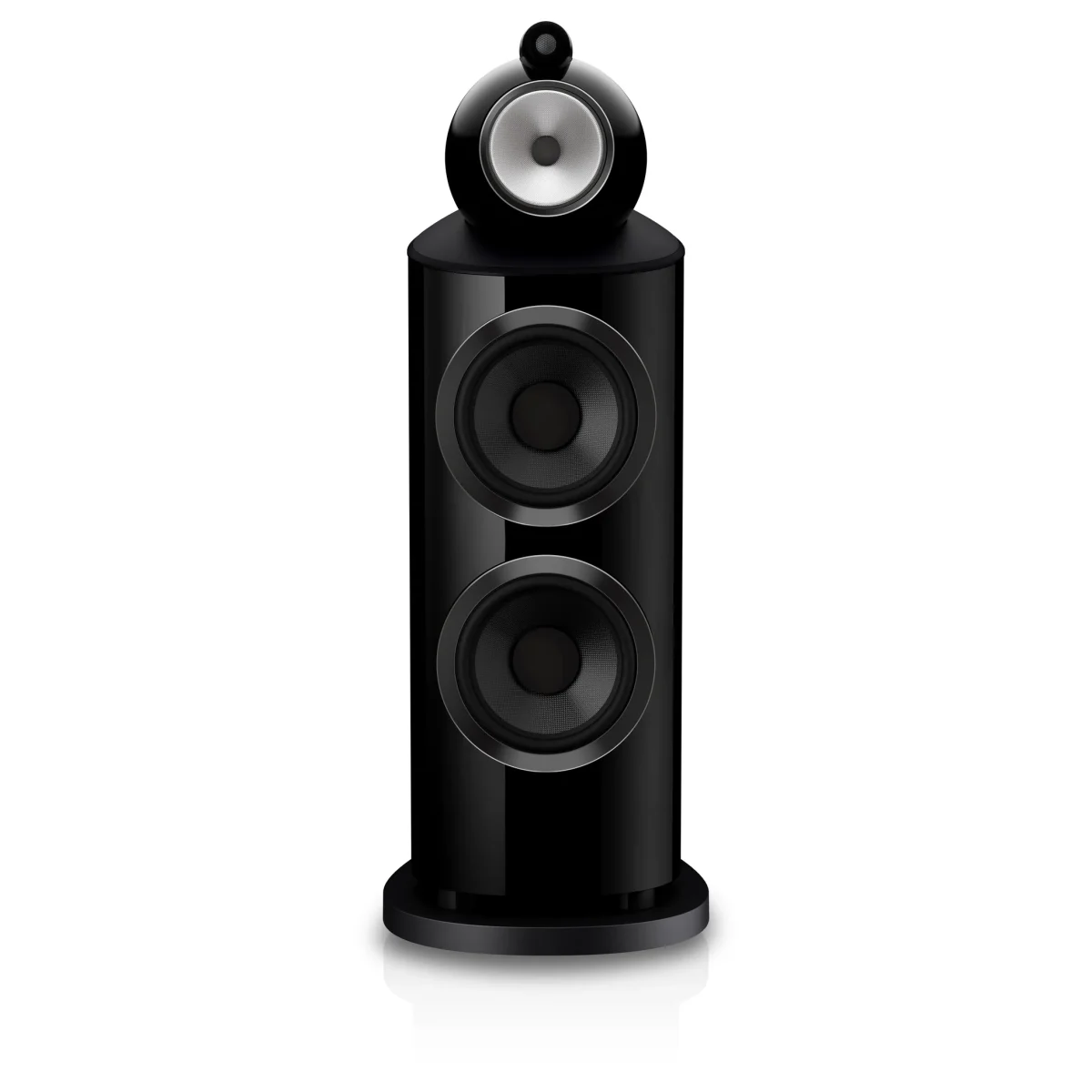

801 D5

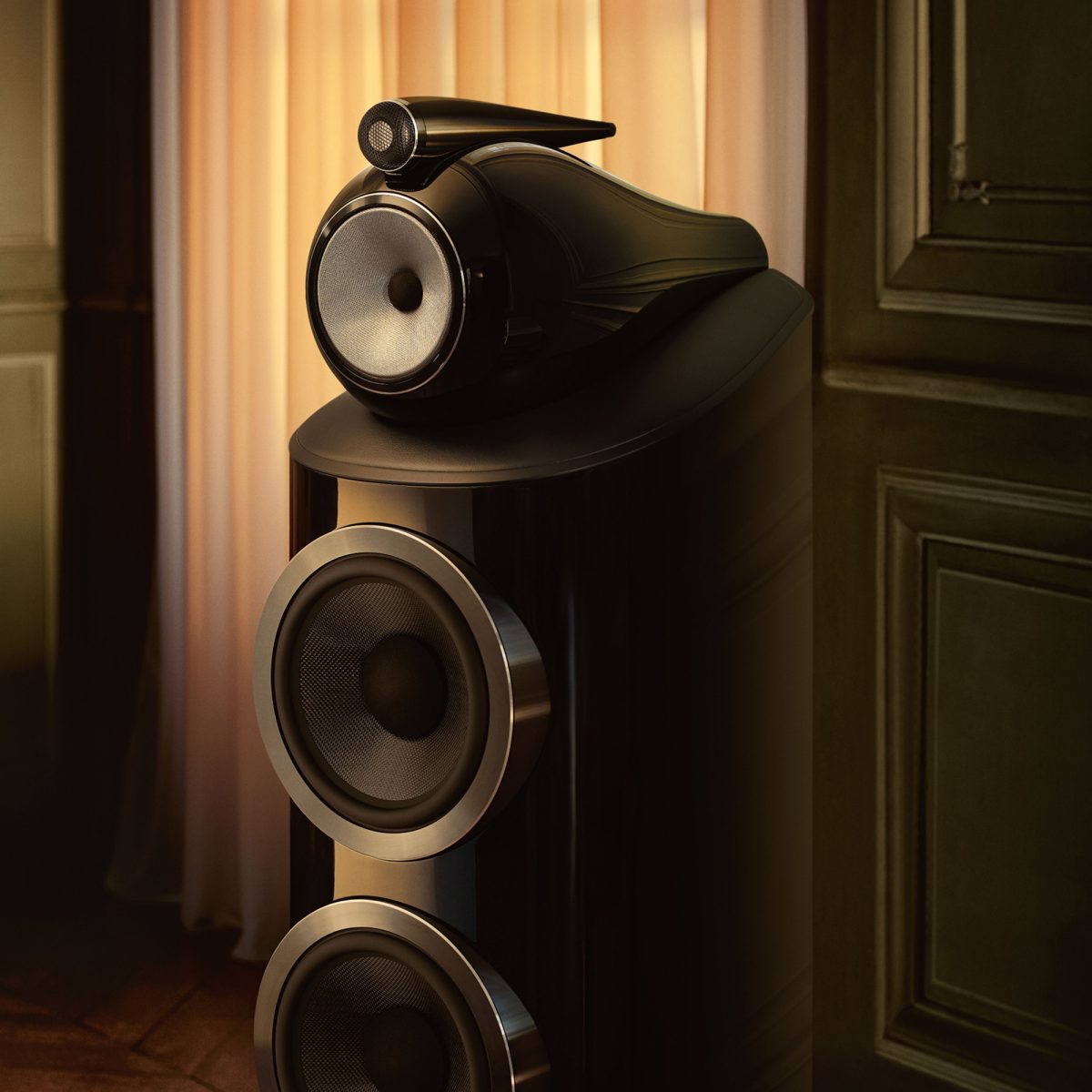

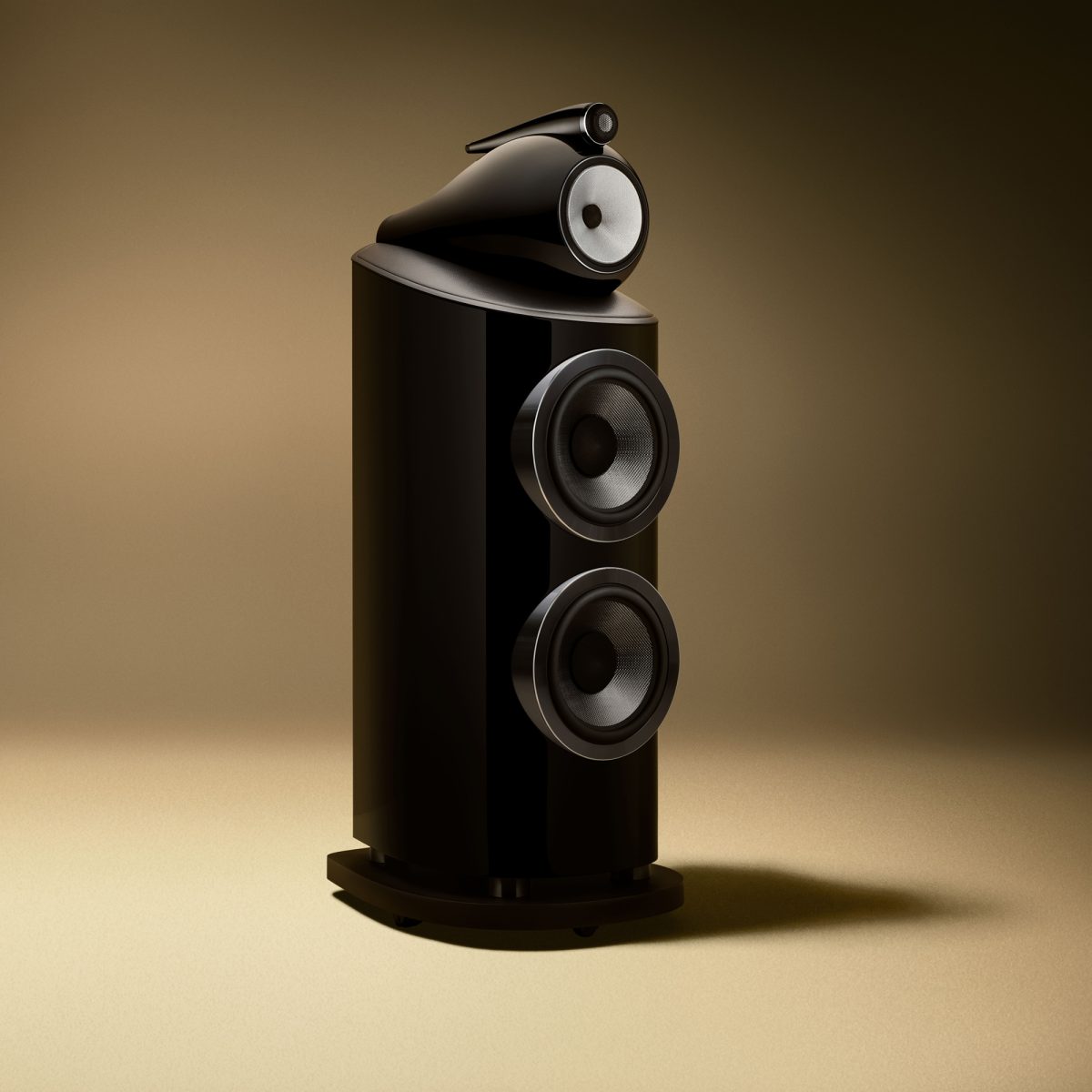

Bowers & Wilkins 801 D5 reproduces voices and instruments with detail and natural expression through its Diamond Dome tweeter and Continuum cone. Its Matrix cabinet, aluminium Space Frame bracing and Tweeter-on-Top architecture suppress unwanted resonance and reflections, supporting controlled imaging and transparency.
Choose the finish to see its price.
Or speak to a specialist, 01202 911886
Engineered for professional recording studios and discerning listeners alike, the 801 D5 brings together Bowers & Wilkins' most advanced technologies to deliver uncompromising, reference-quality sound.
From its Diamond Dome tweeter and optimised drive units to Space Frame bracing and an upgraded plinth, every element has been refined to maximise performance. This purposeful blend of evolution and innovation is housed within an elegantly crafted cabinet, shaped by the science of sound and finished to the highest standards.

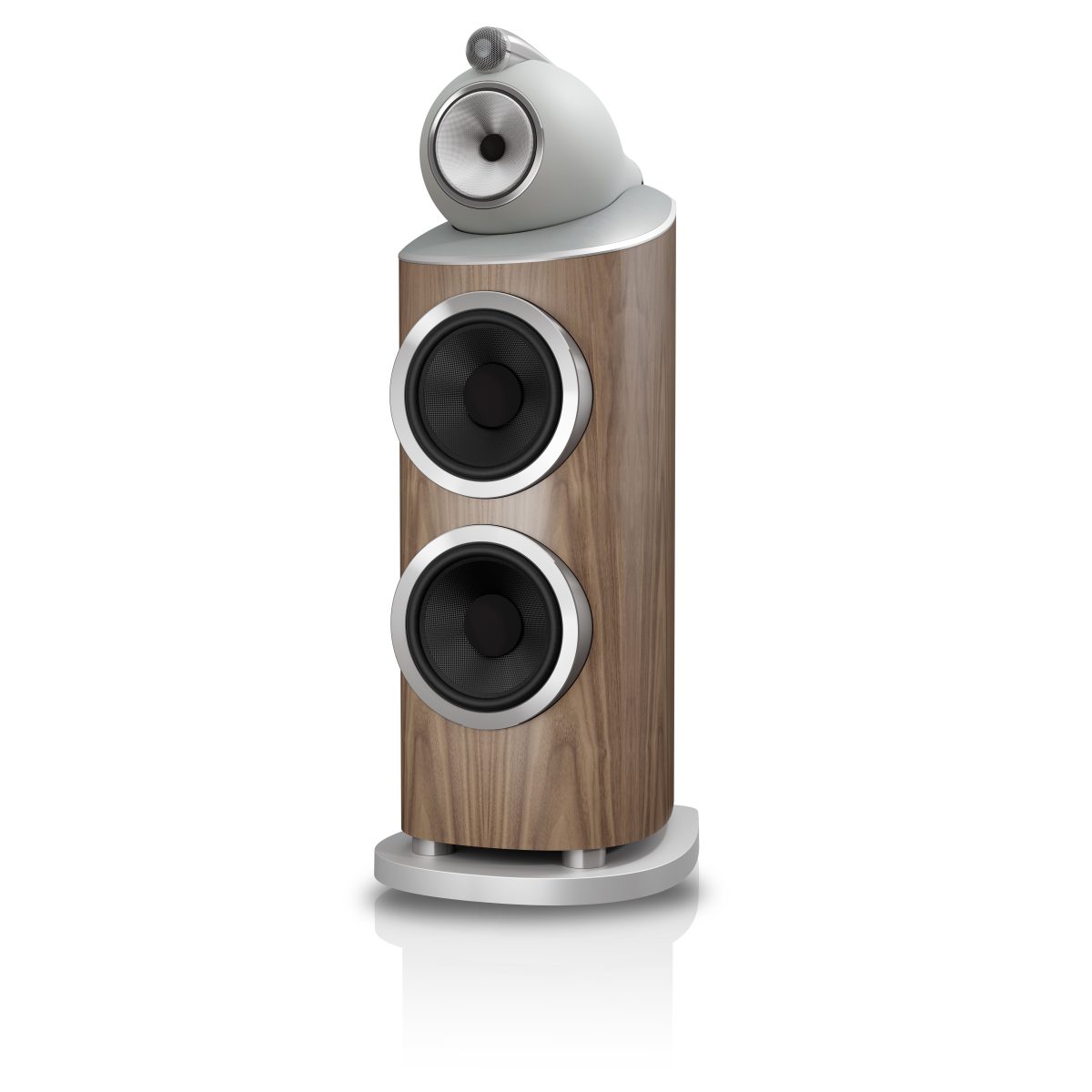

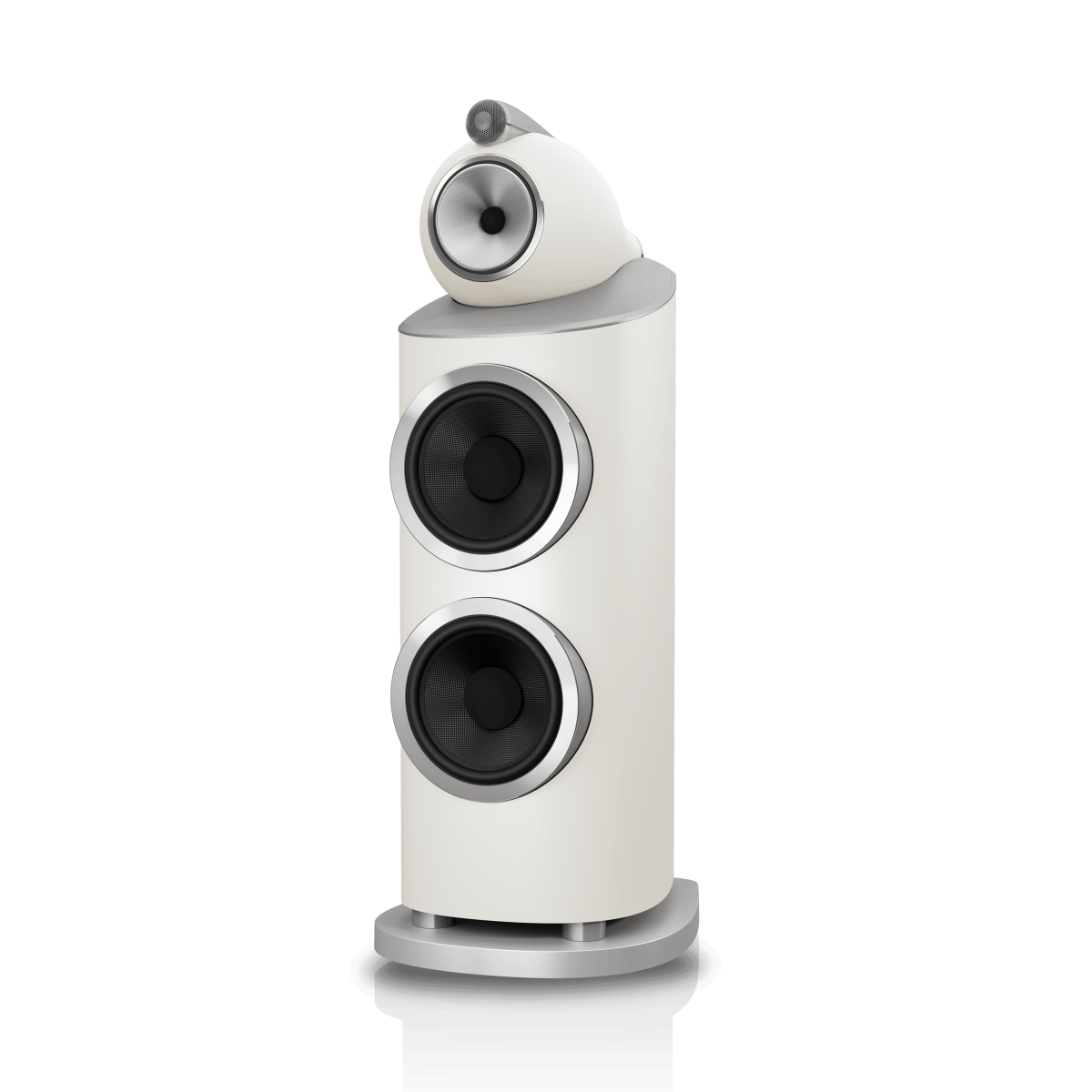

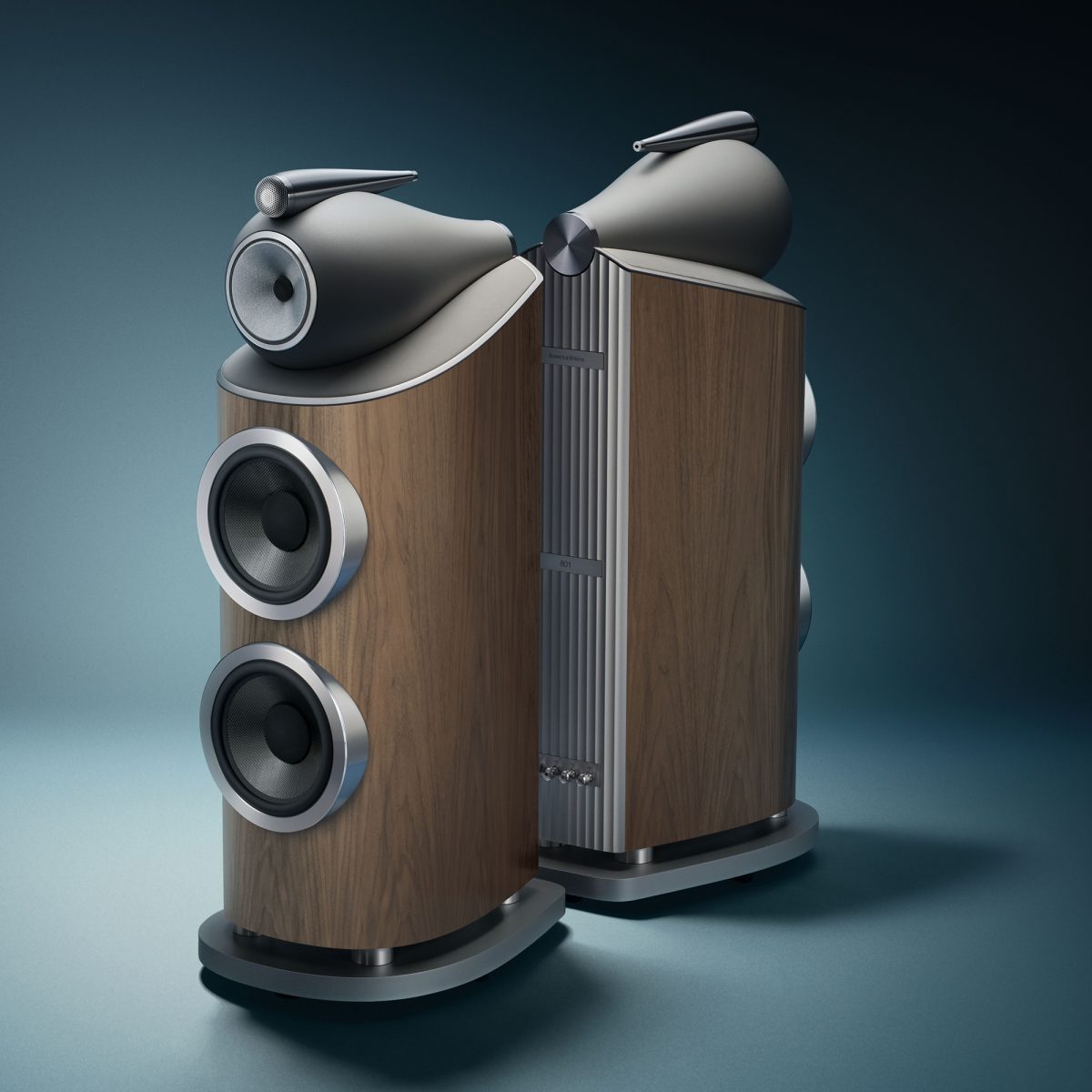

Available in Stealth Black, Warm White, Light Walnut and Dark Walnut, each finish is complemented by matching Leather by Connolly detailing, creating an unmistakable combination of performance and design. The result of six decades of obsessive loudspeaker development, the 801 D5 delivers Bowers & Wilkins' most realistic, accurate and revealing listening experience yet.
Others Replay Music, Ours Make Music
Musicians record with it because they trust it. Engineers mix with it because it reveals the truth. And listeners keep it for life because few loudspeakers come close. For generations, the 800 Series has been a benchmark in the world's most respected recording studios, helping shape some of the greatest music and film scores ever heard.
Ultimate Drive Unit Technology

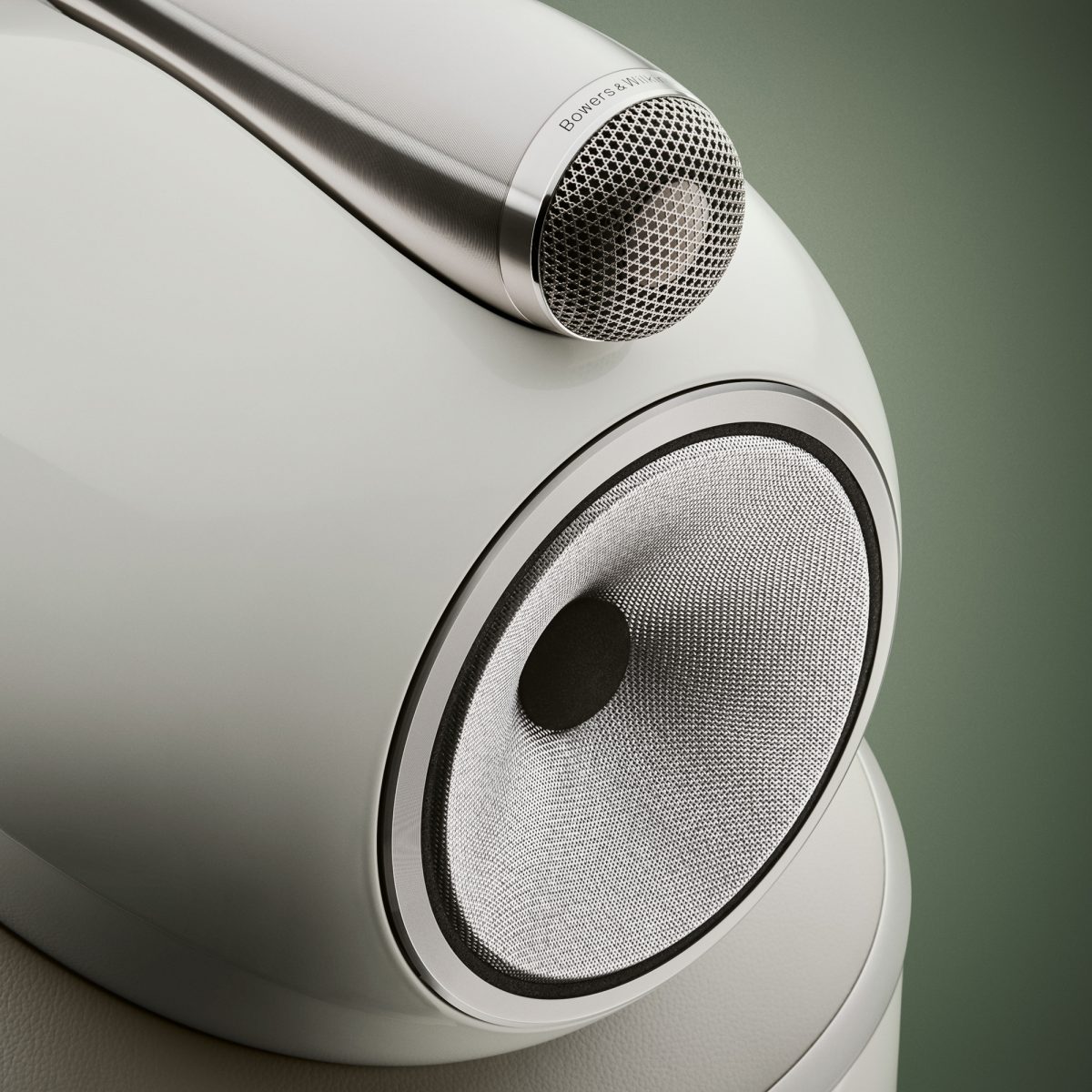

Combining Bowers & Wilkins' most advanced drive unit technologies, the 801 D5 delivers an exceptionally pure and revealing listening experience. Its Diamond Dome tweeter extends the break-up frequency to 70kHz, providing outstanding clarity, precision and openness, while the Continuumâ„¢ cone reproduces voices and instruments with remarkable detail and natural expression.
Optimised for Pure Performance
Every model in the new 800 Series Diamond range benefits from a suite of enhanced technologies designed to elevate performance. An upgraded Matrixâ„¢ cabinet construction helps suppress unwanted resonance and creates a more convincing soundstage, while aluminium Space Frame bracing and a new aluminium top section further increase rigidity and minimise coloration. The result is a sound that feels more spacious, immersive and controlled.
Crafted to Be Better by Design

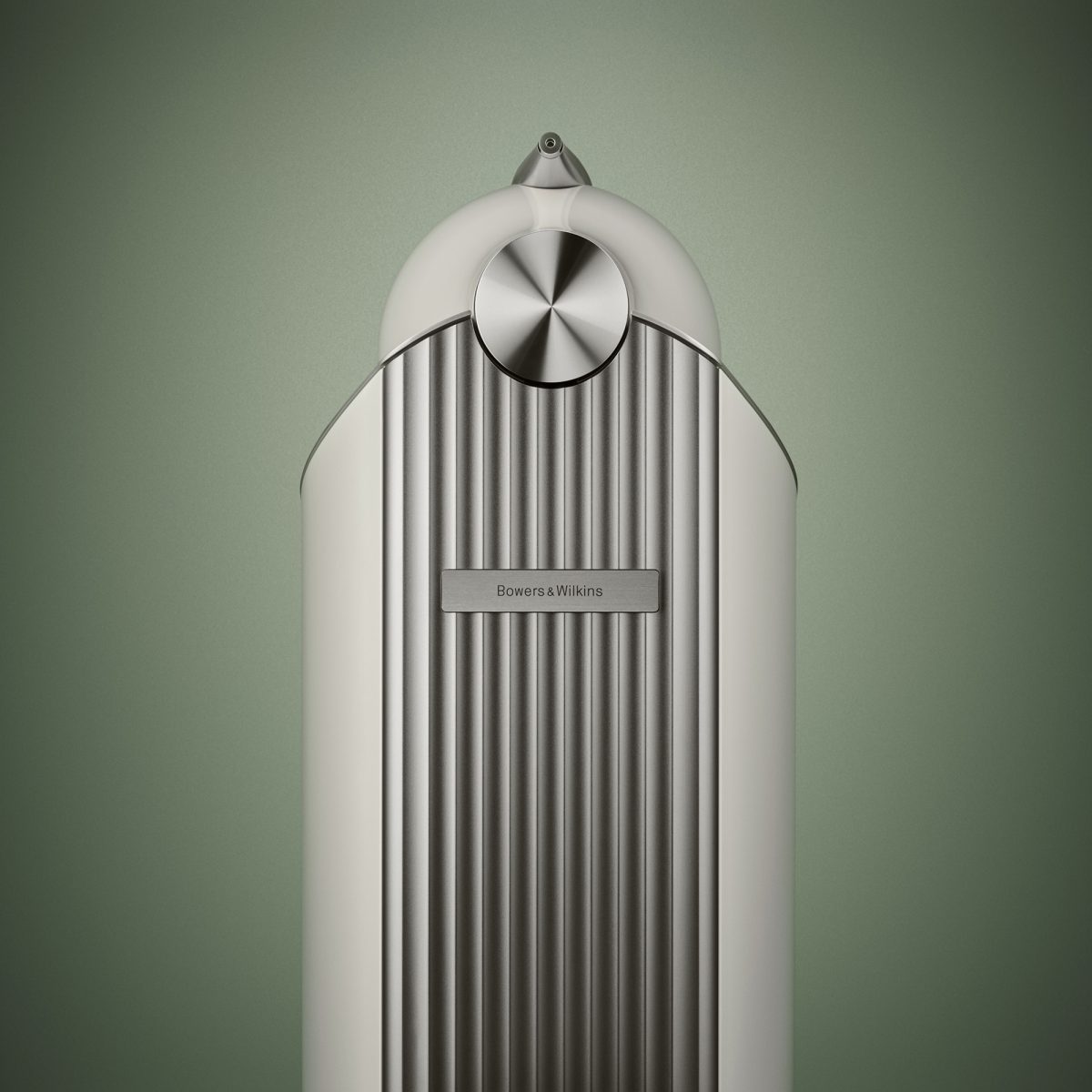

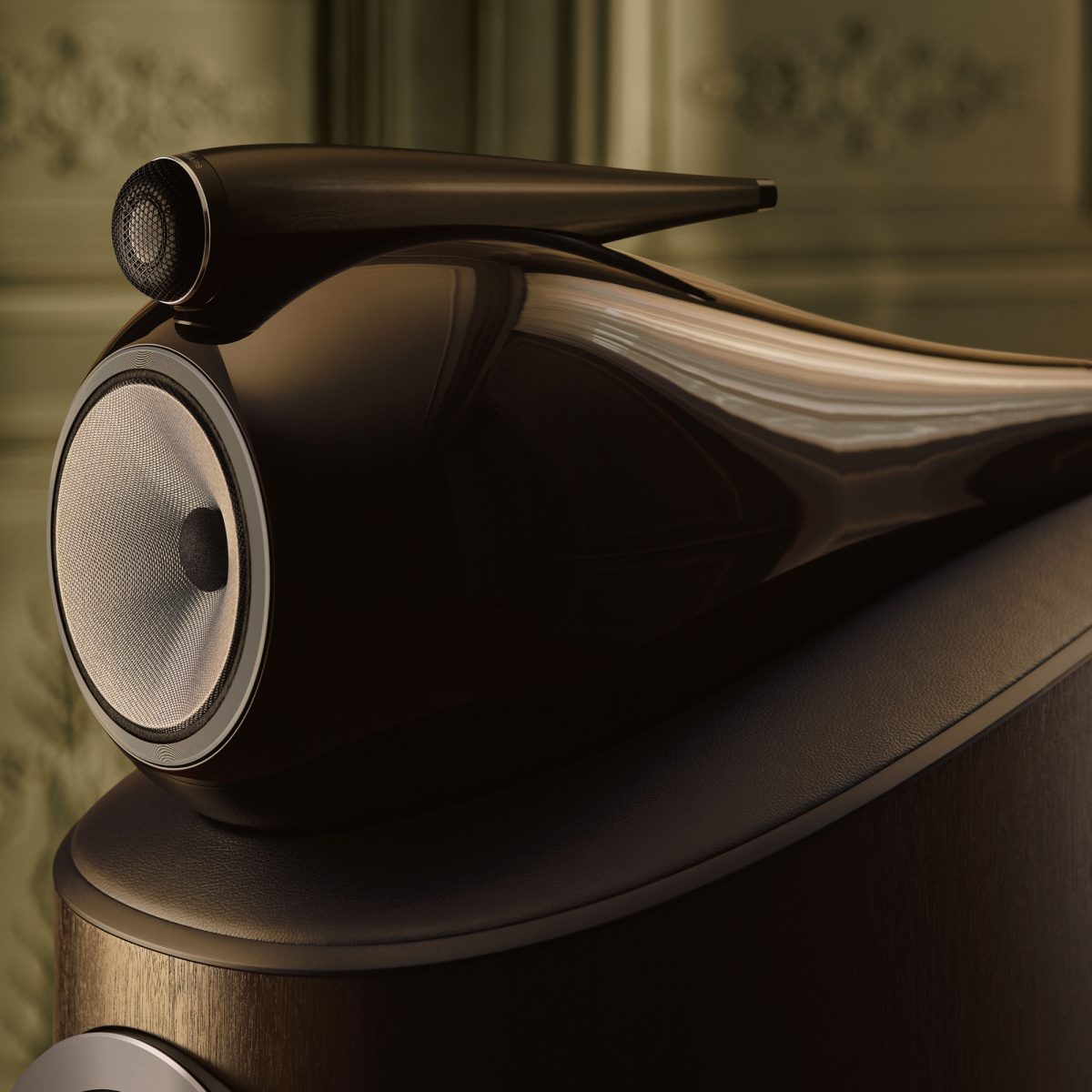

The distinctive form of the 800 Series is shaped by acoustic science, with every curve serving a purpose. Each cabinet is formed around a continuous curved structure and secured by a solid aluminium spine to help reduce unwanted cabinet reflections. Combined with the precision of the Tweeter-on-Top and Turbine Head designs, this carefully considered architecture ensures exceptional imaging, transparency and musical accuracy.
| Technical features | Diamond dome tweeter Solid body Tweeter-on-Top Continuumâ„¢ cone FST midrange Anti-Resonance plug Biomimetic Suspension Turbine Head Matrixâ„¢ Aerofoilâ„¢ base cones Flowportâ„¢ |
|---|---|
| Description | 3-way vented-box system |
| Drive units | 1x ø25mm (1in) Diamond dome high-frequency 1x ø150mm (6in) Continuum cone FST midrange 2x ø250mm (10in) Aerofoil™ bass |
| Frequency range | 6dB 13Hz to 35kHz |
| Frequency response | 15Hz to 28kHz (+/-3dB) |
| Sensitivity | 90dB |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 30Hz – 20kHz <0.3% 100Hz – 8kHz |
| Nominal impedance | 8Ω (minimum 3.0Ω) |
| Recommended amplifier power | 50W – 1000W into 8Ω on unclipped programme |
| Dimensions | Height: 1221mm (48.1 in) including tweeter and plinth Width: 372mm (14.6 in) cabinet only, 447mm (17.6in) including plinth Depth: 556mm (21.9in) including grille and terminals, 597mm (23.5in) including plinth |
| Net weight | 106.4kg (234.6lbs) |
| Cabinet finishes | Stealth Black Warm White Dark Walnut Light Walnut |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 2 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
