534
A Push-pull power amplifier with 50 watts per channel stereo utilising eight EL34 (four per channel) into 4, 8 and 16 ohms.
Or speak to a specialist, 01202 911886
0% Finance Available
Finance example
£1,139.80 initial 20% deposit then £189.97 per month for 24 months. Other finance terms available. Finance subject to status.
Spread the cost with interest-free monthly payments through Novuna Consumer Finance, subject to status and affordability. Available on qualifying purchases. Terms and conditions apply.
**Prices are excluding valves. Please call for prices**

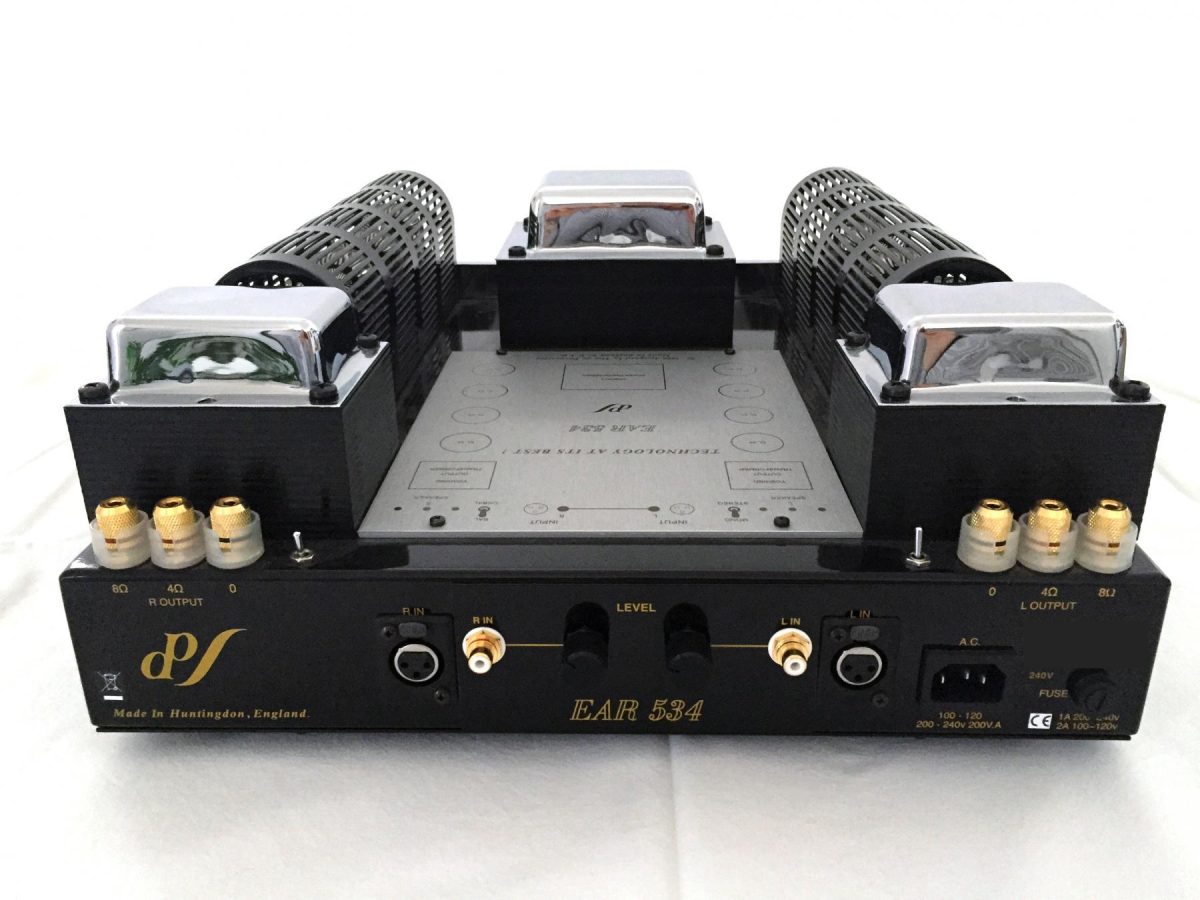

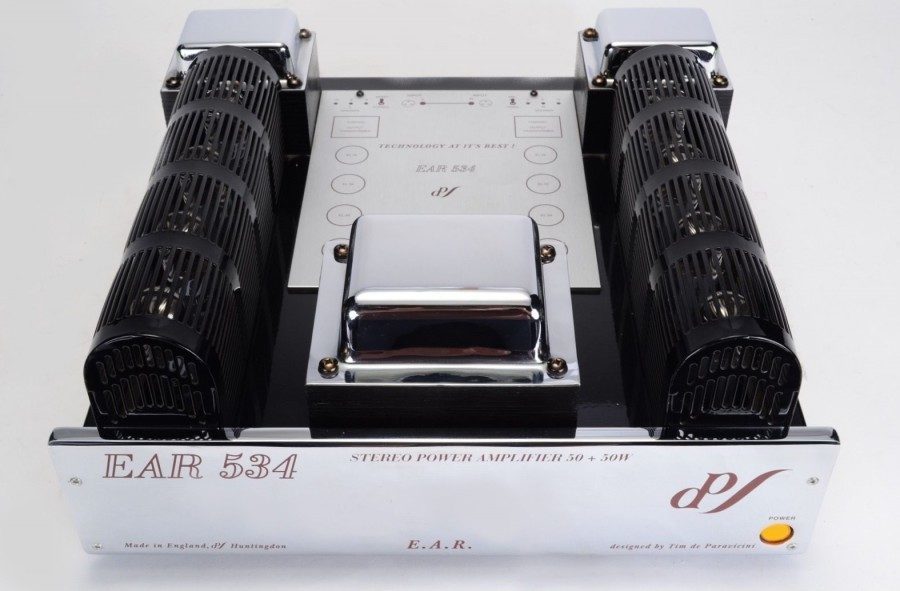

The EAR 534 is a 50W-per-channel push-pull stereo power amplifier using eight EL34 valves, four per channel. It supports 4, 8 and 16Ω loudspeaker loads and features self-biasing operation with both balanced and unbalanced inputs. Its distinctive chrome fascia complements the compact, professional design.
Designed for both demanding audiophile systems and professional studio monitoring, the EAR 534 combines push-pull output and driver stages with a high-quality, internally designed output transformer and low negative feedback.
The amplifier operates in pure Class A, delivering a smooth, controlled and highly transparent presentation. It can also be configured in bridged-mono mode, transforming the amplifier into a true monoblock for systems requiring greater output capability.
Long valve life and straightforward self-biasing help keep maintenance simple and replacement costs modest.
| Signal-to-noise ratio | 92dB |
|---|---|
| Output damping factor | 18 |
| I.M.D. | Less than 1% at any level from 10mW to 50 Watt |
| Power bandwidth | 15Hz – 40kHz at less than 3% THD |
| Power consumption | 260 watts total |
| Power output | 50 watts/channel (24Hz – 15kHz at 1% THD int |
| Weight | 20kg |
| Input impedance | 47k Ohms |
| Size | W 16” (405mm), D 16” (405mm), H 6” (150mm) |
| Valves list | 2 x ECC83, 2 x ECC85, 8 x EL34 |
| Input sensitivity | 1V |
| Delivery | UK delivery available |
|---|---|
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 3 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
