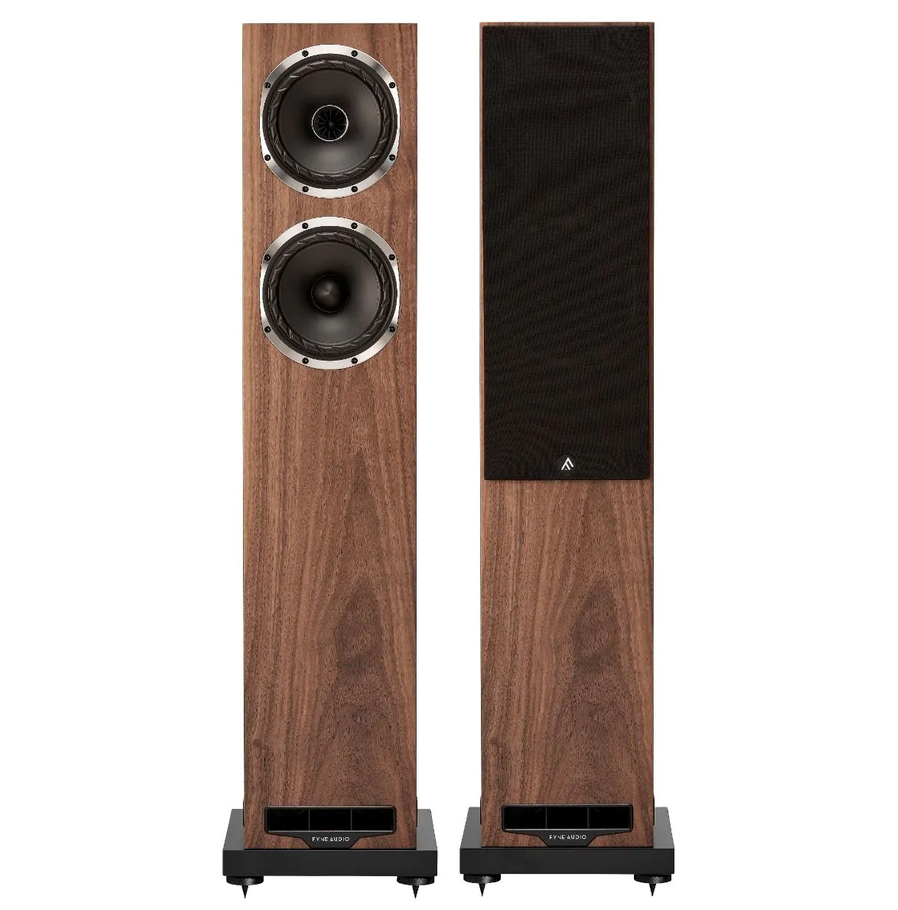

F501S
The Fyne Audio 501S centres its floorstanding design on a 150mm IsoFlare point-source driver with a 25mm magnesium dome tweeter, supported by a dedicated 150mm bass driver and BassTrax Tractrix Diffuser System. This spreads bass through 360 degrees, helping reduce room-placement constraints while maintaining precise imaging and even dispersion across the listening area.
The Fyne Audio 501S is a floorstanding loudspeaker with a 150mm (6”) IsoFlare point source driver, a 25mm magnesium dome tweeter and a dedicated 150mm bass driver. This three-driver design provides clarity, precise imaging, dynamic sound and fast transient response for music and home cinema systems.
Its integrated patented BassTrax Tractrix Diffuser System distributes bass uniformly through 360 degrees, helping to reduce room placement issues. The F501S also has a presence control switch for adjusting midrange detail. High-rigidity MDF construction is available with 2 real wood veneer finishes or piano gloss black.
IsoFlare technology uses a time-aligned point source driver to disperse sound evenly in all directions, maintaining a natural and balanced presentation from different listening positions. The F500S Series IsoFlare units incorporate a vented rear chamber to reduce resonance, while the lightweight magnesium diaphragm supports extended high frequencies and smoother midrange reproduction. Enhanced waveguide engineering improves off-axis performance, with soundstage depth, precise imaging and detailed audio for both music and home cinema.
| System Type | 2 ½ way, downwards firing port, with BassTrax Tractrix diffuser |
|---|---|
| Recommended amplifier power | 30W – 150W |
| Continuous power handling | 75W |
| Sensitivity (2.83 Volt @ 1m) | 90dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 36Hz - 34kHz |
| Drive unit complement | 1 x 150mm IsoFlare, bass / mid with 25mm magnesium dome compression tweeter. 1 x 150mm bass. |
| Crossover frequency | 250Hz & 1.7kHz |
| Crossover type | 2nd order low pass, 1st order high pass |
| System adjustments | Presence control +/- 3dB (2.5 – 5.0kHz) |
| Dimensions (HxWxD) | 984mm x 250mm x 317mm |
| Weight (Each) | 18.6kg |
| S-Trax Position (from cabinet front edge) | 44mm |
| SuperTrax Position (from cabinet front edge) | 20mm |
| Delivery | Free UK delivery, fully insured |
|---|---|
| Returns | 14-day returns on unopened accessories |
| Lead time | Agreed personally, finish and stock dependent |
| Warranty | 5 years warranty |
| Trade-in | Part exchange available (subject to conditions) |
| Payment | Apple Pay, Google Pay and all major cards |
